Disc micrometer 150-175 mm with non-rotating spindle analogue
€137.40
Available, delivery time: 1-3 workdays
Product information "Disc micrometer 150-175 mm with non-rotating spindle analogue"
Disc micrometer 150-175 mm with non-rotating spindle
- analogue, disc Ø 30 mm
- frame coated
- thimble chrome finished
- reading 0,01 mm
- with ratchet
- in case/box
Range 150 - 175 mm
| Accuracy: | 0,007 mm |
|---|---|
| Range: | 150 - 175 mm |
| Reading: | 0,01 mm |
| Type: | analogue, with disc Ø 30 mm, with ratchet |

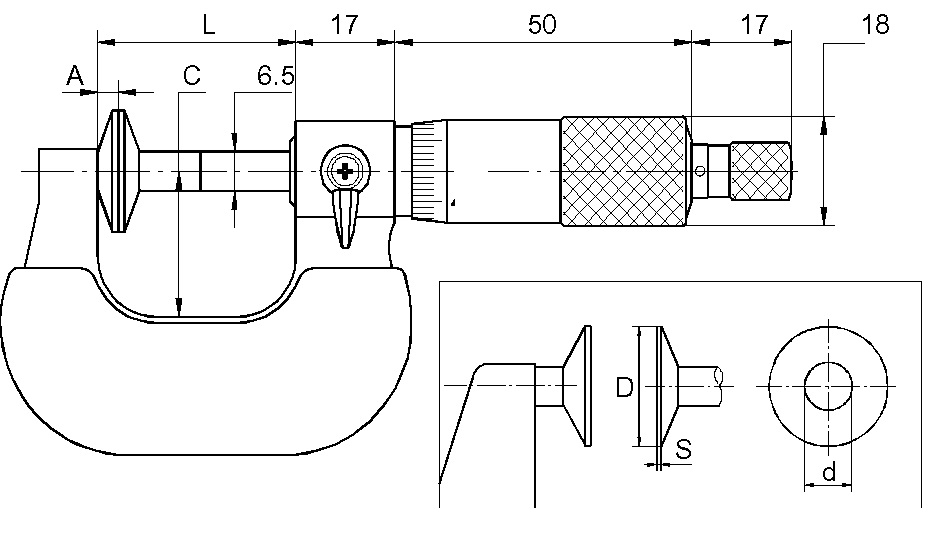

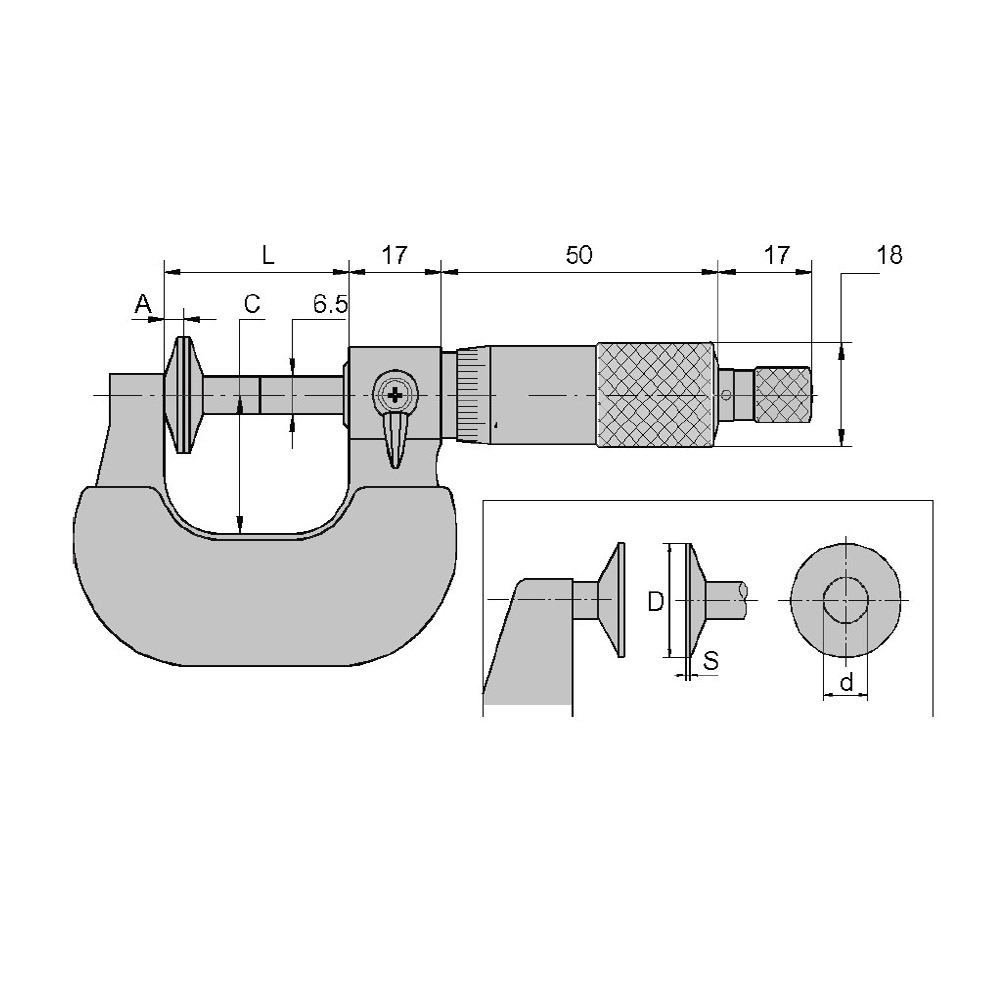

Technical Data
| Messbereich mm Range mm |
Messteller mm Disc mm |
Genauigkeit mm Accuracy mm |
A mm | C mm | L mm | d mm | S mm |
| 150 - 175 | 30 | 0,007 | 12 | 94 | 194 | 12 | 0,7 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Micrometer holder for micrometer until 300 mm - for micrometer until 300 mm - with adjustable angle and central clamp - heavy type - weight 2 kg
Certification disc micrometer > 100 - 200 mm - for analog and digital disc micrometer range > 100 - 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
