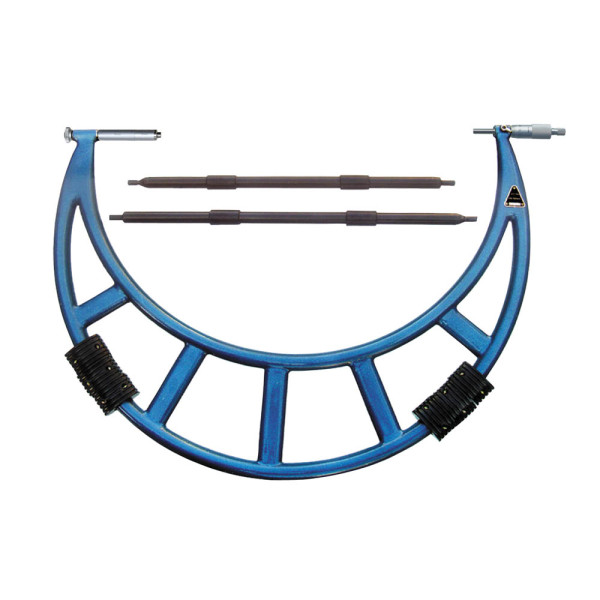

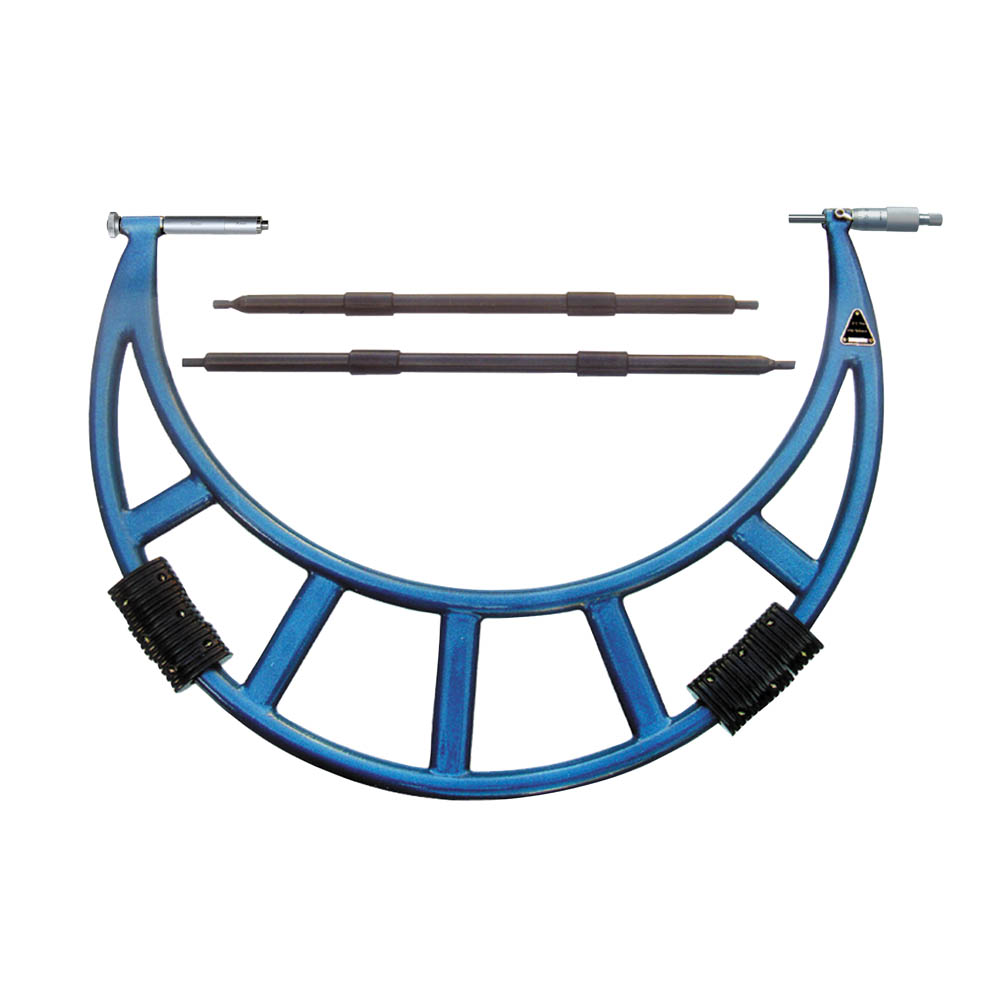

Micrometer 300 - 400 mm range with relocatable anvils
€249.00
Available, delivery time: 1-3 workdays
Product information "Micrometer 300 - 400 mm range with relocatable anvils"
Micrometer 300 - 400 mm with relocatable anvils
- with relocatable anvils
- carbide measuring faces
- spindle Ø 8,0 mm
- with 25 mm spindle, thread pitch 0,5 mm
- with ratchet and setting standard
- pipe combined frame, painted
- reading 0,01 mm
- accuracy manufacture standard
- in case/box (for transport only)
Range 300 - 400 mm
| Accuracy: | 0,011 mm |
|---|---|
| Range: | 300 - 400 mm |
| Reading: | 0,01 mm |
| Type: | analogue, with carbide measuring faces, with large measuring range, with ratchet |

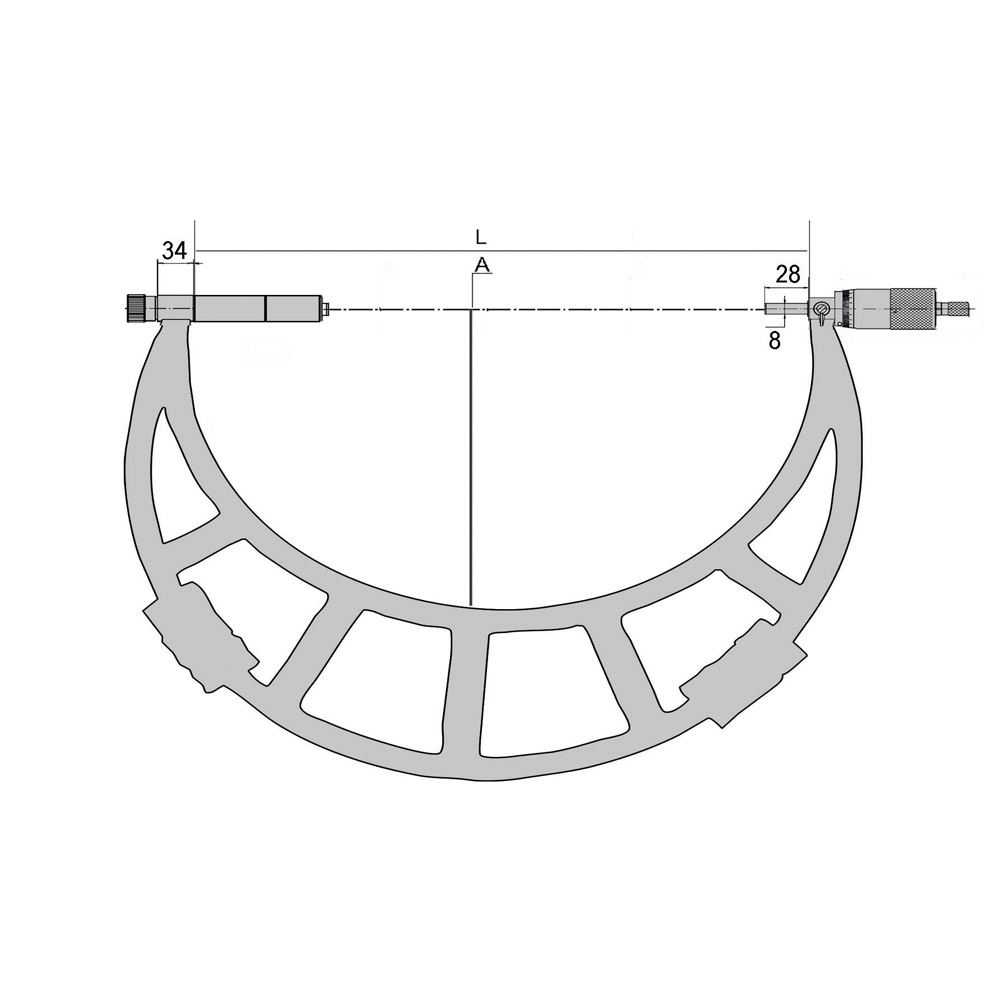

Technical Data
| Messbereich mm Range mm |
Amboss / Stk. Anvils / pcs. |
Einstellmaß mm Standard mm |
A mm | L mm | Genauigkeit mm Accuracy mm |
| 300 - 400 | 25 + 50 | 325 + 375 | 244 | 417 | 0,011 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Measuring anvil and distance piece - measuring anvil and distance piece 25 mm, 50 mm for micrometer with relocatable anvils - for range 300 - 1000 mm
Measuring anvil - measuring anvil for micrometer with relocatable anvils - for range 300 - 1000 mm
Certification for micrometer > 300 - 500 mm - for analog and digital micrometer range > 300 - 500 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
DAkkS certification for micrometer > 100 - 200 mm - for analog and digital micrometer range > 100 - 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
