Outside micrometer 0 - 25 mm DIN 863 with certification
€32.70*
Available, delivery time: 1-3 workdays
Product information "Outside micrometer 0 - 25 mm DIN 863 with certification"
Outside micrometer 0 - 25 mm DIN 863
- with certification
- with ratchet friction thimble
- with carbide measuring faces
- scale chrome finished
- spindle Ø 6,5 mm, thread pitch 0,5 mm
- scale 0,01 mm
- accuracy DIN 863
- in case/box
Range 0 - 25 mm
| Accuracy: | DIN 863 |
|---|---|
| Calibriation certificate: | with |
| Range: | 0 - 25 mm |
| Reading: | 0,01 mm |
| Type: | analogue |

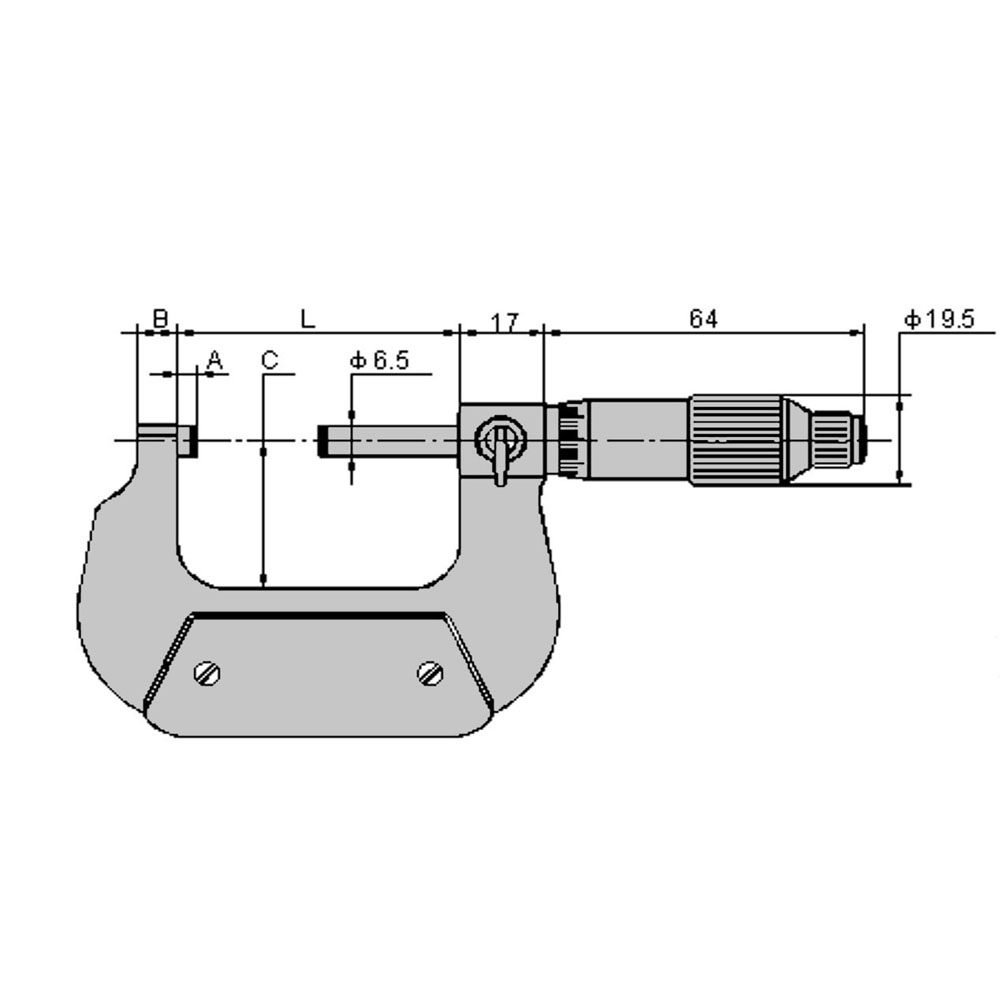

Technical Data
| Messbereich mm Range mm |
A mm | B mm | C mm | L mm |
| 0 - 25 | 3,5 | 6 | 24 | 32 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
