Digital caliper 0 - 200 mm with movable measuring jaw
€97.20
Delivery time upon request
Product information "Digital caliper 0 - 200 mm with movable measuring jaw"
Digital caliper 200 range with movable measuring jaw
- with moveable measuring jaw
- made of stainless steel, hardened
- with metal casing
- measuring system with 3 V
- with ON/OFF, ZERO, UNIT and HOLD button
- reading 0,01 mm or 0,0005"
- accuracy 0,05 mm
- data output (RB 5)
- in case/box
Range 0 - 200 mm
Moveable jaw length: 120 mm
| Accuracy: | 0,05 mm |
|---|---|
| Data output: | RB 5 |
| Range: | 0 - 200 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel, hardened, Measuring system with 3 V, with metal casing, with movable measuring jaw |

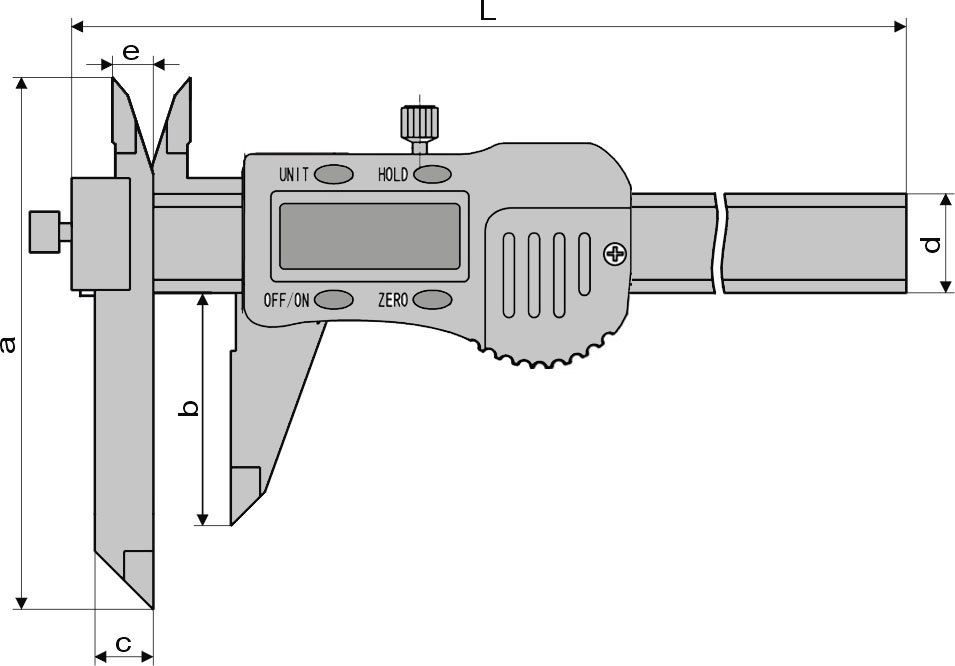

Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |
a mm | b mm | c mm | e mm |
| 0 - 200 | 0,05 | 120 | 40 | 10 | 7 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Connection cable for devices with RB 5 data output - length about 100 cm- connection cable RB 5 / RB 5 for connecting the measuring device to the USB interface no. 220.250.2
