Digital vernier caliper with long measuring jaws 0 - 200 mm 3V
€92.40
Available, delivery time: 1-3 workdays
Product information "Digital vernier caliper with long measuring jaws 0 - 200 mm 3V"
Digital vernier caliper 0 - 200 mm with long measuring jaws
- measuring system with 3 V
- made of stainless steel, hardened
- 4- way measurement
- with metal casing
- reading 0,01 mm or 0,0005"
- accuracy 0,03 mm
- with ON/OFF, ZERO, UNIT and HOLD buttons
- data output (RB 5)
- in case/box
Range 0 - 200 mm
Jaw length 80 mm
| Accuracy: | 0,03 mm |
|---|---|
| Data output: | RB 5 |
| Range: | 0 - 200 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel, hardened, Measuring system with 3 V, with long measuring jaws, with metal casing |

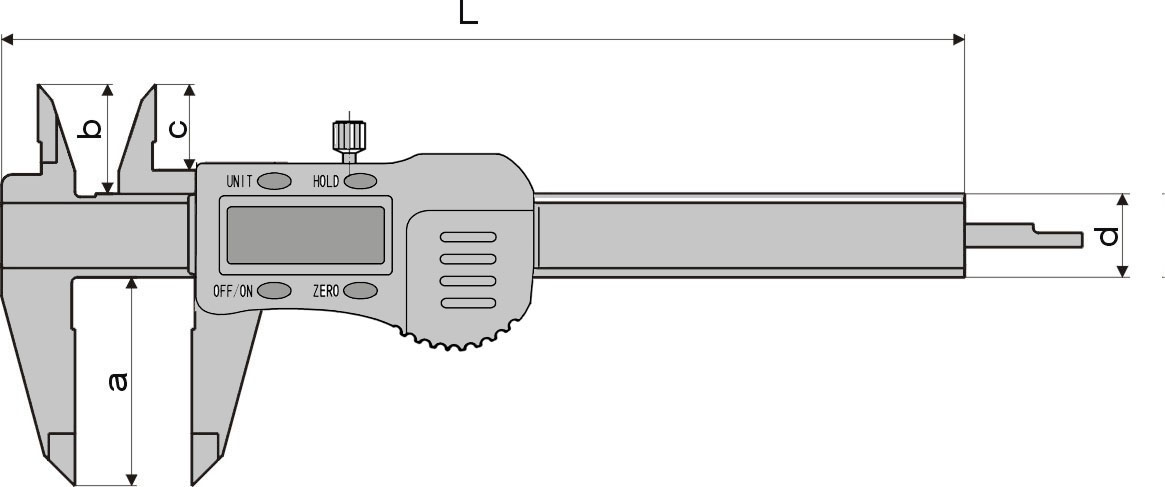

Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |
a mm | b mm | d mm |
| 200 | 0,03 | 80 | 28 | 20 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Connection cable for devices with RB 5 data output - length about 100 cm- connection cable RB 5 / RB 5 for connecting the measuring device to the USB interface no. 220.250.2
