Digital pistol three point internal gauge 150 - 175 mm
€852.00*
Available, delivery time: 1-3 workdays
Product information "Digital pistol three point internal gauge 150 - 175 mm"
Digital pistol three point internal gauge
- 1 piece
- range 150 - 175 mm
- for blind hole
- display rotate 90°, with on/off/set, hold, mm/inch/Mode button
- with bluetooth data output
- in case/box
Attention:
Setting standard an extension are not included!
| Accuracy: | 0,007 mm |
|---|---|
| Data output: | Bluetooth |
| Range: | 150 - 175 mm |
| Reading: | 0,001 mm |
| Set: | 1- teilig |
| Type: | digital |
| usable for measuring of: | blind hole |

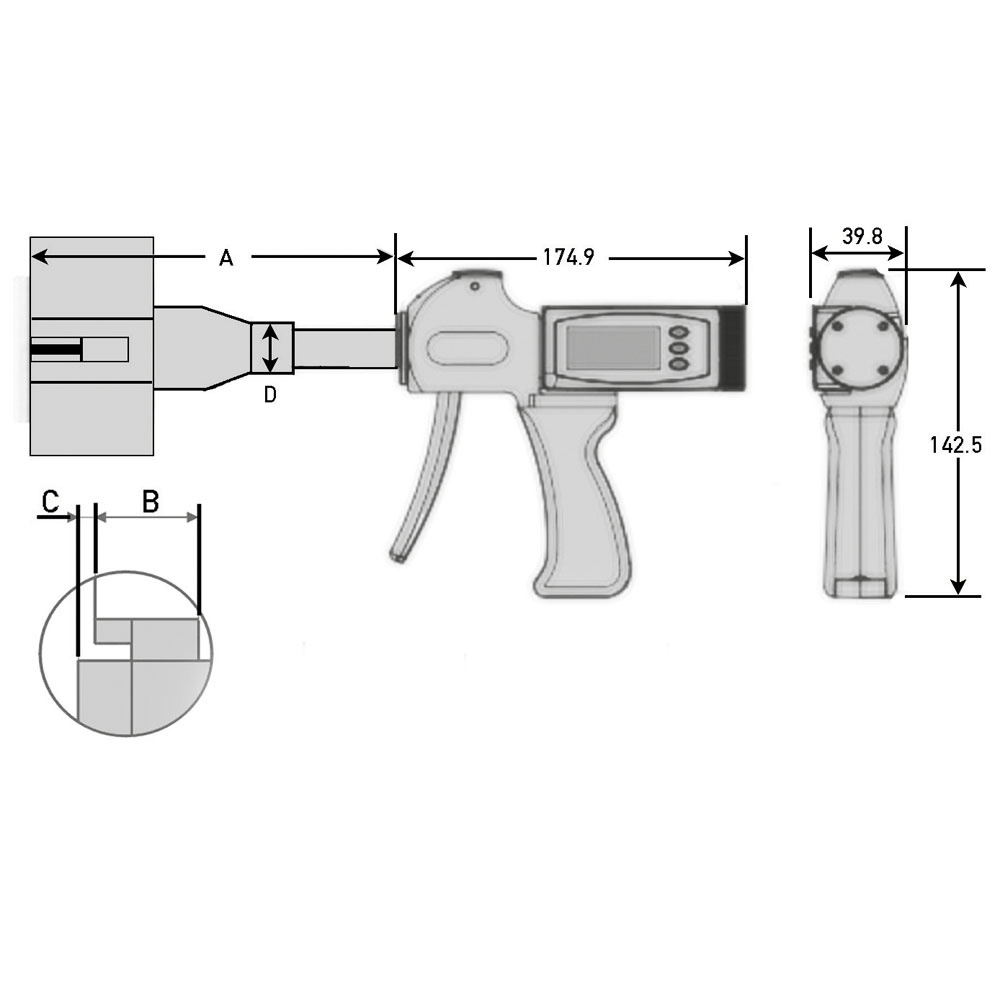

Technical Data
| Messbereich mm Range mm |
Messköpfe Measuring heads |
Teil-Messbereiche mm Part range mm |
C mm |
A mm |
B mm |
D mm |
Ablesung mm Reading mm |
Genauigkeit* mm Accuracy* mm |
| 150 - 175 mm | 1 | 150 - 175 | 0,5 | 165 | 20,0 | 25,5 | 0,001 | 0,007 |
| * Bei vollanliegenden Messflächen! * At full contact of the measuring faces! |
||||||||
