Digital pistol three point internal gauge 175 - 200 mm
€852.00*
Available, delivery time: 1-3 workdays
Product information "Digital pistol three point internal gauge 175 - 200 mm"
Digital pistol three point internal gauge
- 1 piece
- range 175 - 200 mm
- for blind hole
- display rotate 90°, with on/off/set, hold, mm/inch/Mode button
- with bluetooth data output
- in case/box
Attention:
Setting standard an extension are not included!
| Accuracy: | 0,007 mm |
|---|---|
| Data output: | Bluetooth |
| Range: | 175 - 200 mm |
| Reading: | 0,001 mm |
| Set: | 1- teilig |
| Type: | digital |
| usable for measuring of: | blind hole |

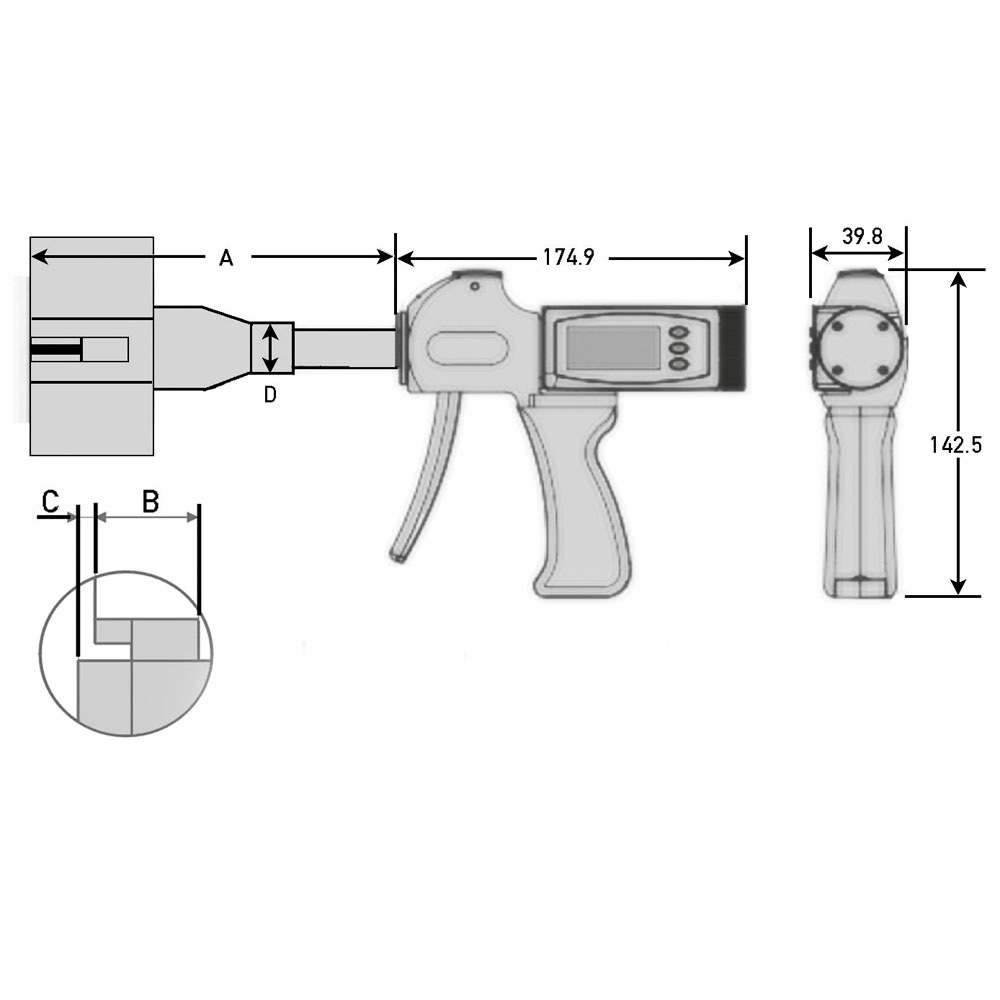

Technical Data
| Messbereich mm Range mm |
Messköpfe Measuring heads |
Teil-Messbereiche mm Part range mm |
C mm |
A mm |
B mm |
D mm |
Ablesung mm Reading mm |
Genauigkeit* mm Accuracy* mm |
| 175 - 200 mm | 1 | 175 - 200 | 0,5 | 165 | 20,0 | 25,5 | 0,001 | 0,007 |
| * Bei vollanliegenden Messflächen! * At full contact of the measuring faces! |
||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
