Digital three point internal micrometer 30 - 50 mm IP 65 DIN 863
€522.00*
Available, delivery time: 1-3 workdays
Product information "Digital three point internal micrometer 30 - 50 mm IP 65 DIN 863"
Digital three point internal micrometer 30 - 50 mm IP 65
- one digital display with two measuring heads
- with setting ring 40 mm and extension L 152,4 x Ø 23,5
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- suitable for measuring blind holes
- in case/box
Range 30 - 50 mm
| Accuracy: | 0,005 mm |
|---|---|
| Data output: | RB 6 |
| Range: | 30 - 40 mm, 40 - 50 mm |
| Reading: | 0,001 mm |
| Set: | 2 pcs. |
| Type: | IP 65, digital |
| usable for measuring of: | blind hole |

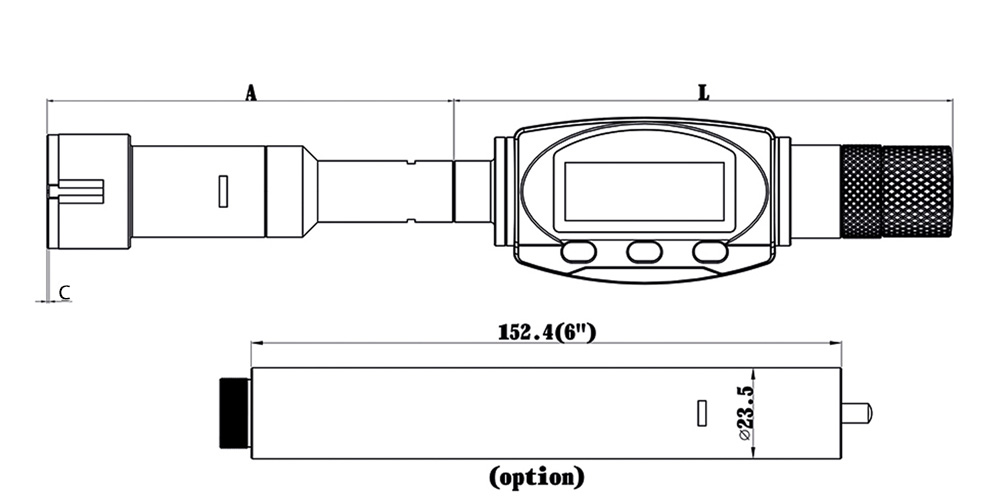

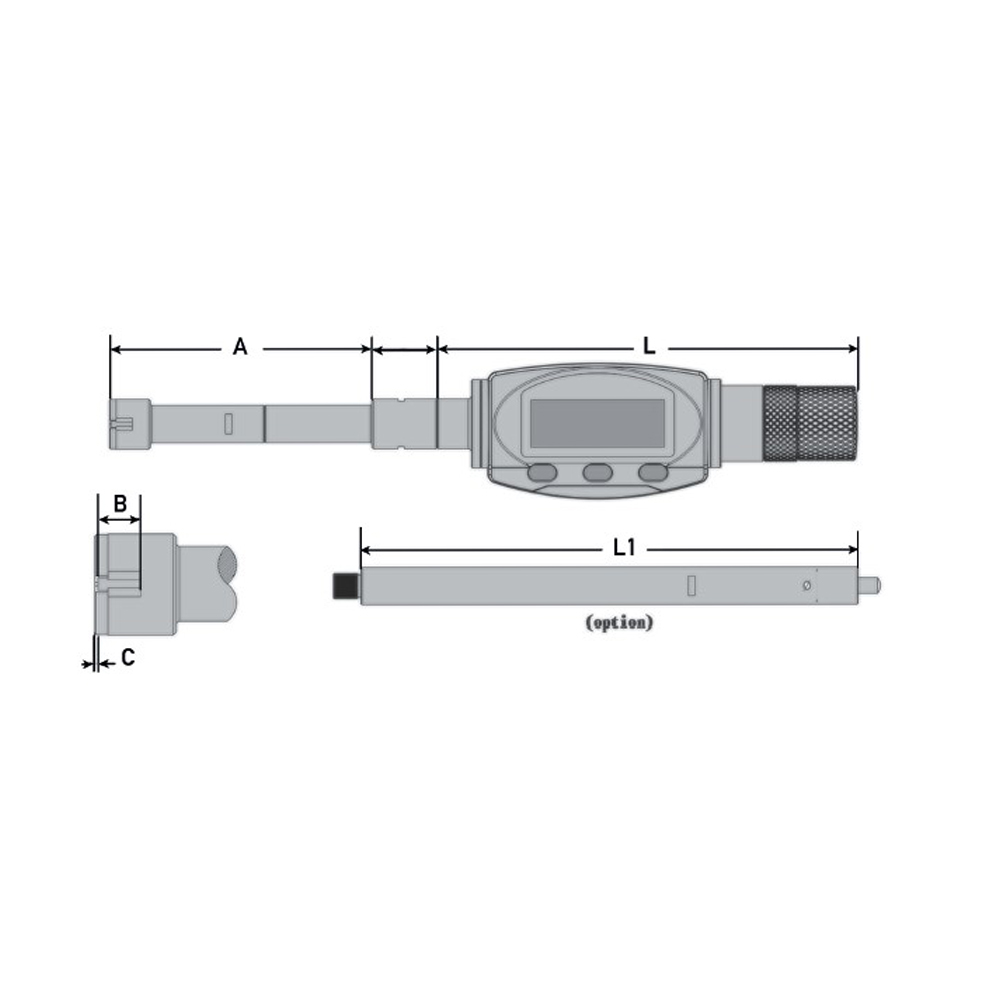

Technical Data
| Messbereich mm Range mm |
Einstellring mm Setting ring mm |
Verlängerung mm Extension mm |
A mm |
C mm |
L mm |
Ablesung mm Reading mm |
Genauigkeit* µm Accuracy* µm |
| 30 - 40 | 40 | 152,4 x Ø 23,5 | 105 | 0,5 | 128,8 | 0,001 | 0,005 |
| 40 - 50 | 105 | 0,5 | 128,8 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
