Digital three point internal micrometer 10-12 mm range
€234.00*
Available, delivery time: 1-3 workdays
Product information "Digital three point internal micrometer 10-12 mm range"
Digital three point internal micrometer 10-12 mm
- for blind hole
- display with on/off/set, hold, mm/inch button
- with data output RB 6
- reading 0,001 mm
- accuracy 0,004 mm (at full contact of the measuring faces!)
Attention: Setting standard and extension not included!
Range 10 - 12 mm
| Accuracy: | 0,004 mm |
|---|---|
| Data output: | RB 6 |
| Range: | 10 - 12 mm |
| Reading: | 0,001 mm |
| Type: | digital, without setting gauge and extension (accesories) |
| usable for measuring of: | blind hole |

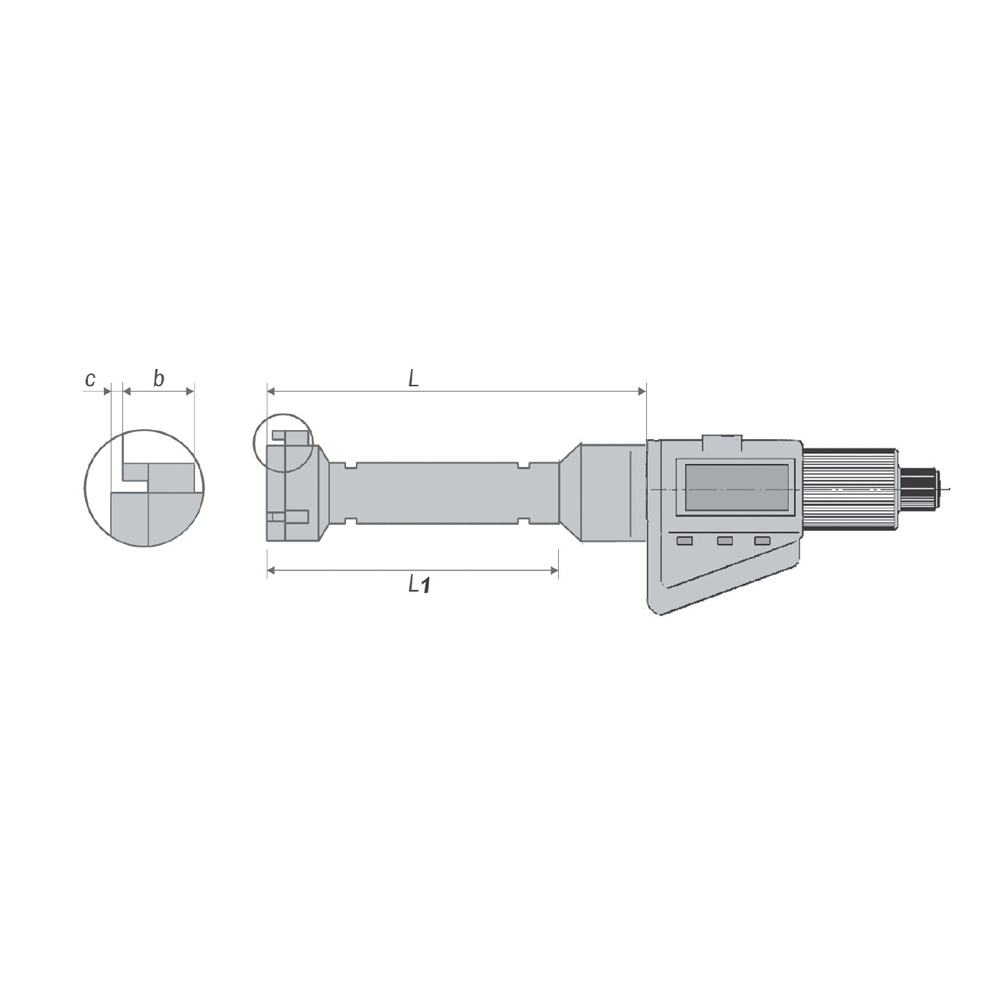

Technical Data
| Messbereich mm Range mm |
c mm | b mm | L1 mm | L mm | Ablesung mm Reading mm |
Genauigkeit* mm Accuracy* mm |
| 10 - 12 | 1,0 | 2,5 | 45 | - | 0,001 | 0,004 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | ||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification threepoint internal micrometer until 12 mm - for analog and digital threepoint internal micrometer until range 12 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Case for Three point internal micrometer 6-12 mm - suitable for digital three point internal micrometer order No. 312.210 / 312.211 / 312.212
USB interface for measuring instruments with ABS-System - "E" english data format (decimal separator ".")- PC connection interface via USB - with connecting cable to the PC, length about 95 cm and connecting cable RB 6 to the measuring instrument, length about 100 cm - measuring value can be transfered directly with the USB interface to the PC and saved as text or excel table- data entry by enter key or foot switch ( connector Ø 3,5 mm)
Bluetooth data transmission device for measuring instruments - for digital measuring instruments with RB 6 data output- connection with PC with bluetooth device- small dimensions- 10 meter transmission distance- data transmission with sound acoustic confirmation Usable for Order-No.:216.225 - 216.227219.096 - 219.098301.021 - 301.035302.074 - 302.084312.210 - 312.222
Setting ring gauge Ø 10 mm DIN 2250 C - hardened ground and lapped- DIN 2250 form C- accuracy DIN 286, JS 3 Size : Ø 10 mm
Setting ring gauge Ø 10 mm with certificate - size: Ø 10 mm - DIN 2250 Form C - accuracy DIN 286, JS 3 - hardened ground and lapped - with certification according to VDI/VDE/DGQ 2618/17 DIN 3650
