Digital three point internal micrometer 25-30 mm range
€237.00*
Available, delivery time: 1-3 workdays
Product information "Digital three point internal micrometer 25-30 mm range"

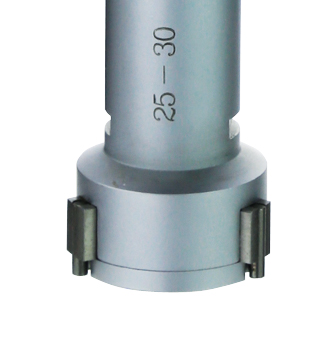

Digital three point internal micrometer 25-30 mm
- for blind hole
- with carbide measuring faces
- display with on/off/set, hold, mm/inch button
- with data output RB 6
- reading 0,001 mm
- accuracy 0,005 mm (at full contact of the measuring faces!)
Attention: Setting standard and extension not included!
Range 25 - 30 mm
| Accuracy: | 0,005 mm |
|---|---|
| Data output: | RB 6 |
| Range: | 25 - 30 mm |
| Reading: | 0,001 mm |
| Type: | digital, with carbide measuring faces, without setting gauge and extension (accesories) |
| usable for measuring of: | blind hole |

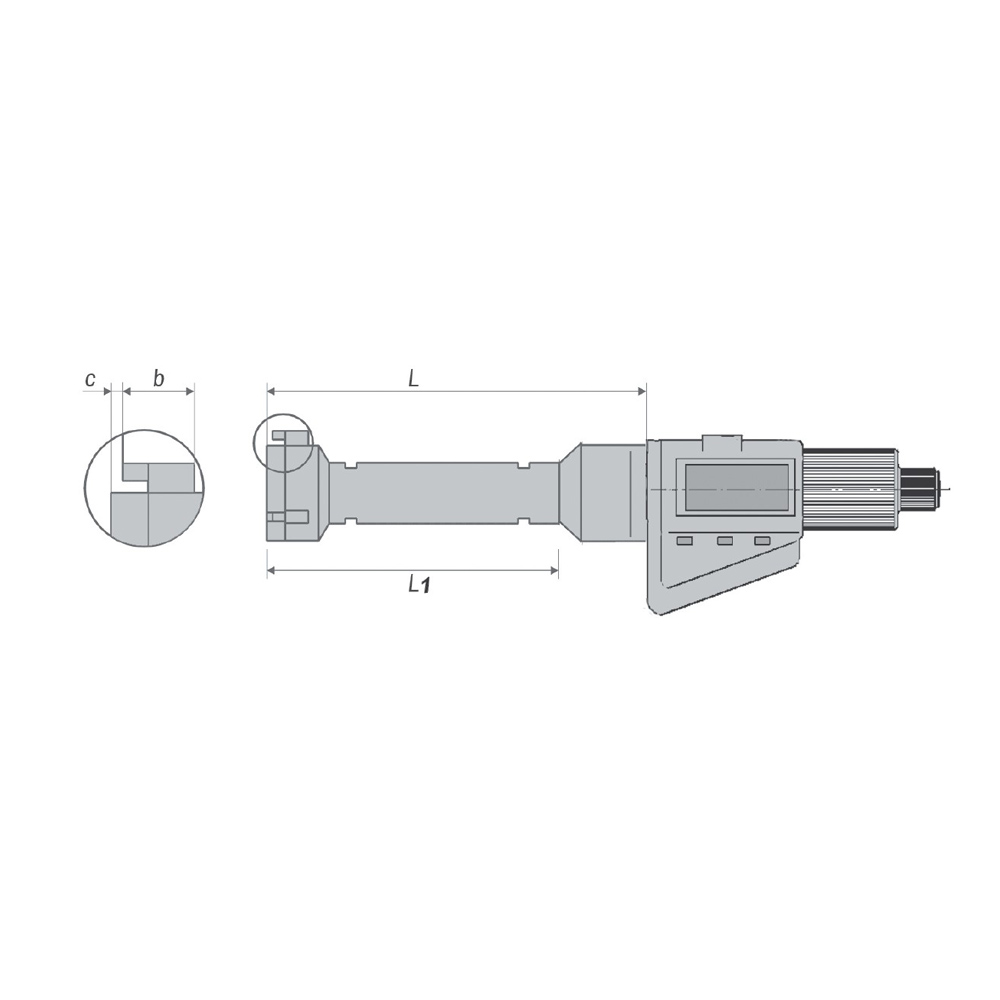

Technical Data
| Messbereich mm Range mm |
c mm | b mm | L1 mm | L mm | Ablesung mm Reading mm |
Genauigkeit* mm Accuracy* mm |
| 25 - 30 | 0,4 | 9,5 | - | 70 | 0,001 | 0,005 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | ||||||
