Digital three point internal micrometer 75-88 mm range
€318.00*
Available, delivery time: 1-3 workdays
Product information "Digital three point internal micrometer 75-88 mm range"
Digital three point internal micrometer 75-88 mm
- for blind hole
- with carbide measuring faces
- display with on/off/set, hold, mm/inch button
- with data output RB 6
- reading 0,001 mm
- accuracy 0,005 mm (at full contact of the measuring faces!)
Attention: Setting standard and extension not included!
Range 75 - 88 mm
| Accuracy: | 0,005 mm |
|---|---|
| Data output: | RB 6 |
| Range: | 75 - 88 mm |
| Reading: | 0,001 mm |
| Type: | digital, with carbide measuring faces, without setting gauge and extension (accesories) |
| usable for measuring of: | blind hole |

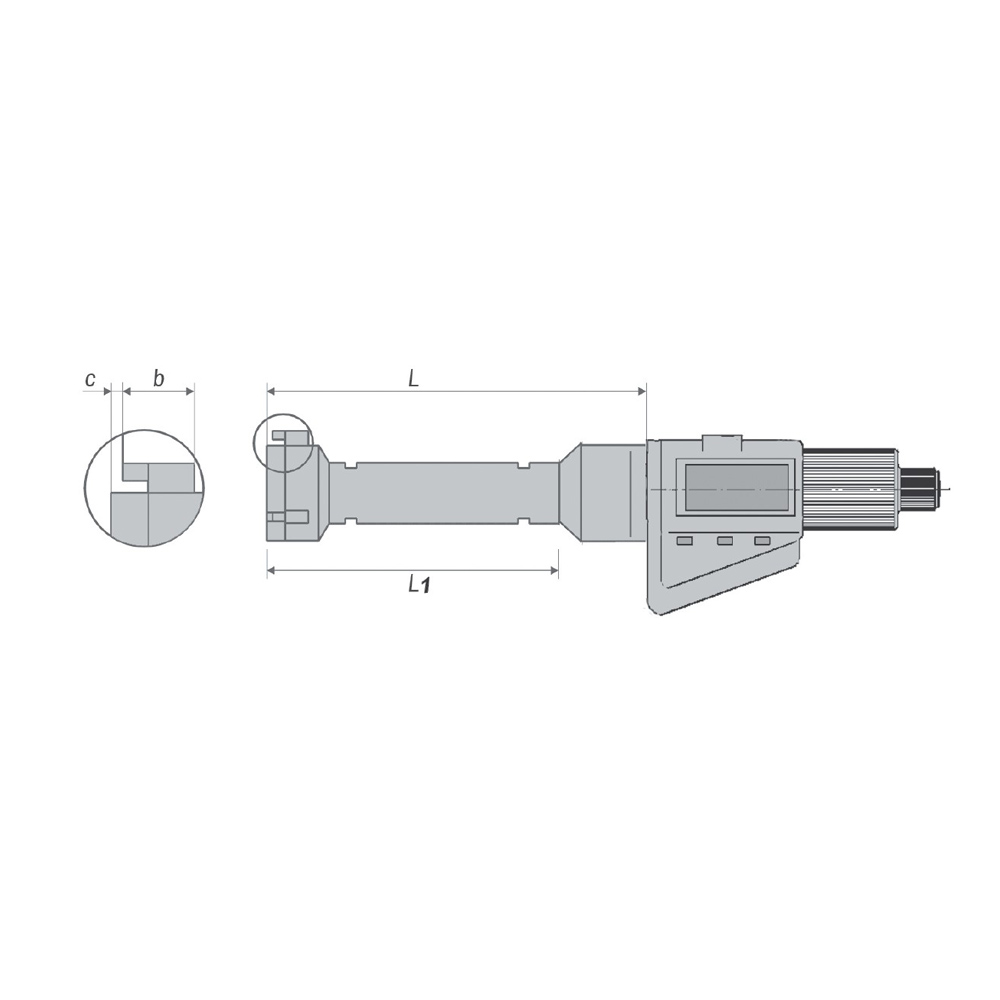

Technical Data
| Messbereich mm Range mm |
c mm | b mm | L1 mm | L mm | Ablesung mm Reading mm |
Genauigkeit* mm Accuracy* mm |
| 75 - 88 | 0,5 | 17 | - | 80 | 0,001 | 0,005 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | ||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
