3-point internal micrometer set 12 - 20 mm 2 pcs. DIN 863
€297.00*
€353.43 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
312.485
Customs tariff number
9017 3000
European Article Number
4054469182261
Weight
1,3 kg
Stock:
5
Related links:
Request Item

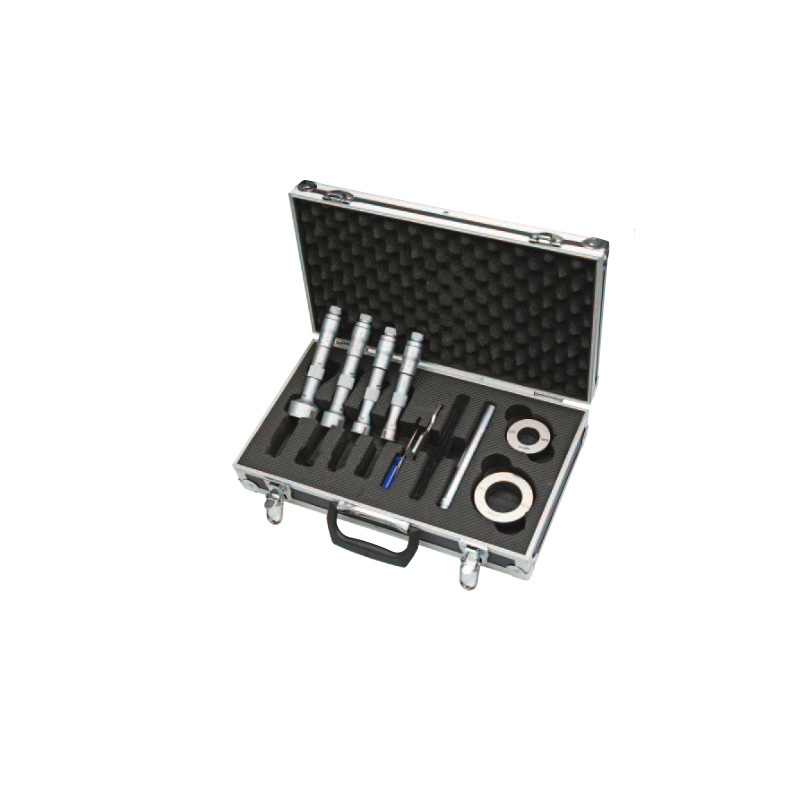

Product information "3-point internal micrometer set 12 - 20 mm 2 pcs. DIN 863"
3-point internal micrometer set 12 - 20 mm 2 pcs.
- Set with 2 micrometer, incl. setting ring 16 mm and extension 150 x Ø 11,8 mm
- for blind hole measuring
- satin chrome finished
- in case/box
| Accuracy: | 0,005 mm |
|---|---|
| Range: | 12 - 16 mm, 16 - 20 mm |
| Reading: | 0,001 mm |
| Set: | 2 pcs. |
| Type: | analogue, with carbide measuring faces, with setting gauge and extension |
| usable for measuring of: | blind hole |

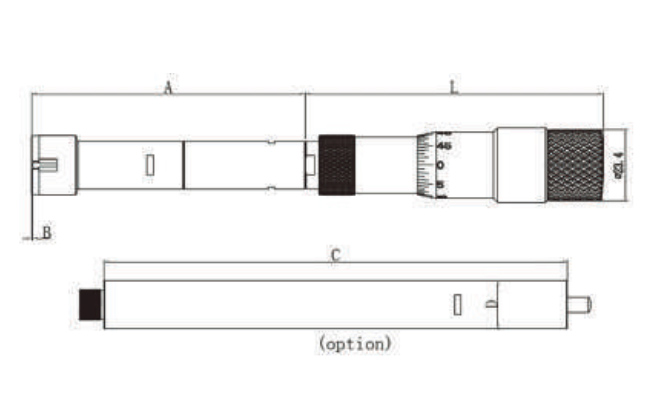

Technical Data
| Messbereich mm Range mm |
Einstellring mm Standard mm |
Verlängerung mm Extension mm |
Anzahl Pieces |
Ablesung mm Reading mm |
Genauigkeit* mm Accuracy* mm |
| 12 - 20 | 16 | 150 x Ø 11,8 | 2 | 0,001 | 0,005 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Skip product gallery
Accessories
Certification for threepoint internal micrometer set until 20 mm
€56.60*
Certification threepoint internal micrometer set until 20 mm
- for analog and digital threepoint internal micrometer sets range 12 - 20 mm- for sets with 2 threepoint micrometers and 1 setting ring- the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Stock: 0
