Vernier caliper 150 mm for left hand DIN 862
€25.56*
Available, delivery time: 1-3 workdays
Product information "Vernier caliper 150 mm for left hand DIN 862"
Vernier caliper 150 mm range for left hand
- made of stainless steel, with screw lock, DIN 862
- satin chrome finished, hardened
- usable to 4-way measurement
- backside with screw table
- in case/box
Range 150 mm
| Nonius above mm: | 1/1000" |
|---|---|
| Nonius below mm: | 1/50 - 49 |
| Range: | 0 - 150 mm |
| Type: | analogue, for left hand, made of stainless steel |
| to adjust: | with set screw |

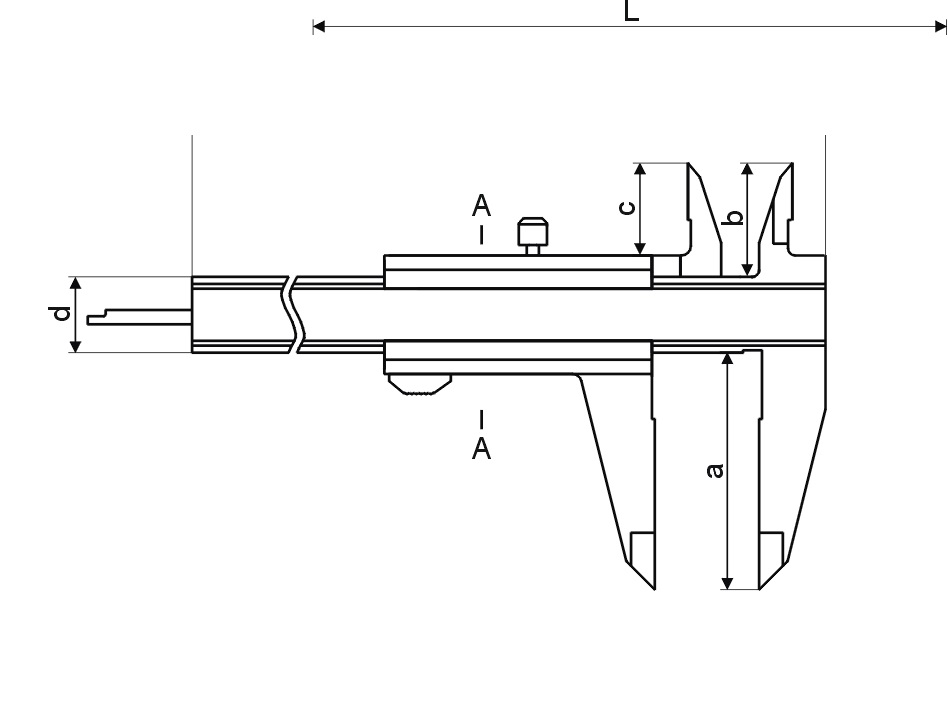

Technical Data
| Messbereich mm Range mm |
Nonius unten mm Nonius below mm |
Nonius oben mm Nonius above mm |
a mm | b mm | d mm |
| 150 | 1/50-49 | 1/1000" | 40 | 17 | 16 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
