Height measuring and marking device 600 mm range | DIN 862
Product number:
216-7640
Customs tariff number
90173000
European Article Number
6971570717640
Weight
8,8 kg
Stock:
0
Related links:
Request Item
Product information "Height measuring and marking device 600 mm range | DIN 862"
Height measuring and marking device 600 mm range
- - accuracy according to DIN 862
- - made of stainless steel
- - with fine adjustment
- - carbide-tipped scriber
- - scale and nonius satin chrome finished
- - sturdy cast iron base, lacquered and lapped bottom working face
- - with inspection report
- - in plastic case

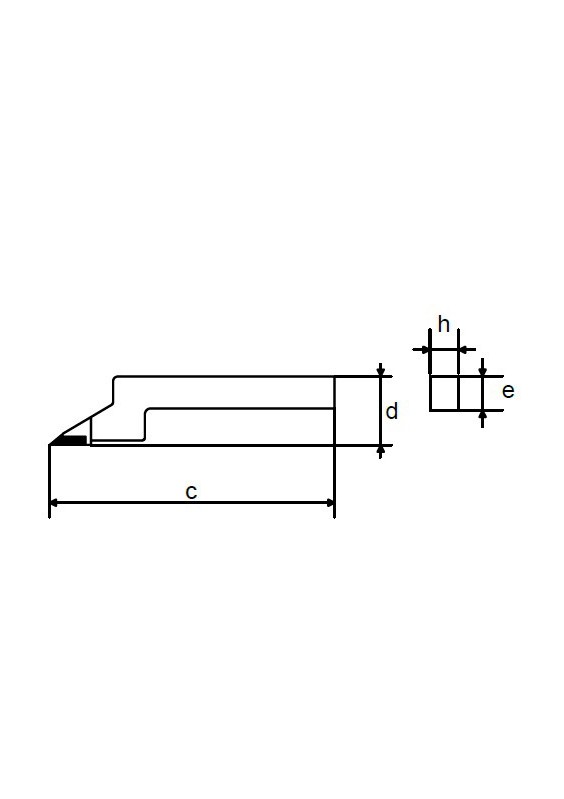

Technical Data
| Messbereich
Range |
Ablesung Reading |
Genauigkeit Accuracy |
c mm |
d mm |
e mm |
h mm |
| 0-600 mm | 0,05 mm | 0,10 mm | 105 | 25 | 12 | 10 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
