Outside micrometer 100 - 125 mm range | DIN 863
Product number:
217-5448
Customs tariff number
90173000
European Article Number
6971570715448
Weight
0,96 kg
Stock:
0
Related links:
Request Item
Product information "Outside micrometer 100 - 125 mm range | DIN 863"
Outside micrometer 100 - 125 mm range
- - accuracy according to DIN 863
- - with ratchet friction thimble
- - carbide measuring face
- - frame painted, scale chrome finished
- - including setting gauge
- - with inspection certificate
- - in plastic box

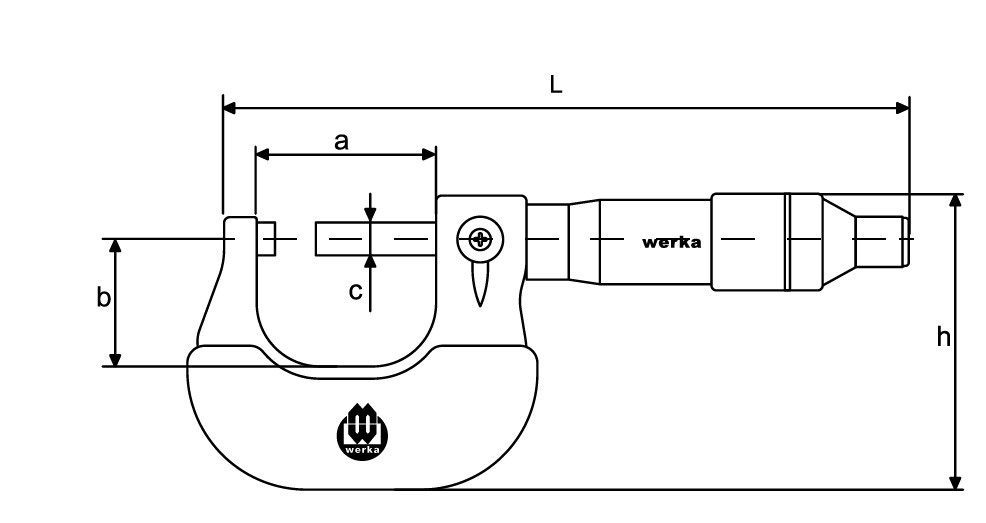

Technical Data
| Messbereich
Range |
Ablesung Reading |
Genauigkeit Accuracy |
L mm |
a mm |
b mm |
c mm |
h mm |
| 100-125 mm | 0,01 mm | 0,006 mm | 243,3 | 132,5 | 66 | 6,5 | 122,2 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
