Precison control caliper, 300 x 100 mm, with points, DIN 862
€105.00*
Available, delivery time: 1-3 workdays
Product information "Precison control caliper, 300 x 100 mm, with points, DIN 862"
Precison control caliper with points, reading 0,02 mm
- made of stainless steel, hardened
- satin chrome finished
- monoblock
- for outside, inside and step measuring
- with fine adjustment
- reading 0,02 mm / 1/1000"
- accuracy DIN 862
- in case/box (for transport only)
Jaws 100 mm
Range 300 mm
| Accuracy: | DIN 862 |
|---|---|
| Jaws: | 100 mm |
| Nonius: | 1/50 / 1/1000" |
| Range: | 0 - 300 mm |
| Type: | analogue, made of stainless steel, hardened, with fine adjustment, with points |

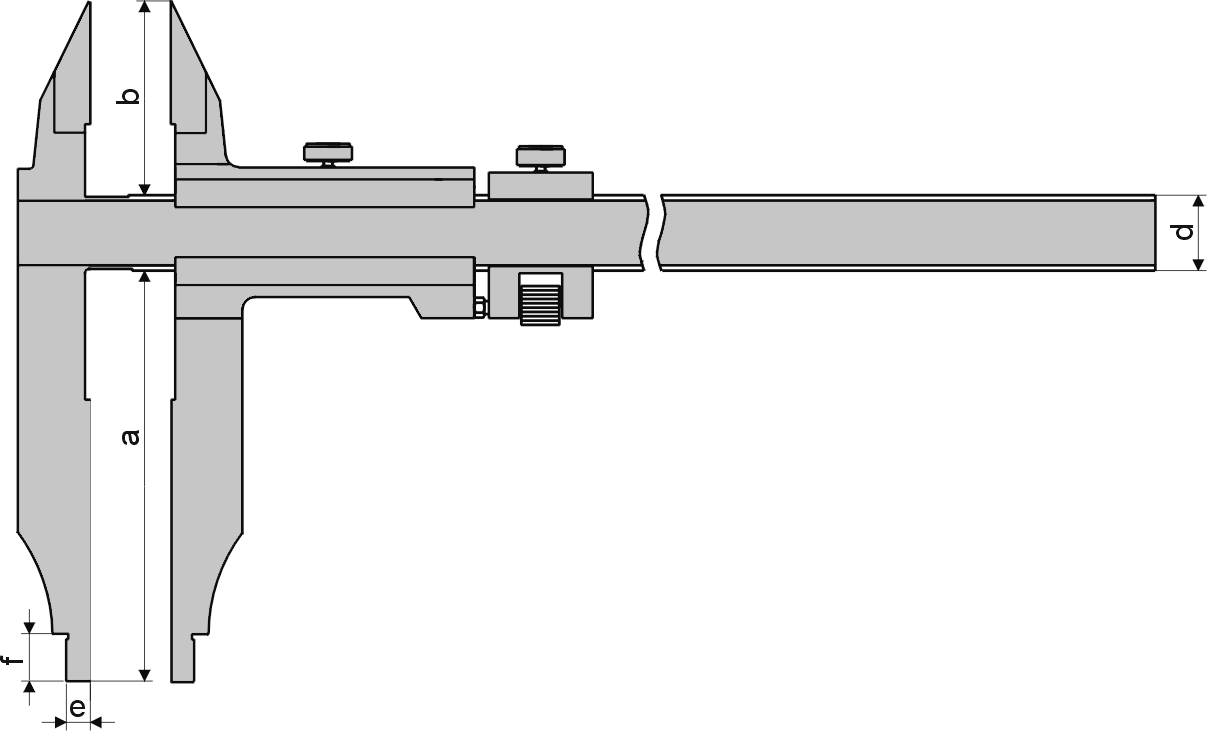

Technical Data
| Messbereich mm Range mm |
Schnabellänge a mm Jaws a mm |
Ablesung mm Reading mm |
b mm | d mm | e mm | f mm |
| 300 / 12" | 100 | 0,02 / 1/1000" | 40 | 20 | 5 | 12 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Similar products
