Digital depth caliper 1000 x 250 mm with hook DIN 862

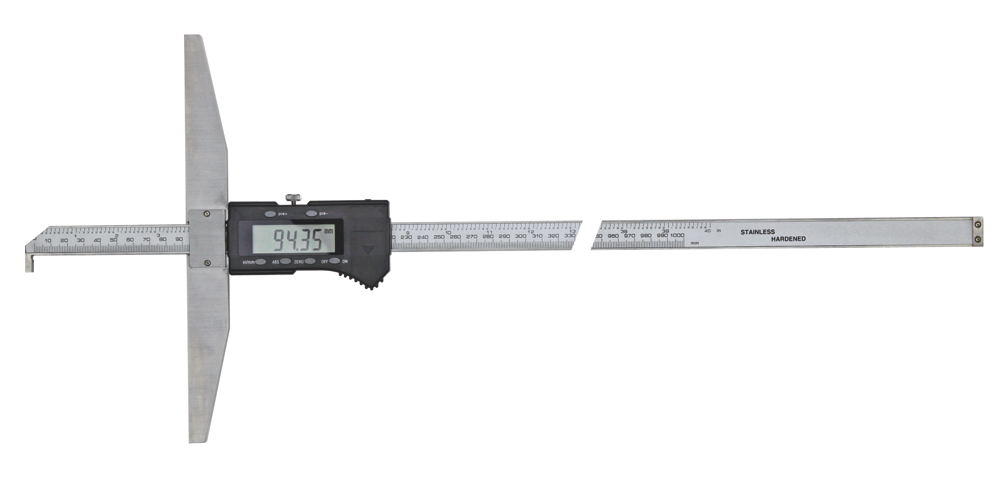

Preview: Digital depth caliper 1000 x 250 mm with hook DIN 862 Preview: Technical drawing Digital depth caliper 1000 x 250 mm with hook DIN 862
Digital depth caliper 1000 x 250 mm with hook DIN 862

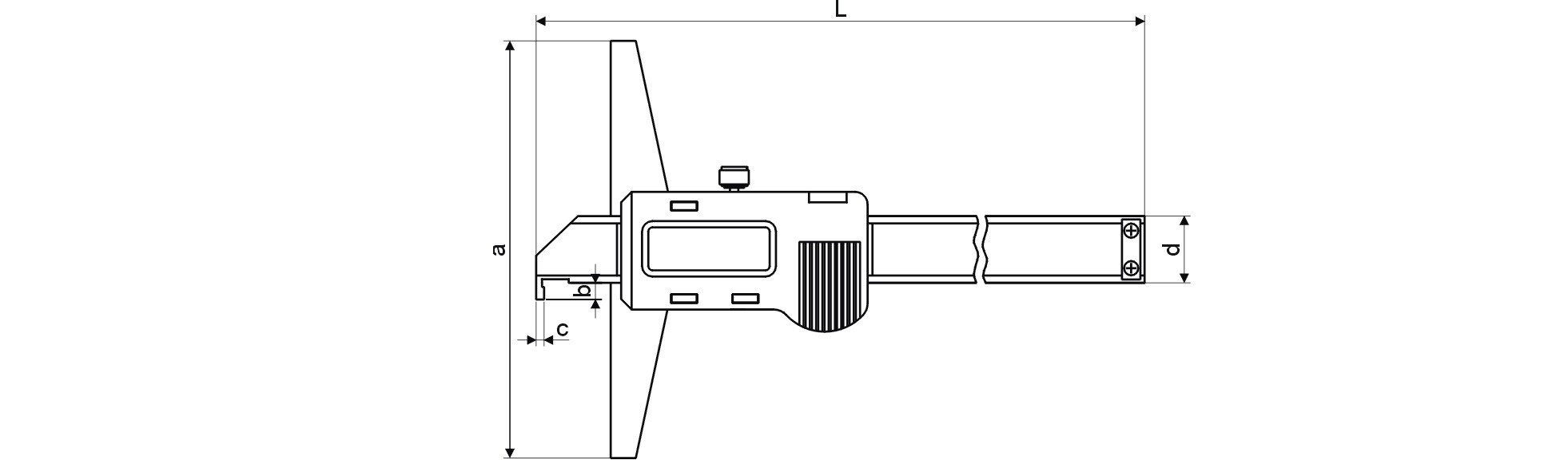

Technical drawing Digital depth caliper 1000 x 250 mm with hook DIN 862

€414.00 *
€492.66 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 218.078
  • Customs tariff number: 9017 3000
  • European article number: 4054469111575
  • Weight: 2,2 kg
  • In stock: 21
Description Technical data Product Safety Information Evaluations 0
Description
Digital depth caliper 1000 x 250 mm with hook - made of stainless steel, hardened - reading... more
Close menu
Product information "Digital depth caliper 1000 x 250 mm with hook DIN 862"

Digital depth caliper 1000 x 250 mm with hook

- made of stainless steel, hardened
- reading 0,01 mm or 0,0005"
- accuracy DIN 862
- electronic with 3 V system
- with metal casing
- with on/off, mm/inch, abs/inc and zero/preset button
- with RS232C data output (RB2)
- base 250 mm
- in case/box

Range 0 - 1000 mm

Range: 0 - 1000 mm
Type: digital, made of stainless steel, hardened, with hook
Base: 250 mm
Accuracy: DIN 862
Reading: 0,01 mm
Data output: RB 2
Related links to "Digital depth caliper 1000 x 250 mm with hook DIN 862"
Technical data
Messbereich mm Range mm Brückenlänge a mm  Base a mm... more
Zurück
Messbereich mm
Range mm		 Brückenlänge a mm
Base a mm		 Genauigkeit mm
Accuracy mm		 b mm c mm d mm
1000 250 10 10 4 18
