Digital radius indicator range 5 - 1000 mm

Preview: Digital radius indicator range 5 - 1000 mm Preview: Measuring bases Digital radius indicator range 5 - 1000 mm Preview: Technical drawing Digital radius indicator range 5 - 1000 mm Preview: Application example Digital radius indicator

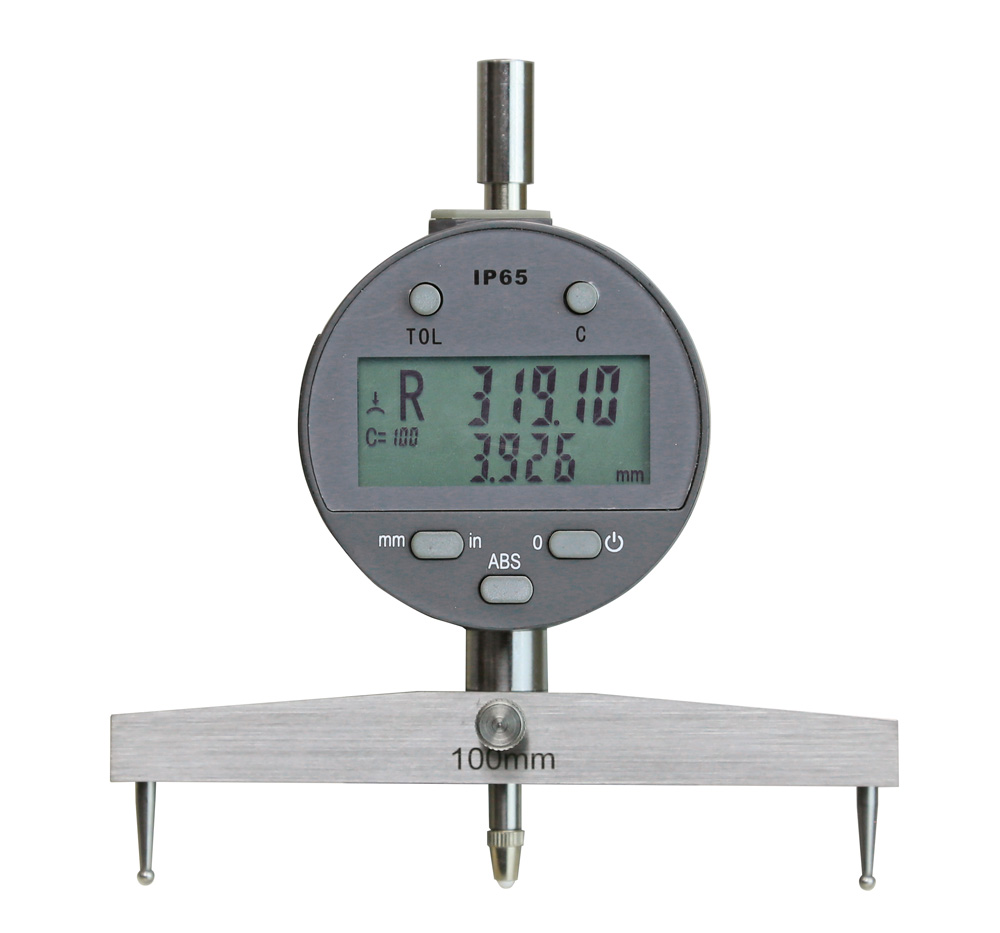

Digital radius indicator range 5 - 1000 mm

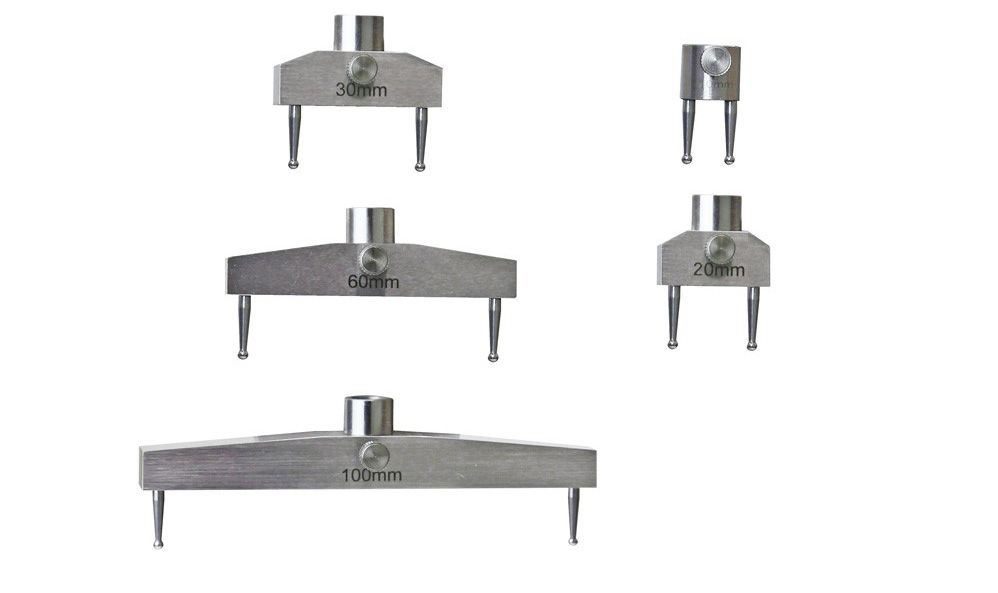

Measuring bases Digital radius indicator range 5 - 1000 mm

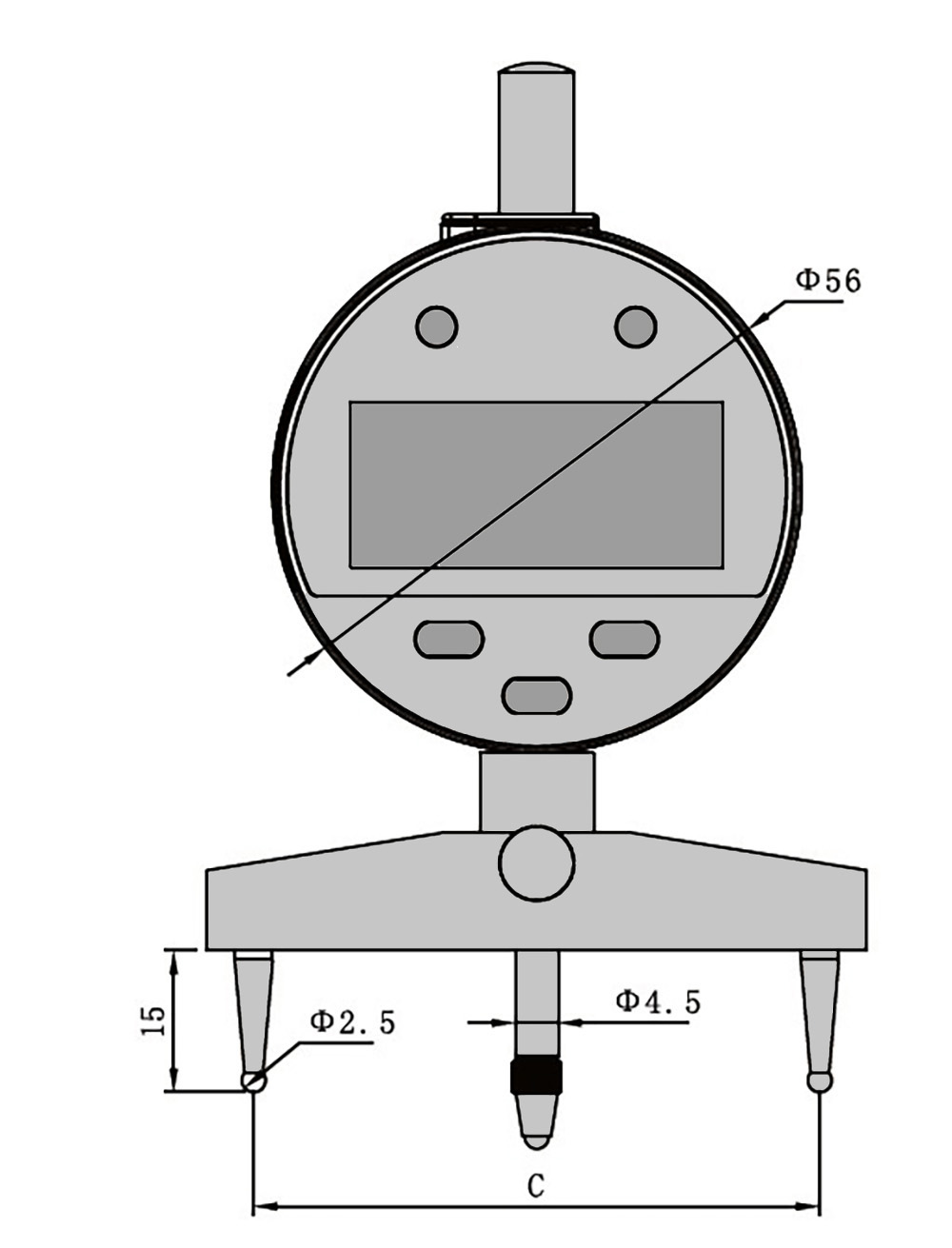

Technical drawing Digital radius indicator range 5 - 1000 mm

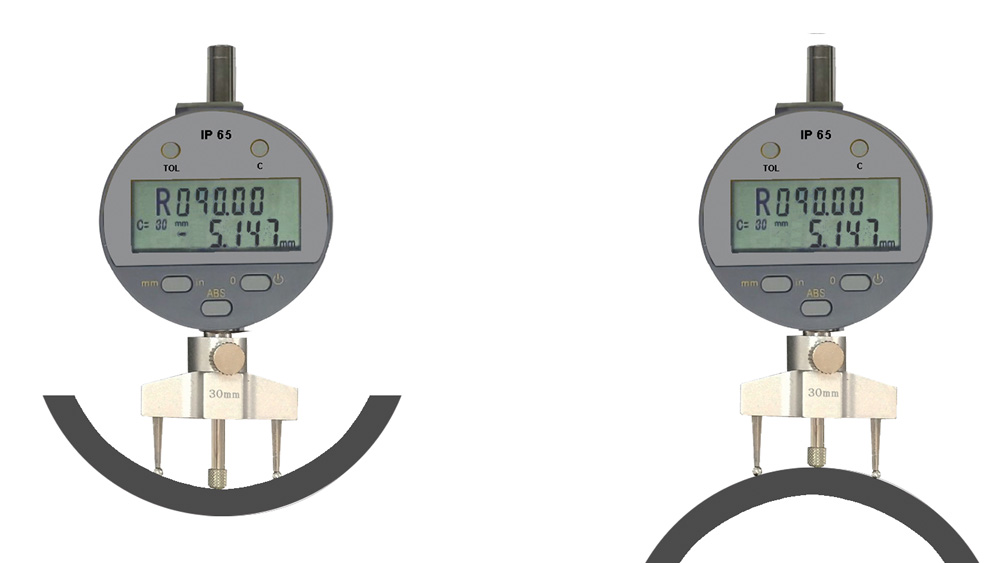

Application example Digital radius indicator

€223.20 *
€265.61 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 301.050.N
  • Customs tariff number: 9031 8020
  • European article number: 4054469178554
  • Weight: 0,7 kg
  • In stock: 18
Description Technical data Evaluations 0
Description
Digital radius indicator 5 - 1000 mm - for measuring of round parts or hole - large range... more
Close menu
Product information "Digital radius indicator range 5 - 1000 mm"

Digital radius indicator 5 - 1000 mm

- for measuring of round parts or hole
- large range from 5 to 1000 mm
- direct reading of measured value
- with 5 measuring bases for optimal measuring
- with special dial indicator with data output RB 6:
  - range 0 - 12,7 mm
  - reading 0,01 mm
  - display of radius value
  - MODE button for selection of optimal base
- in case/box

Range mm: 5 - 1000
Measuring bases mm: 10, 20, 30, 60, 100

Related links to "Digital radius indicator range 5 - 1000 mm"
Technical data
Messbereich mm Range mm Messbrücke mm Measuring base mm... more
Zurück
Messbereich mm
Range mm		 Messbrücke mm
Measuring base mm		 Außenradius mm
Out radius mm		 Innenradius mm
Inner radius mm		 Ablesung mm
Reading mm		 Genauigkeit mm
Accuracy mm
5 - 1000 mm 10
20
30
60
100		 5 - 11
11 - 30
25 - 100
95 - 260
255 - 1000		 6,5 - 13
14 - 30
25 - 100
95 -260
255 - 1000		 0,01 1%
