Digital scale unit 300 mm horizontal DIN 862

Preview: Digital scale unit 300 mm horizontal DIN 862 Preview: Technical drawing Digital scale unit 300 mm horizontal DIN 862 Preview: Data output RB 5
Digital scale unit 300 mm horizontal DIN 862

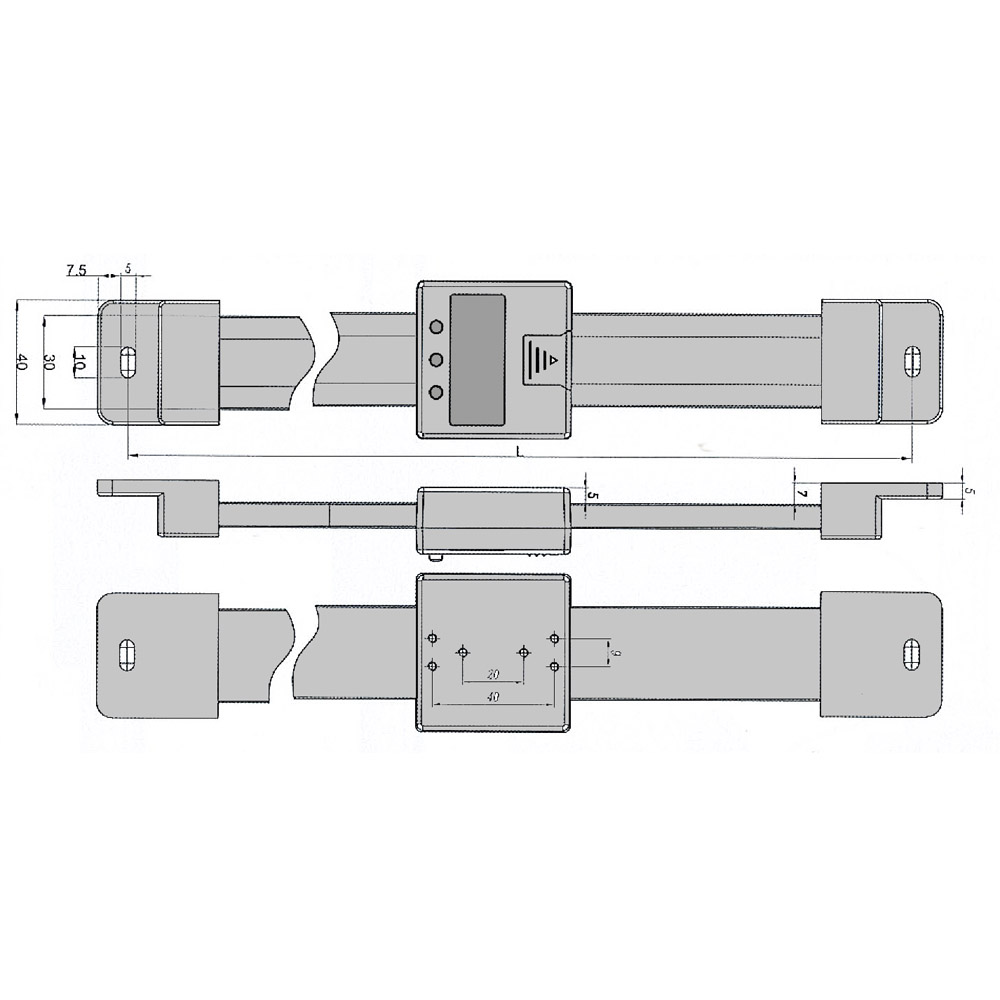

Technical drawing Digital scale unit 300 mm horizontal DIN 862
Data output RB 5

€70.80 *
€84.25 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 218.356
  • Customs tariff number: 9017 3000
  • European article number: 4054469111933
  • Weight: 0,35 kg
  • In stock: 8
Description Technical data Evaluations 0
Description
Digital scale unit 300 mm horizontal - horizontal, capacitive measuring system - measuring... more
Close menu
Product information "Digital scale unit 300 mm horizontal DIN 862"

Digital scale unit 300 mm horizontal

- horizontal, capacitive measuring system
- measuring rod made of aluminium (30 x 7,9 mm)
- reading 0,01 mm or 0,0005''
- with RS232C data output RB 5
- with on/off, mm/inch and zero button
- length (L) 430 mm
- accuracy 0,04 mm

Range 0 - 300 mm

Range: 0 - 300 mm
Type: horizontal
Data output: RB 5
Accuracy: 0,04 mm
Reading: 0,01 mm
Related links to "Digital scale unit 300 mm horizontal DIN 862"
Technical data
Messbereich mm Range mm Genauigkeit mm Accuracy mm L mm 300... more
Zurück
Messbereich mm
Range mm		 Genauigkeit mm
Accuracy mm		 L mm
300 0,04 430
