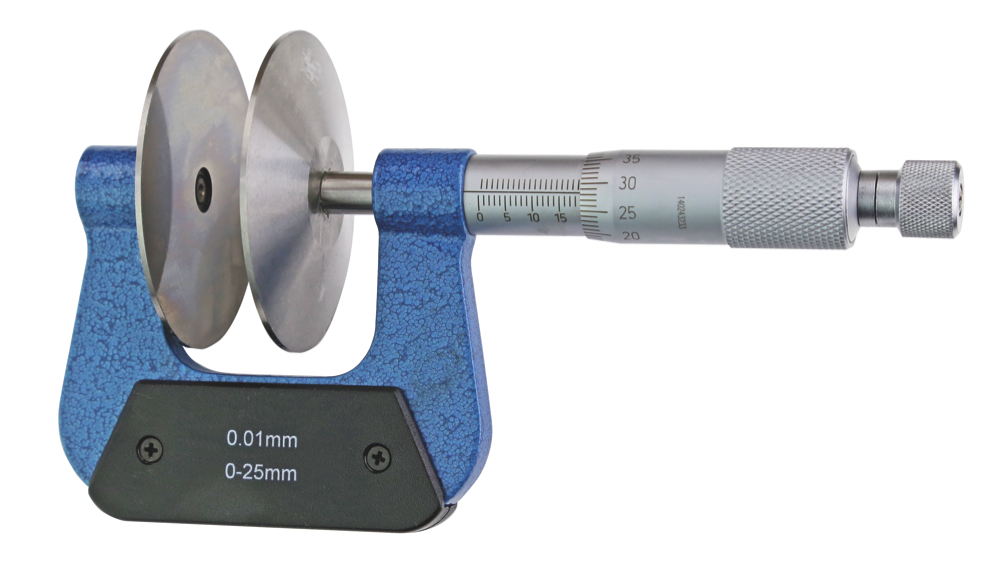

Disc micrometer 50 - 75 mm with non-rotating spindle

Preview: Disc micrometer 50 - 75 mm with non-rotating spindle Preview: Technical drawing Disc micrometer 50 - 75 mm with non-rotating spindle
Disc micrometer 50 - 75 mm with non-rotating spindle

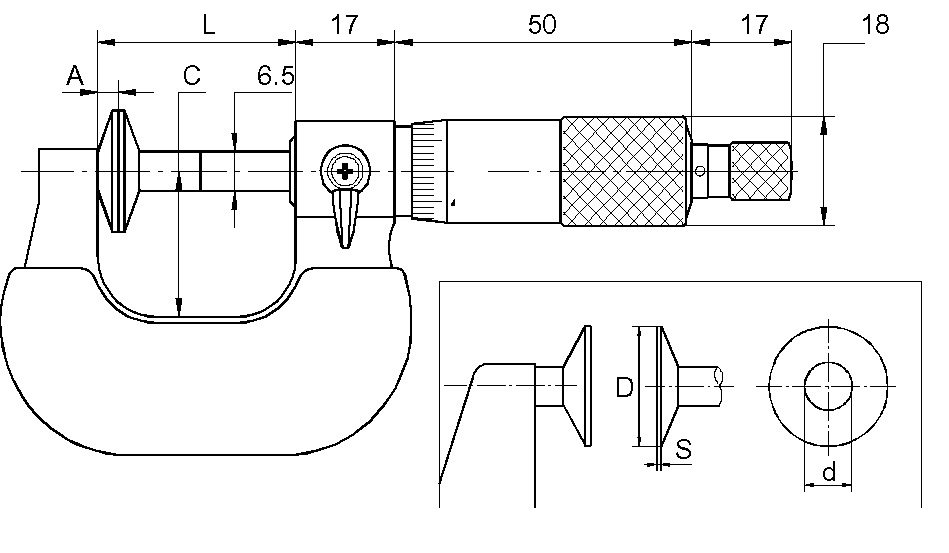

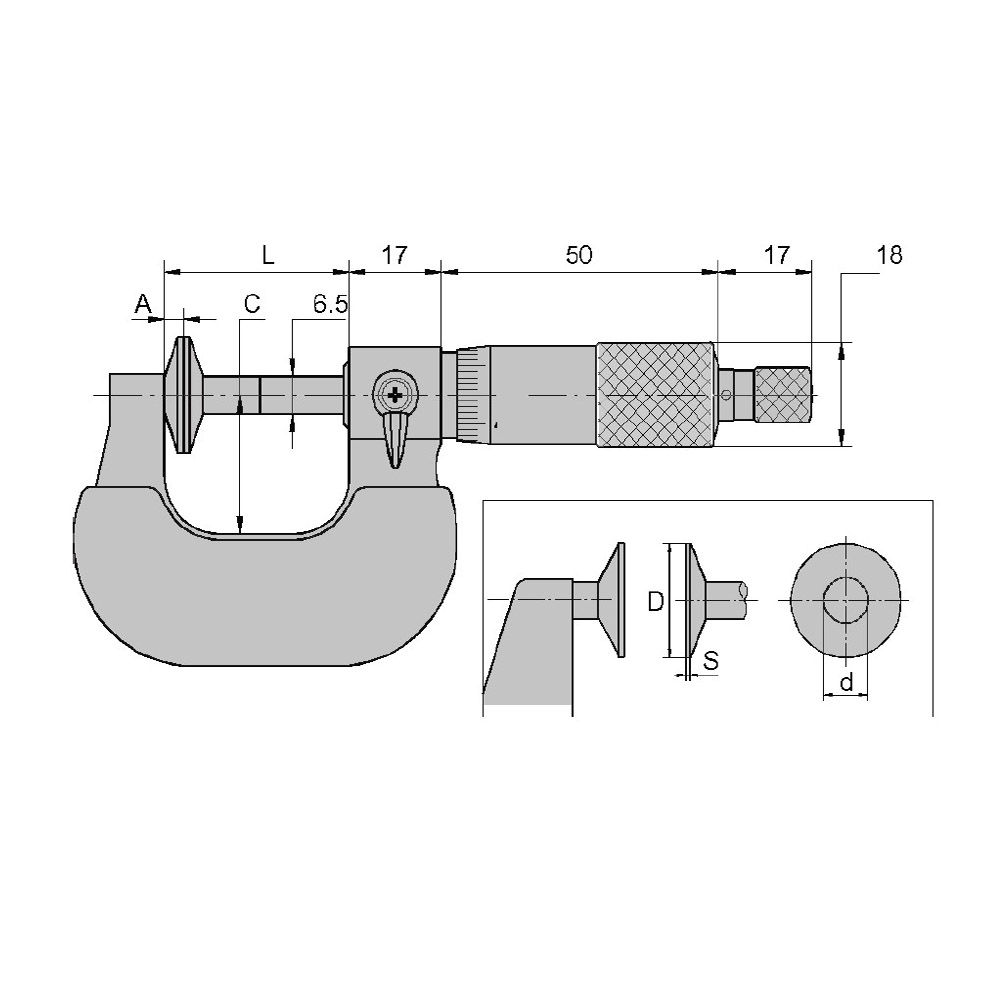

Technical drawing Disc micrometer 50 - 75 mm with non-rotating spindle

€91.20 *
€108.53 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 309.252
  • Customs tariff number: 9017 3000
  • European article number: 4054469118710
  • Weight: 0,8 kg
  • In stock: 22
Description Technical data Evaluations 0
Description
Disc micrometer 50 - 75 mm - disc Ø 20 mm - with non-rotating spindle, frame coated... more
Close menu
Product information "Disc micrometer 50 - 75 mm with non-rotating spindle"

Disc micrometer 50 - 75 mm

- disc Ø 20 mm
- with non-rotating spindle, frame coated
- thimble chrome finished
- reading 0,01 mm
- with ratchet
- in case/box

Range 50 - 75 mm

Range: 50 - 75 mm
Type: analogue, with disc Ø 20 mm, with ratchet
Reading: 0,01 mm
Accuracy: 0,005 mm
Related links to "Disc micrometer 50 - 75 mm with non-rotating spindle"
Technical data
Messbereich mm Range mm Messteller mm Disc mm Genauigkeit... more
Zurück
Messbereich mm
Range mm		 Messteller mm
Disc mm		 Genauigkeit mm
Accuracy mm		 A mm C mm L mm d mm S mm
50 - 75 20 0,005 8 57 93 8 0,7
