Outside micrometer antimagnetic 0 - 25 mm DIN 863

Preview: Outside micrometer antimagnetic 0 - 25 mm DIN 863 Preview: Technical drawing Outside micrometer antimagnetic 0 - 25 mm DIN 863 Preview: Sign antimagnetic
Outside micrometer antimagnetic 0 - 25 mm DIN 863

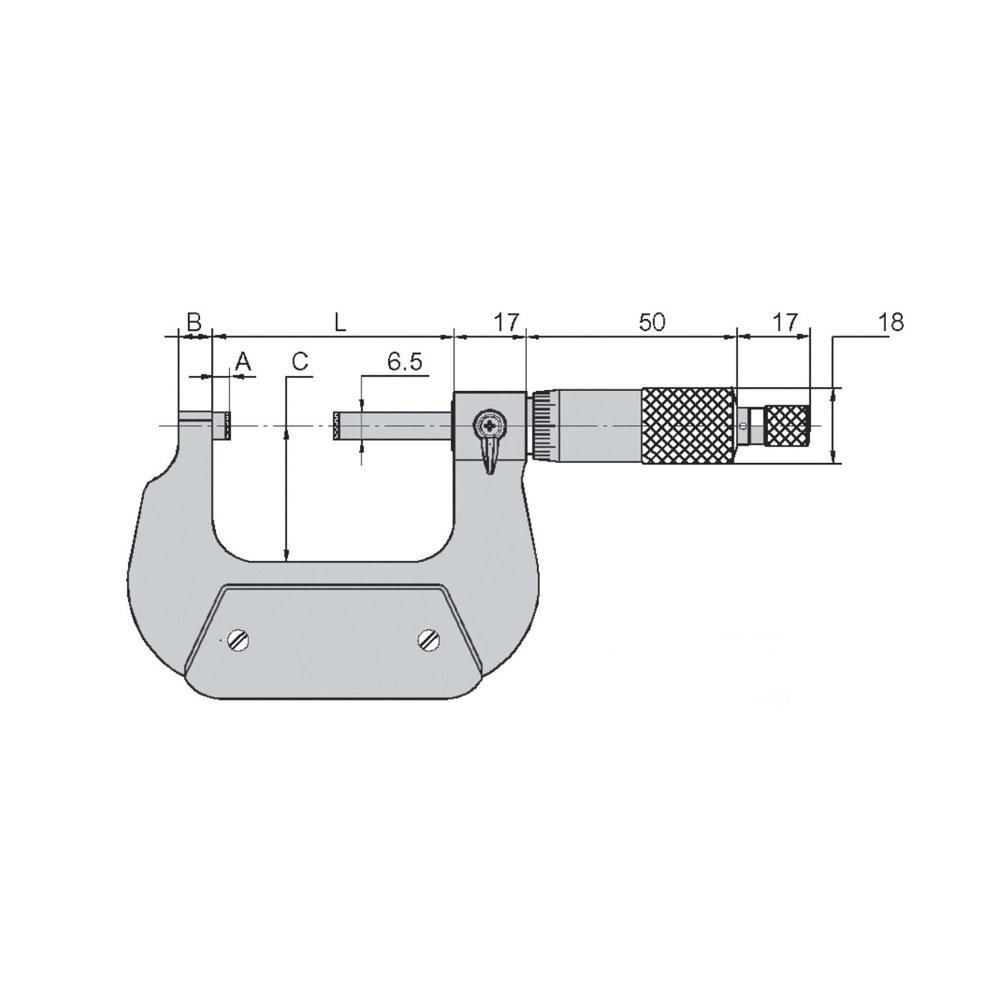

Technical drawing Outside micrometer antimagnetic 0 - 25 mm DIN 863
Sign antimagnetic

€529.20 *
€629.75 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 304.708
  • Customs tariff number: 9017 3000
  • European article number: 4054469167022
  • Weight: 0,3 kg
  • In stock: 3
Description Technical data Evaluations 0
Description
Outside micrometer antimagnetic 0 - 25 mm - antimagnetic - with ratchet friction thimble -... more
Close menu
Product information "Outside micrometer antimagnetic 0 - 25 mm DIN 863"

Outside micrometer antimagnetic 0 - 25 mm

- antimagnetic
- with ratchet friction thimble
- with hardened special measuring faces
- scale chrome finished
- spindle Ø 6,5 mm, thread pitch 0,5 mm
- scale 0,01 mm
- accuracy DIN 863
- in case/box

Range 0 - 25 mm

Range: 0 - 25 mm
Type: analogue, antimagnetic, with hardened special measuring faces, with ratchet friction timble
Reading: 0,01 mm
Accuracy: DIN 863
Related links to "Outside micrometer antimagnetic 0 - 25 mm DIN 863"
Technical data
Messbereich mm Range mm A mm B mm C mm L mm 0 - 25... more
Zurück
Messbereich mm
Range mm		 A mm B mm C mm L mm
0 - 25 3,5 6 24 32
