Precision dial bench gauge 400 x 250 x 50 mm with digital display

Preview: Präzisions-Messtisch 400 x 250 x 50 mm, mit Digitalanzeige Preview: Anwendungsbeispiel Präzisions-Messtisch 400 x 250 x 50 mm, mit Digitalanzeige Preview: Anwendungsbeispiel Präzisions-Messtisch 400 x 250 x 50 mm, mit Digitalanzeige
Präzisions-Messtisch 400 x 250 x 50 mm, mit Digitalanzeige
Anwendungsbeispiel Präzisions-Messtisch 400 x 250 x 50 mm, mit Digitalanzeige
Anwendungsbeispiel Präzisions-Messtisch 400 x 250 x 50 mm, mit Digitalanzeige

€335.40 *
€399.13 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 208.147
  • Customs tariff number: 9017 3000
  • European article number: 4054469160702
  • Weight: 27 kg
  • In stock: 10
Description Evaluations 0
Description
Precision dial bench gauge with digital display Granit measuring table - degree 0 - 400... more
Close menu
Product information "Precision dial bench gauge 400 x 250 x 50 mm with digital display"

Precision dial bench gauge with digital display

Granit measuring table
- degree 0
- 400 x 250 x 50 mm

Column with
- digital display, reading 0,01 mm
- display adjustable
- drive wheel
- fine adjustment
- accuracy 0,03 mm

Measuring arm
- for dial indicator with shaft ø 8 mm
- length 250 mm
- cross section 12 x 10 mm
- rotatable to 90°

Range 280 mm

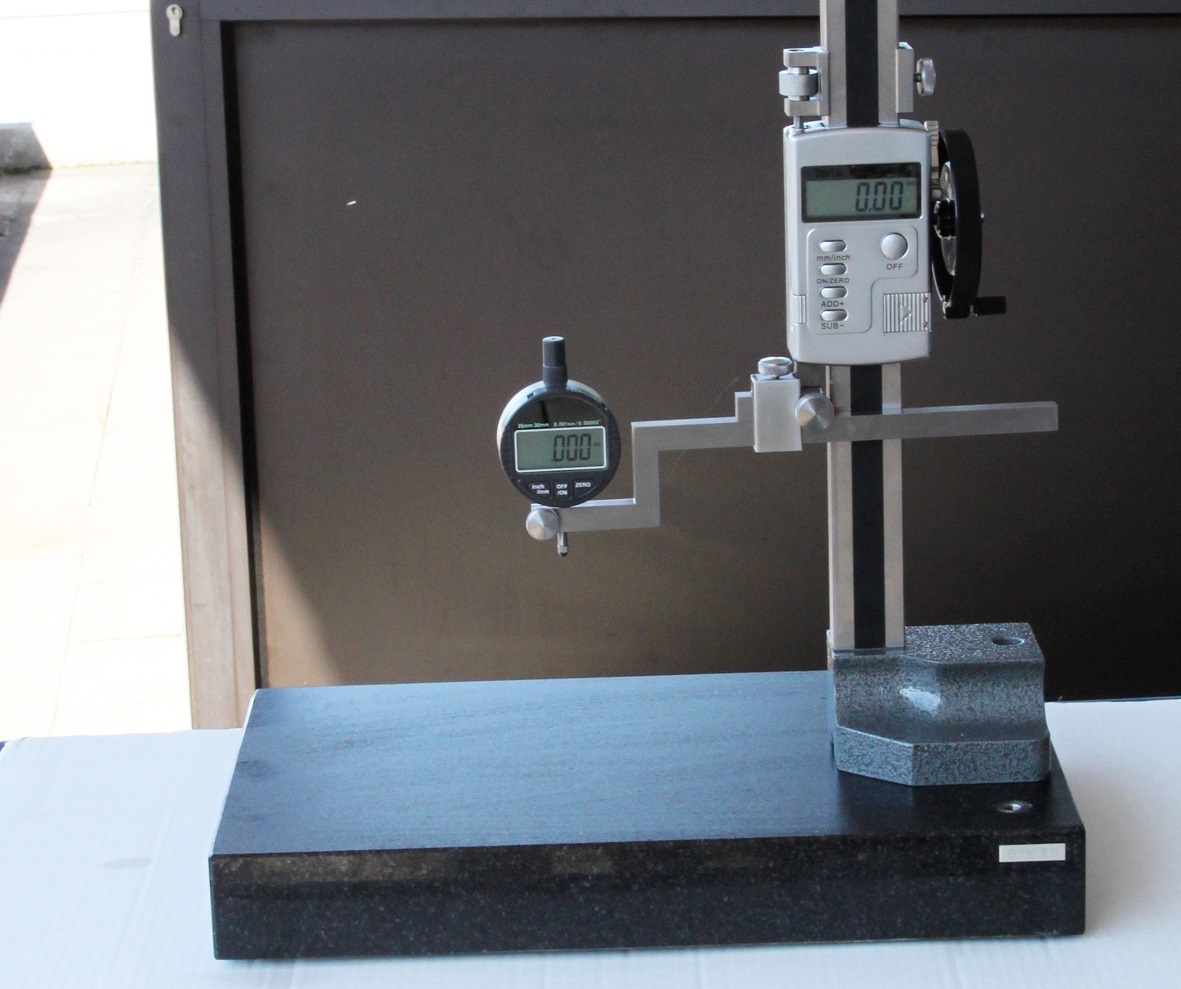

Image 2: Example with dial indicator
- for simple measuring direct reading at the display
  on the column. Accuracy until 0,03 mm.
- for exact measuring reading from dial indicator. (Display
  on the column need to be adjusted with parallel gauge
  before. The accuracy depends on the accuracy of the
  dial indicator.)
  Measuring value = value display (column) + value of indicator

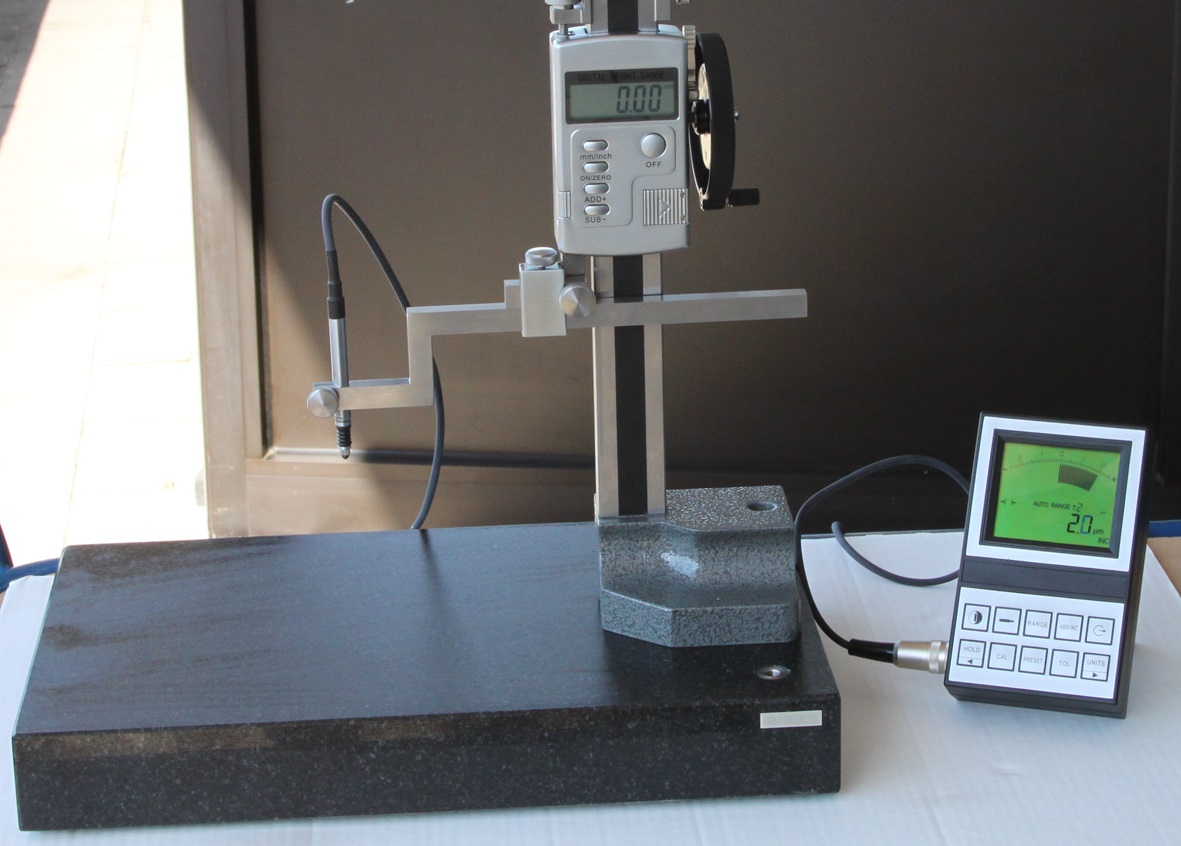

Image 3: Example with inductive probe
- for exact measuring in range µm. (Display on the
  column need to be adjusted with parallel gauge before.)
  Measuring value = value display (column) + value of probe
