Digital three point internal micrometer 12 - 20 mm

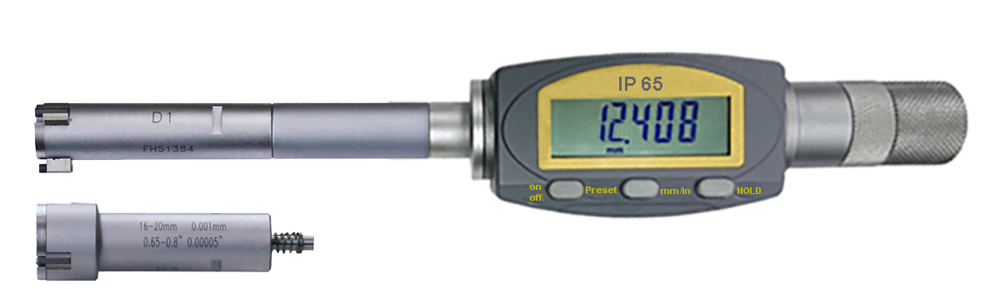

Digital three point internal micrometer 12 - 20 mm with two measuring heads IP 65 DIN 863

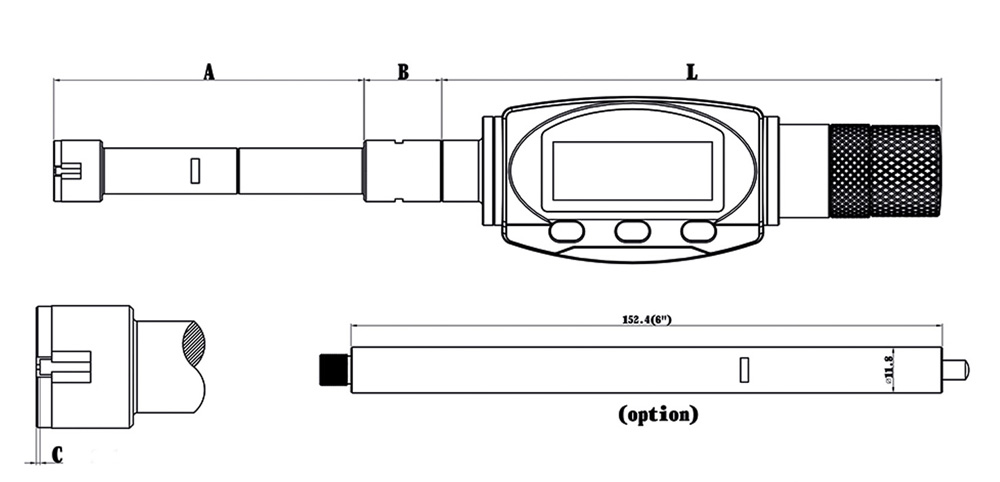

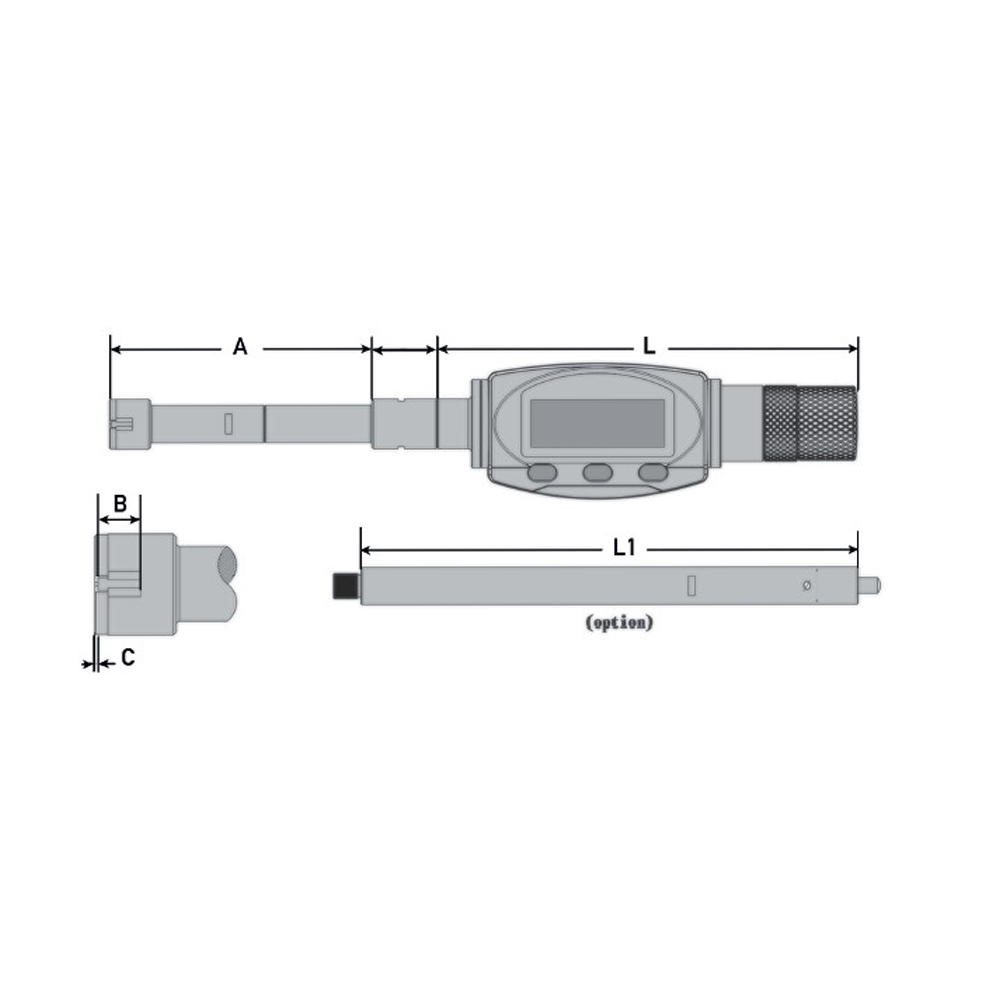

Technical drawing Digital three point internal micrometer 12 - 20 mm with two measuring heads IP 65 DIN 863

€428.40 *

€509.80 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 312.285.PN
Customs tariff number: 9017 3000
European article number: 4054469179261
Weight: 1,8 kg
In stock: 8

Digital three point internal micrometer 12 - 20 mm IP 65 - one digital display with two... more

Close menu

Product information "Digital three point internal micrometer 12 - 20 mm IP 65 DIN 863"

Digital three point internal micrometer 12 - 20 mm IP 65

- one digital display with two measuring heads
- with setting ring 16 mm and extension L 152,4 x Ø 11,8
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- suitable for measuring blind holes
- in case/box

Range 12 - 20 mm

Range:	12 - 16 mm, 16 - 20 mm
Type:	digital, IP 65
usable for measuring of:	blind hole
Set:	2 pcs.
Reading:	0,001 mm
Accuracy:	0,005 mm
Data output:	RB 6

Related links to "Digital three point internal micrometer 12 - 20 mm IP 65 DIN 863"

Messbereich mm Range mm Einstellring mm Setting ring mm... more

Zurück

Messbereich mm Range mm	Einstellring mm Setting ring mm	Verlängerung mm Extension mm	A mm	B mm	C mm	L mm	Ablesung mm Reading mm	*Genauigkeit µm Accuracy* µm**
12 - 16	16	152,4 x Ø 11,8	80	20	0,5	128,8	0,001	0,005
16 - 20	16	152,4 x Ø 11,8	80	20	0,5	128,8	0,001	0,005
* bei vollanliegenden Messflächen / at full contact of the measuring faces
