3-point internal micrometer set 50 - 100 mm IP 65

Preview: 3-point internal micrometer set 50 - 100 mm digital IP 65 DIN 863

Preview: Technical drawing 3-point internal micrometer set 50 - 100 mm digital IP 65 DIN 863

3-point internal micrometer set 50 - 100 mm digital IP 65 DIN 863

Technical drawing 3-point internal micrometer set 50 - 100 mm digital IP 65 DIN 863

€1,317.00 *

€1,567.23 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

Order number: 312.277.PN
Customs tariff number: 9017 3000
European article number: 4054469179223
Weight: 5,6 kg
In stock: 0

Digital 3-point internal micrometer set 50 - 100 mm IP 65 - four pieces per set - with... more

Close menu

Product information "3-point internal micrometer set 50 - 100 mm digital IP 65 DIN 863"

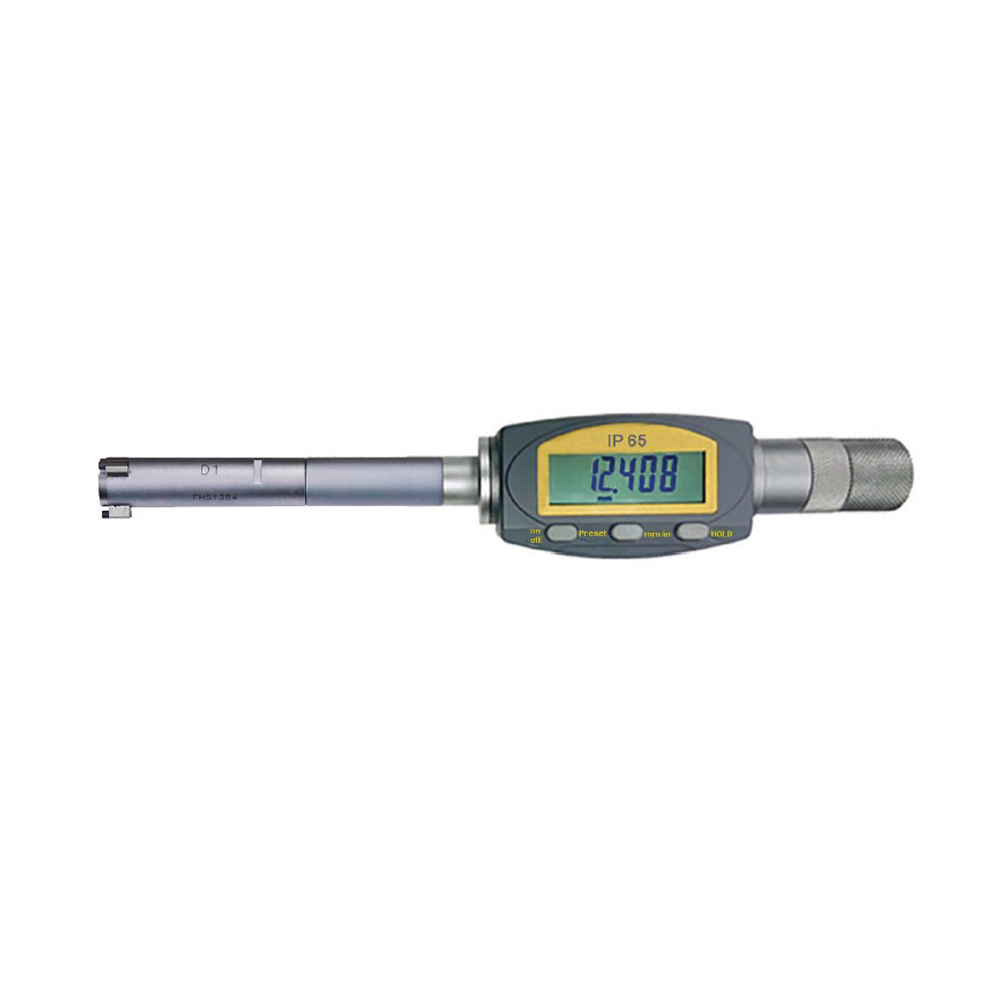

Digital 3-point internal micrometer set 50 - 100 mm IP 65

- four pieces per set
- with setting rings 62 mm, 87 mm and extension L 152,4 x Ø 23,5
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- suitable for measuring blind holes
- in case/box

Range 50 - 100 mm

Range:	50 - 63 mm, 62 - 75 mm, 75 - 88 mm, 87 - 100 mm
Type:	digital, IP 65
usable for measuring of:	blind hole
Set:	4 pcs.
Reading:	0,001 mm
Accuracy:	0,005 mm
Data output:	RB 6

Related links to "3-point internal micrometer set 50 - 100 mm digital IP 65 DIN 863"

Messbereich mm Range mm Einstellring mm Setting ring mm... more

Zurück

Messbereich mm Range mm	Einstellring mm Setting ring mm	Verlängerung mm Extension mm	A mm	C mm	L mm	Ablesung mm Reading mm	*Genauigkeit µm Accuracy* µm**
50 - 63	62 + 87	152,4 x Ø 23,5	127	0,5	128,8	0,001	0,005
62 - 75			127	0,5	128,8
75 - 88			127	0,5	128,8
87 - 100			127	0,5	128,8
* bei vollanliegenden Messflächen / at full contact of the measuring faces
