Digital-three-point internal micrometer 40 - 50 mm

Preview: Technical drawing Digital-three-point internal micrometer 40 - 50 mm with scale

Digital-three-point internal micrometer 40 - 50 mm with scale

Detail Digital-three-point internal micrometer 40 - 50 mm with scale

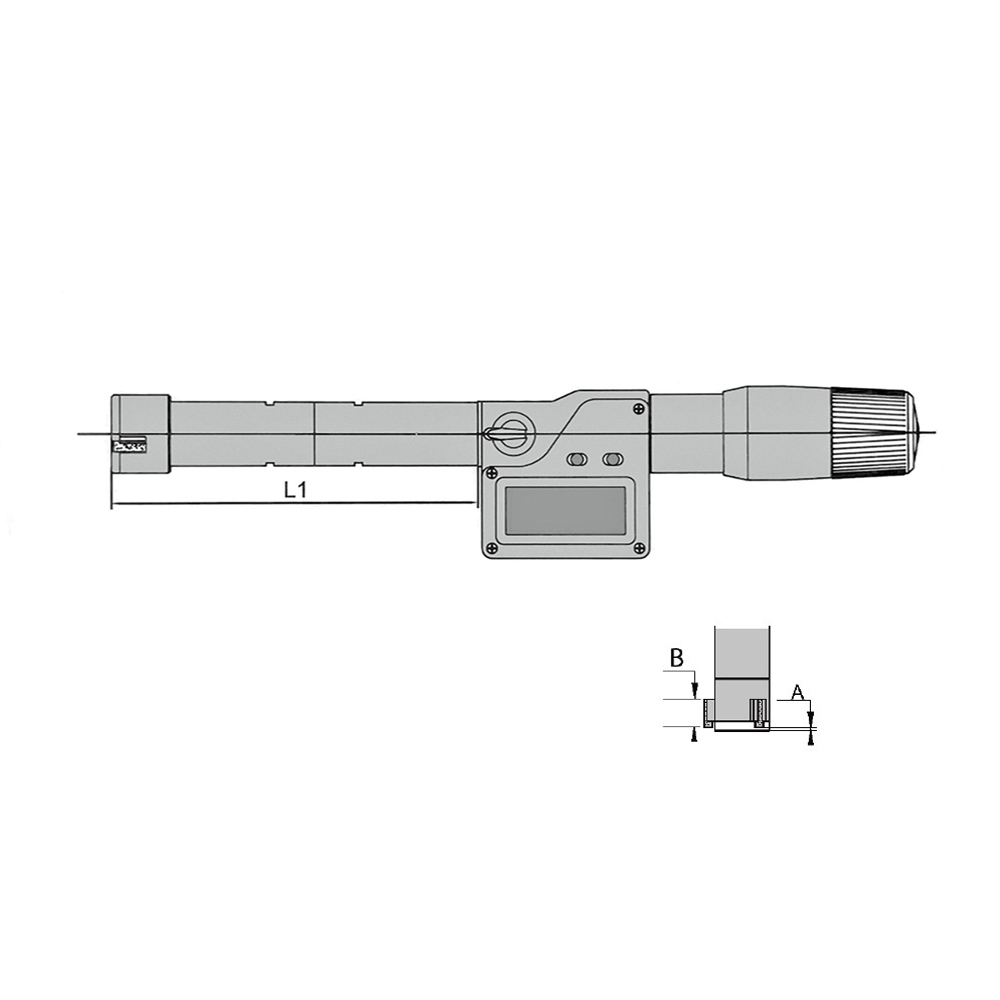

Technical drawing Digital-three-point internal micrometer 40 - 50 mm with scale

€422.40 *

€502.66 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 312.238.M
Customs tariff number: 9017 3000
European article number: 4054469162393
Weight: 2,6 kg
In stock: 2

Digital-three-point internal micrometer 40 - 50 mm - for blind hole - with carbide... more

Close menu

Product information "Digital-three-point internal micrometer 40 - 50 mm with scale"

Digital-three-point internal micrometer 40 - 50 mm

- for blind hole
- with carbide measuring faces
- satin chrome finished
- with setting gauge and extension
- display with on/off/set and abs/inc/unit button
- reading 0,001 mm
- accuracy 0,005 mm
- in case/box

Range 40 - 50 mm

Range:	40 - 50 mm
Type:	digital, with carbide measuring faces, with setting gauge and extension
usable for measuring of:	blind hole
Reading:	0,005 mm
Accuracy:	0,005 mm

Related links to "Digital-three-point internal micrometer 40 - 50 mm with scale"

Messbereich mm Range mm Einstellring mm Standard mm... more

Zurück

Messbereich mm Range mm	Einstellring mm Standard mm	Verlängerung mm Extension mm	A mm	L1 mm	Ablesung mm Reading mm	*Genauigkeit mm Accuracy* mm**
40 - 50	40	150 x Ø 23,4	0,5	101	0,005	0,005
* bei vollanliegenden Messflächen / at full contact of the measuring faces
