Analogue control caliper 0-600 mm manufacture standard
€342.00*
Delivery time upon request
Product information "Analogue control caliper 0-600 mm manufacture standard"
Analogue control caliper 0-600 mm without points
- made of stainless steel, hardened
- satin chrome finished
- monoblock
- for outside, inside and step measuring
- with fine adjustment
- reading 0,05 mm / 1/128"
- accuracy manufacture standard
- in case/box (for transport only)
| Accuracy: | manufacture standard |
|---|---|
| Jaws: | 300 mm |
| Nonius: | 1/20 / 1/128" |
| Range: | 0 - 600 mm |
| Type: | analogue, made of stainless steel, hardened, with fine adjustment, without points |

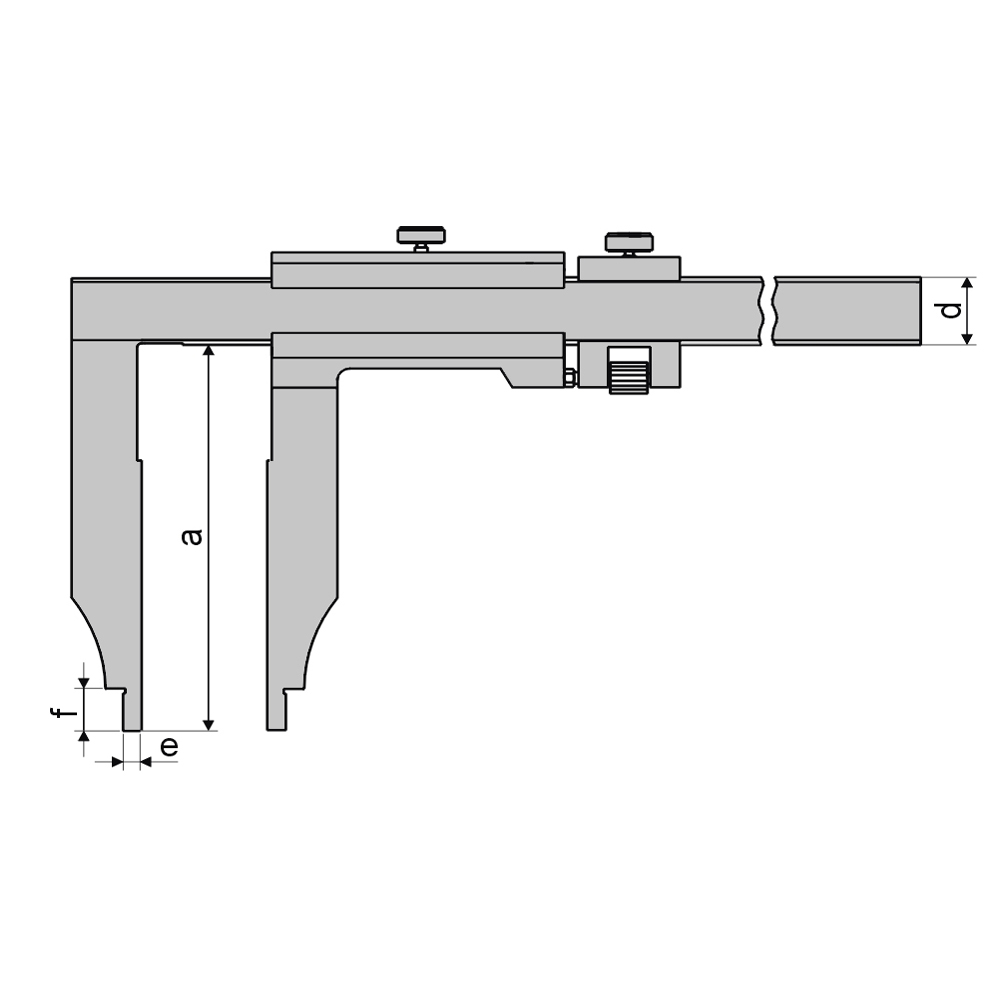

Technical Data
| Messbereich mm Range mm |
Schnabellänge a mm Jaws a mm |
d mm | e mm | f mm |
| 600 / 24" | 300 | 31 | 10 | 15 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for caliper until 1000 mm - for analog and digital caliper untill range 1000 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
DAkkS certification for caliper > 500 - 1000 mm - for analog and digital caliper range > 500 - 1000 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618
Similar products

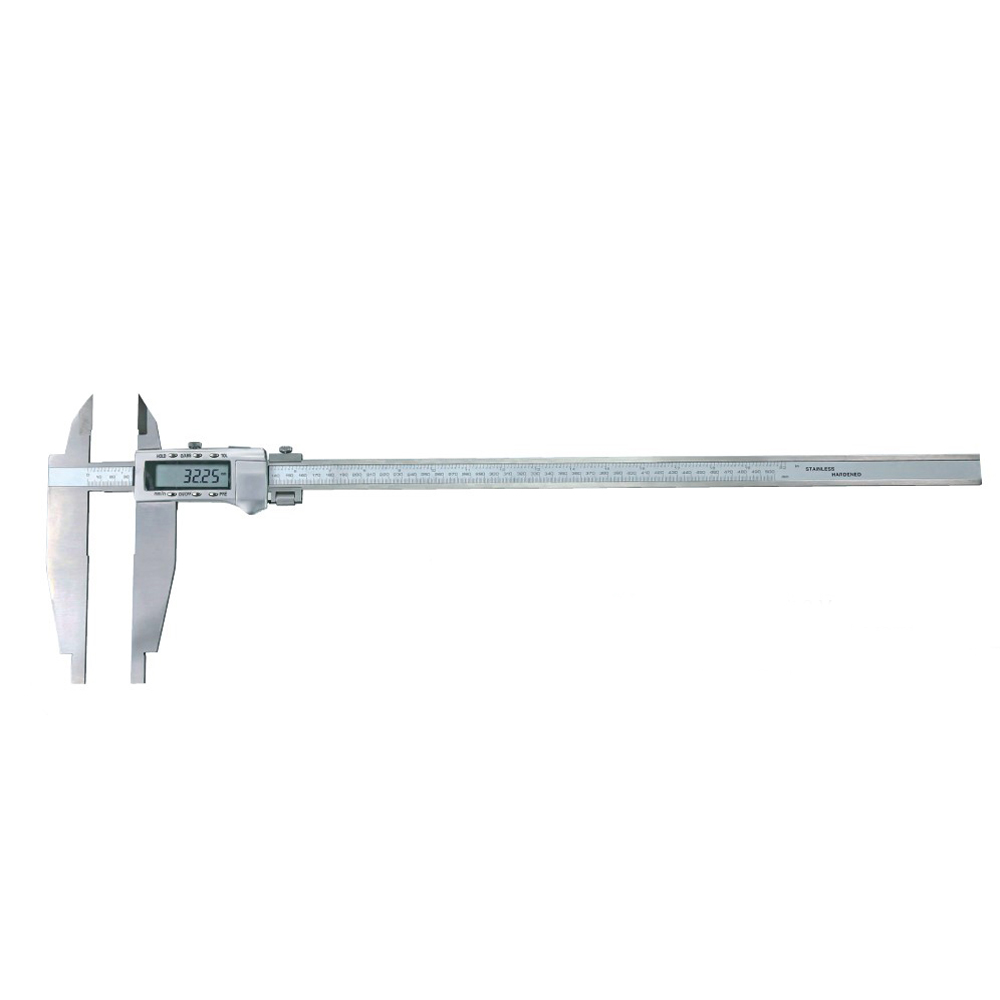

Digital control caliper 0 - 600 mm with points - measuring system with 3V- made of stainless steel, hardened- with fine adjustment- accuracy manufacture standard- reading 0,01 mm oder 0,0005"- with on/off, mm/inch, 0/abs, hold, tol and preset button- Data output (RB 5)- in case/box (for transport only!) Accuracy 0,08 mm Jaws 300 mm Range 600 mm

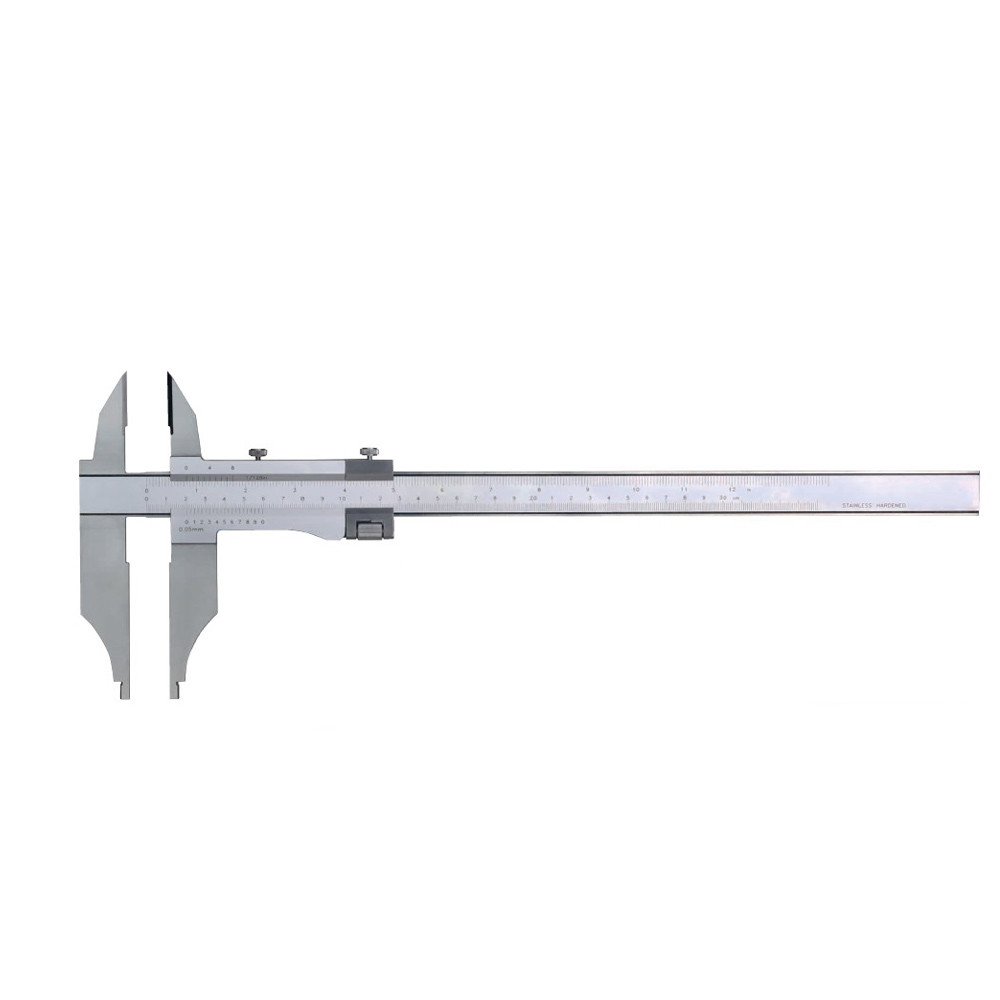

Analogue precision control caliper 0 - 600 mm - made of stainless steel, hardened- satin chrome finished- monoblock- for outside, inside and step measuring- with fine adjustment- reading 0,05 mm / 1/128"- accuracy manufacture standard- in case/box (for transport only) Jaws 300 mmRange 600 mm
Precision control caliper 800 x 400 mm without points- made of stainless steel, hardened- satin chrome finished- monoblock- for outside, inside and step measuring- with fine adjustment- reading 0,05 mm / 1/128"- accuracy manufacture standard- in case/box (for transport only)

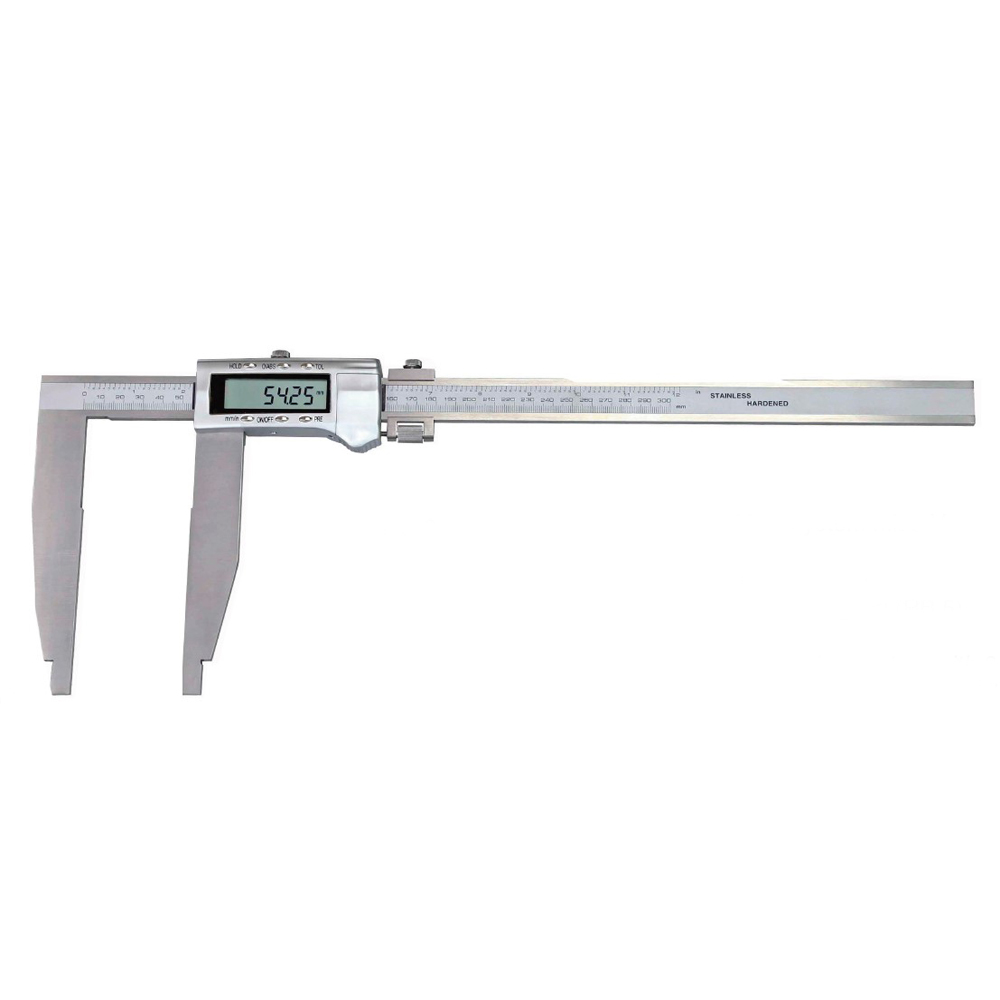

Digital control caliper 600 mm without points - measuring system with 3V- made of stainless steel, hardened- with fine adjustment- accuracy manufacture standard- reading 0,01 mm oder 0,0005"- with on/off, mm/inch, 0/abs, hold, tol and preset button- Data output (RB 5)- in case/box (for transport only!) Accuracy 0,06 mm Jaws 300 mm Range 600 mm
