Digital control caliper 1000 mm with moveable jaw
€510.00
Available, delivery time: 1-3 workdays
Product information "Digital control caliper 1000 mm with moveable jaw"
Digital caliper 1000 mm with moveable jaw
- range 1000 mm, jaws 150 mm
- made of stainless steel, hardened
- with fine adjustment
- accuracy manufacture standard
- reading 0,01 mm oder 0,0005"
- with ON/OFF, mm/inch, ABS/INC and ZERO/PRESET button
- Data output (RB 2)
- in case/box (for transport only)
Accuracy 0,12 mm
Jaws 150 mm
Range 1000 mm
| Accuracy: | 0,12 mm |
|---|---|
| Data output: | RB 2 |
| Jaws: | 150 mm |
| Range: | 0 - 1000 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel, hardened, Measuring system with 3 V, with fine adjustment, with movable jaw |

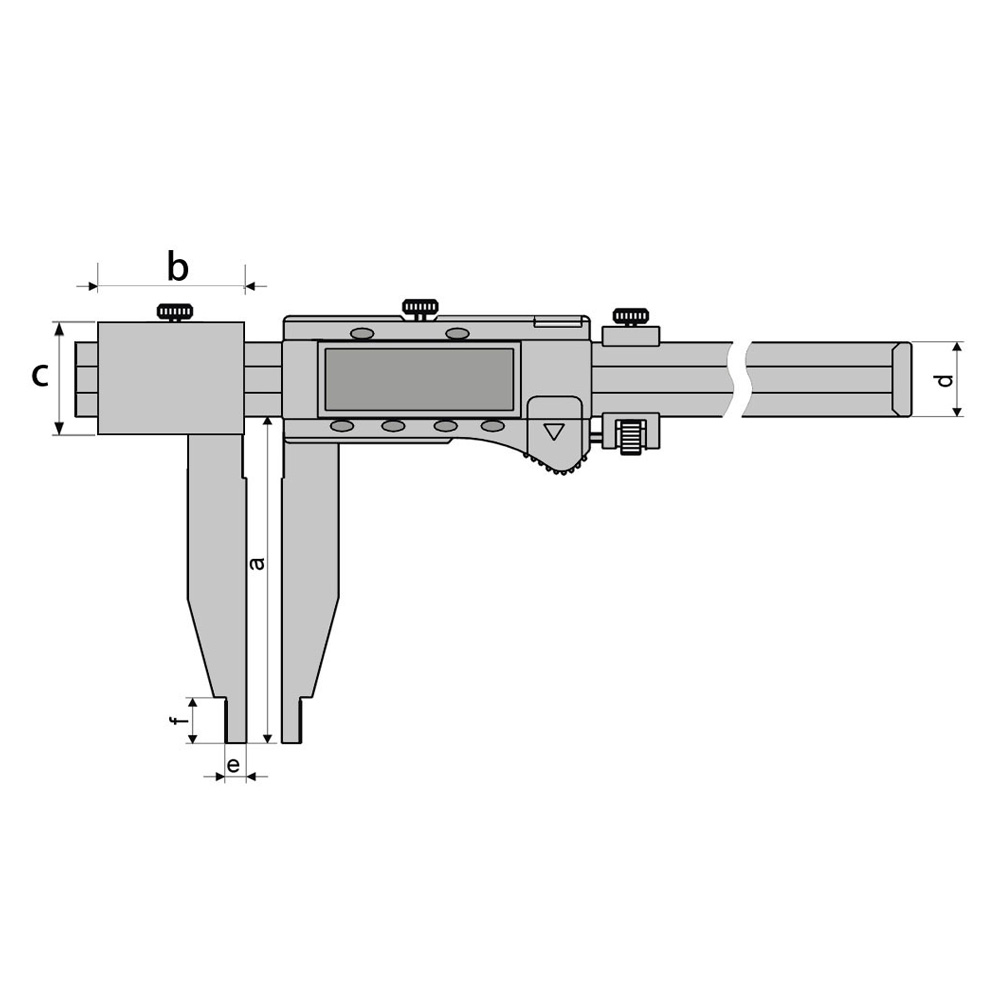

Technical Data
| Messbereich mm Range mm |
Schnabellänge a mm Jaws a mm |
Genauigkeit mm Accuracy mm |
b mm | c mm | d mm | e mm | f mm |
| 1000 | 150 | 0,12 | 60 | 55 | 31 | 10 | 24 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for caliper until 1000 mm - for analog and digital caliper untill range 1000 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Connection cable for devices with RB 2 data output - length about 40 cm- connection cable RB 5 / RB 2 for connecting the measuring device to the USB interface no. 220.250.2
DAkkS certification for caliper > 500 - 1000 mm - for analog and digital caliper range > 500 - 1000 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618
