Digital control caliper 1000 x 150 mm without points 3V

Messwelt

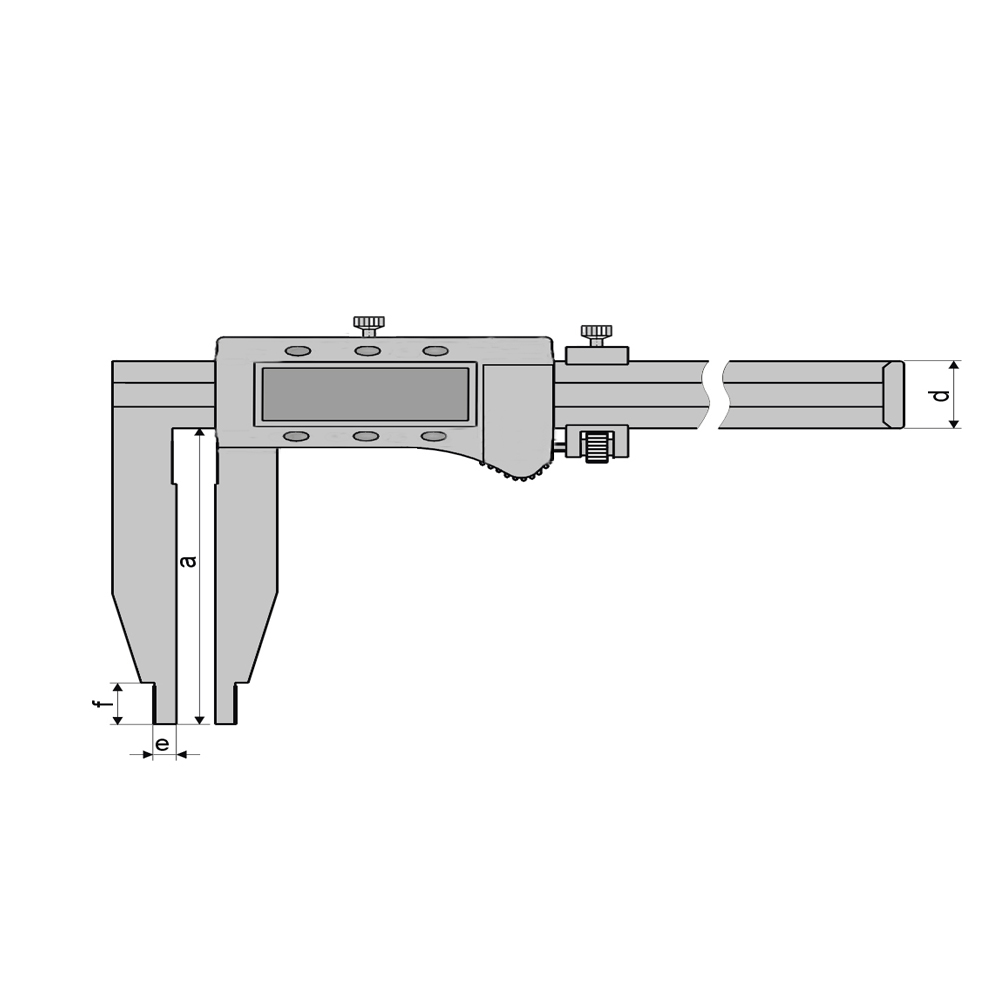

Drawing Digital control caliper 2000 x 300 mm without points 3V

€334.80*

% €372.00* (10% saved)

€398.41 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 217.055

Customs tariff number 9017 3000

European Article Number 4054469110950

Weight 5,5 kg

Stock: 26

Related links:

Request Item

Product information "Digital control caliper 1000 x 150 mm without points 3V"

Digital control caliper 1000 x 150 mm without points

- measuring system with 3V
- made of stainless steel, hardened
- with fine adjustment
- accuracy manufacture standard
- reading 0,01 mm oder 0,0005"
- with on/off, mm/inch, 0/abs, hold, tol and preset button
- Data output (RB 5)
- in case/box (for transport only!)

Accuracy 0,07 mm
Jaws 150 mm
Range 1000 mm

Accuracy:	0,07 mm
Data output:	RB 5
Jaws:	150 mm
Range:	0 - 1000 mm
Reading:	0,01 mm
Type:	Measuring system with 3 V, digital, made of stainless steel, hardened, with fine adjustment, without points

Technical Data

Messbereich mm Range mm	Schnabellänge a mm Jaws a mm	Genauigkeit mm Accuracy mm	d mm	e mm	f mm
1000	150	0,07	31	10	24
