Digital depth caliper 0 - 150 mm DIN 862 3V
Product information "Digital depth caliper 0 - 150 mm DIN 862 3V"
Digital depth caliper 0 - 150 mm with metal casing
- made of stainless steel, hardened
- reading 0,01 mm or 0,0005"
- accuracy DIN 862
- electronic with 3V system
- with metal casing
- with on/off, zero, unit and hold button
- with RS232C data output (RB5)
- base 100 mm
- in case/box
Range 0 - 150 mm
| Accuracy: | DIN 862 |
|---|---|
| Base: | 100 mm |
| Data output: | RB 5 |
| Range: | 0 - 150 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel, hardened, with metal casing |

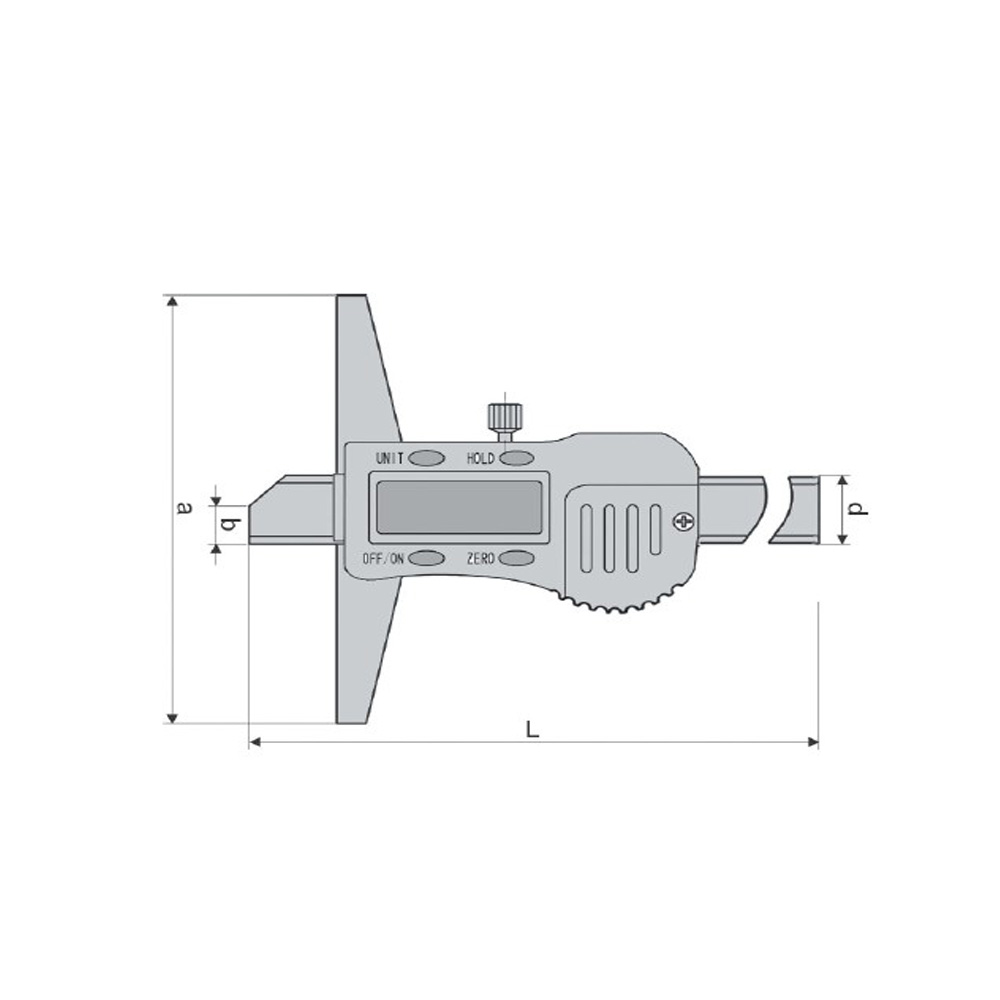

Technical Data
| Messbereich mm Range mm |
Brückenlänge a mm Base a mm |
b mm | d mm |
| 150 | 100 | 6 | 16 |
