Digital depth caliper 150 x 100 mm DIN 862
€41.46*
Available, delivery time: 1-3 workdays
Product information "Digital depth caliper 150 x 100 mm DIN 862"
Digital depth caliper 150 x 100 mm
- made of stainless steel, hardened
- reading 0,01 mm or 0,0005"
- accuracy DIN 862
- electronic with 3 V system
- with on/off, zero, unit and hold button
- with RS232C data output (RB5)
- base 100 mm
- in case/box
Range 0 - 150 mm
| Accuracy: | DIN 862 |
|---|---|
| Base: | 100 mm |
| Data output: | RB 5 |
| Range: | 0 - 150 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel, hardened |

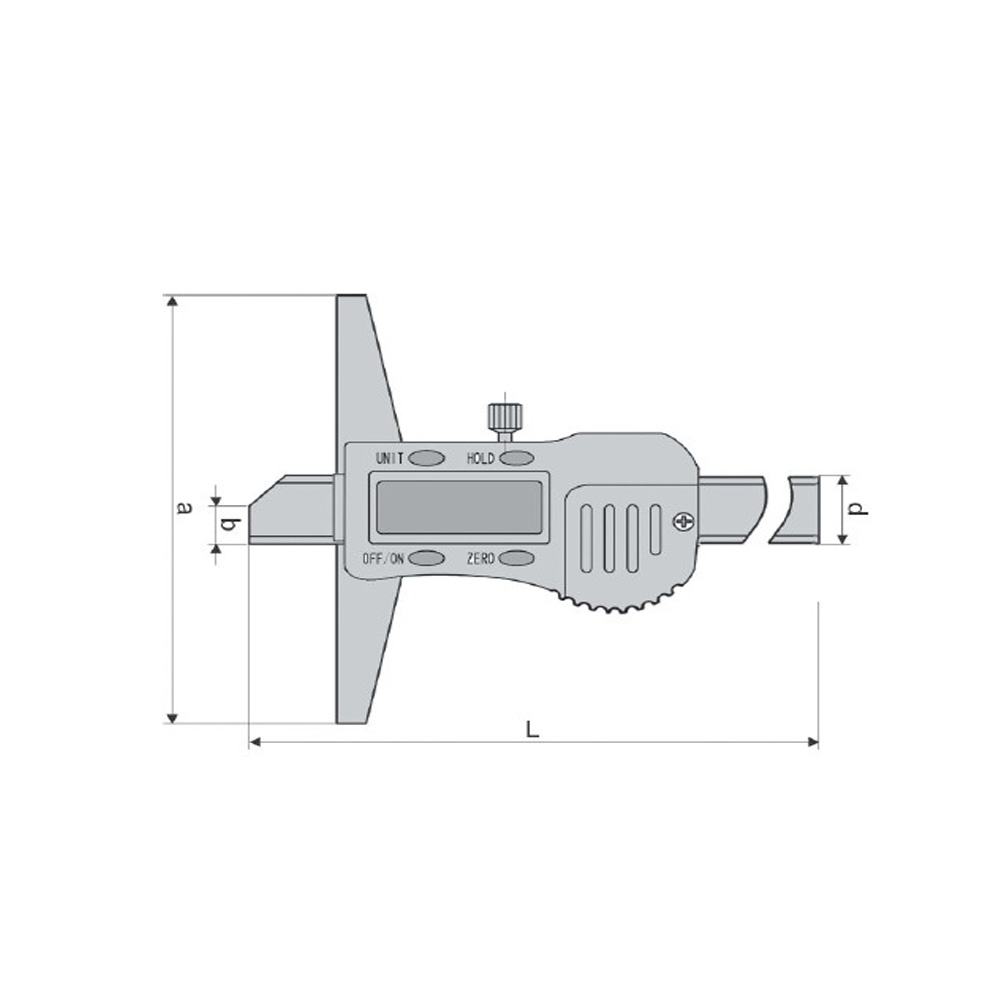

Technical Data
| Messbereich mm Range mm |
Brückenlänge a mm Base a mm |
b mm | d mm |
| 150 | 100 | 8,5 | 14,5 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Extension base 300 mm - length 300 mm - suitable for digital depth caliper until 300 mm
Connection cable for devices with RB 5 data output - length about 100 cm- connection cable RB 5 / RB 5 for connecting the measuring device to the USB interface no. 220.250.2
Certification for depth caliper until 200 mm - for analog and digital depth caliper untill range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
