Digital gear thickness gauge with fine adjustment M2 - M30
€110.40*
Available, delivery time: 1-3 workdays
Product information "Digital gear thickness gauge with fine adjustment M2 - M30"
Digital gear thickness gauge with fine adjustment
- for measuring of gear thickness, range M2 - M30
- made of stainless steel, throughout hardened and tempered, with fine adjustment
- digital display with ON/OFF, mm/inch and ZERO button
- reading 0,1 mm or 0,0005 mm
- accuracy 0,03 mm
- in case/box
Range M2 - 30 mm
| Accuracy: | 0,03 mm |
|---|---|
| Range: | M 2 - 30 mm |
| Reading: | 0,01 mm |
| Type: | digital, for measuring of gear thickness, made of stainless steel, hardened |

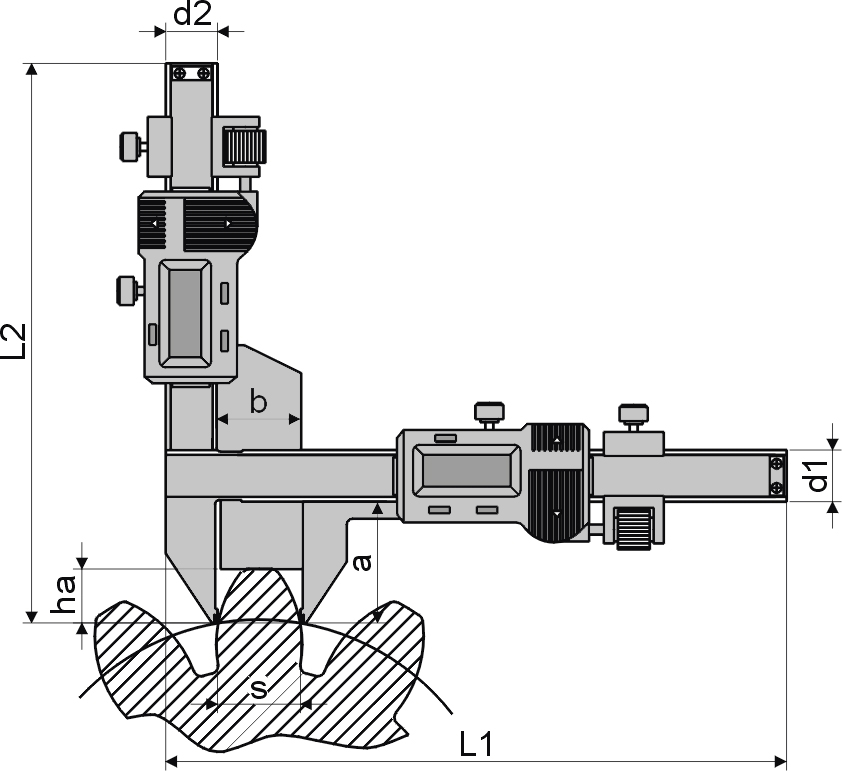

Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |
L1 mm | L2 mm | a mm | b mm | d1 mm | d2 mm |
| M 2 - 30 | 0,03 | 166 | 166,0 | 30,5 | 21 | 13 | 13 |
