Digital pocket caliper 300 mm range DIN 862
€75.00*
Available, delivery time: 1-3 workdays
Product information "Digital pocket caliper 300 mm range DIN 862 "
Digital caliper 300 mm range DIN 862
- measuring system with 3 V
- scale with glass rail for precison sampling
- made of stainless steel, hardened
- 4- way measurement
- with ON/OFF, ZERO, UNIT and HOLD buttons
(with HOLD button the measuring value can be memorized for later reading)
- data output (RB 5)
- usable with or without roll (fitting included)
- in case/box
Range 0 - 300 mm
| Accuracy: | 0,03 mm |
|---|---|
| Data output: | RB 5 |
| Range: | 0 - 300 mm |
| Type: | digital, made of stainless steel, hardened, Measuring system with 3 V |

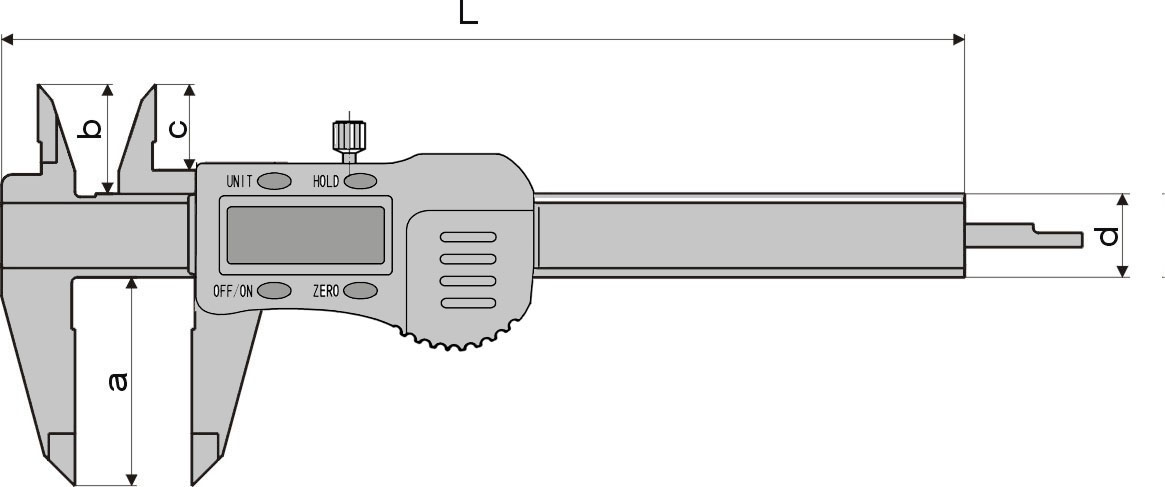

Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |
a mm | b mm | d mm |
| 300 | 0,03 | 60 | 26 | 17 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
