Digital pocket caliper 300 mm metal casing DIN 862

Messwelt

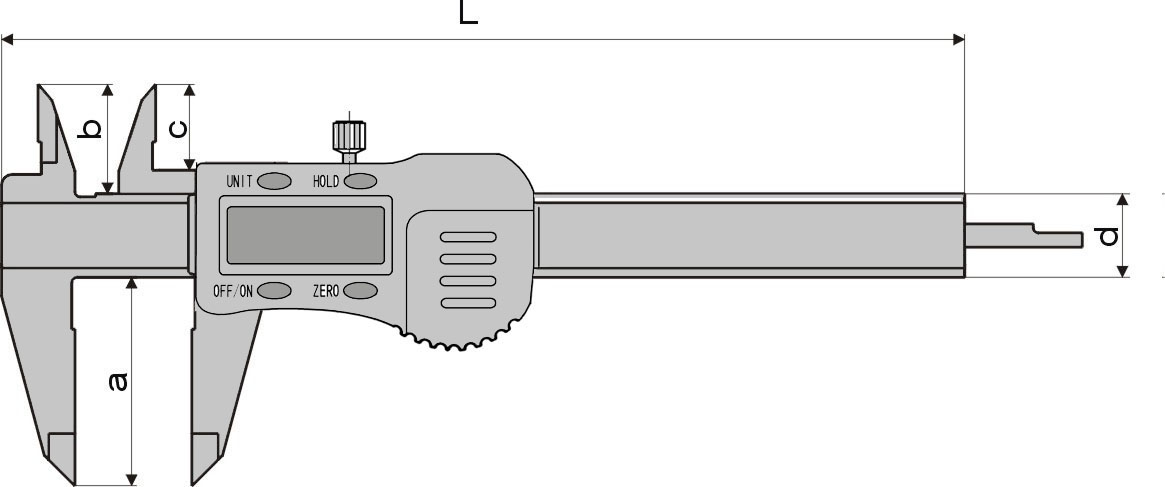

Technical drawing Digital pocket caliper 0 - 150 mm DIN 862

€81.60*

€97.10 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 216.127.N

Customs tariff number 9017 3000

European Article Number 4054469159690

Weight 0,73 kg

Stock: 192

Related links:

Request Item

Product information "Digital pocket caliper 300 mm metal casing DIN 862"

Digital pocket caliper 300 mm range metal casing

- measuring system with 3 V
- electronic in metal casing
- scale with glass rail for precision sampling
- made of stainless steel, hardened
- usable to 4- way measurement
- with ON/OFF, ZERO, UNIT and HOLD buttons
(with HOLD button the measuring value can be memorized for later reading)
- data output (RB 5)
- usable with or without roll (fitting included)
- in case/box

Range 0 - 300 mm

Accuracy:	0,03 mm
Data output:	RB 5
Range:	0 - 300 mm
Type:	Measuring system with 3 V, digital, made of stainless steel, hardened, with metal casing

Technical Data

Messbereich mm Range mm	Genauigkeit mm Accuracy mm	a mm	b mm	d mm
300	0,03	60	26	17

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.

Accessories

Certification for caliper range > 200 - 500 mm

Certification for caliper > 200 - 500 mm - for analog and digital caliper until range > 200 - 500 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard

€20.50*

Stock: -6

Connection cable for measuring devices with RB 5 data output about 100 cm

Connection cable for devices with RB 5 data output - length about 100 cm- connection cable RB 5 / RB 5 for connecting the measuring device to the USB interface no. 220.250.2

€11.94*

Stock: 5

DAkkS certification for caliper range > 200 - 500 mm

DAkkS certification for caliper 200 - 500 mm - for analog and digital caliper range > 200 - 500 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618

€33.60*

Stock: -2

Similar products

Control caliper 300 x 100 mm with points DIN 862

Control caliper 300 x 100 mm with points - made of stainless steel- without fine adjustment- scale and nonius satin chrome finished- reading 0,05 mm / 1/128" - accuracy DIN 862- in case/box (for transport only) Jaws 100 mmRange 300 mm

€88.20*

Stock: 26

Digital pocket caliper 0 - 200 mm metal casing 3V DIN 862

Digital pocket caliper 0 - 200 mm metal casing - DIN 862, measuring system with 3 V- electronic in metal casing- scale with glass rail for precision sampling- made of stainless steel, hardened- usable to 4- way measurement - with ON/OFF, ZERO, UNIT and HOLD buttons (with HOLD button the measuring value can be memorized for later reading)- data output (RB 5)- usable with or without roll (fitting included)- in case/box Range 0 - 200 mm

€56.76*

Stock: 115

Digital pocket caliper 300 mm range DIN 862

Digital caliper 300 mm range DIN 862 - measuring system with 3 V- scale with glass rail for precison sampling- made of stainless steel, hardened- 4- way measurement- with ON/OFF, ZERO, UNIT and HOLD buttons (with HOLD button the measuring value can be memorized for later reading)- data output (RB 5)- usable with or without roll (fitting included)- in case/box Range 0 - 300 mm

€75.00*

Stock: 73

Digital pocket caliper 300 mm with SET/PRESET button DIN 862

Digital caliper 300 mm with SET/PRESET button - measuring system with 3 V, DIN 862- electronic in metal casing- scale with glass rail for precision sampling- made of stainless steel, hardened- usable to 4- way measurement - with ON/OFF, SET/PRESET button - data output (RB 5)- usable with or without roll (fitting included)- in case/box Range 0 - 300 mm

€84.00*

Stock: 19

Control caliper 300 x 100 mm without points DIN 862

Control caliper 300 x 100 mm without points - made of stainless steel- without fine adjustment- scale and nonius satin chrome finished- reading 0,05 mm / 1/128" - accuracy DIN 862- in case/box (for transport only) Jaws 100 mmRange 300 mm

€73.20*

Stock: 15

Digital pocket caliper 300 mm with certificate DIN 862

Digital pocket caliper 300 mm with certificate - with fraction display - made of stainless steel, hardened - usable to 4-way measurement - with on/off, zero andmm/inch/F button - reading 0,01 mm, 0,0005" or 1/128" - data output RS232C (RB2) - accuracy 0,04 mm - with certification - in box/case Range 300 mm

€105.90*

Stock: 5
