Digital pocket caliper 300 mm with certificate DIN 862

Messwelt

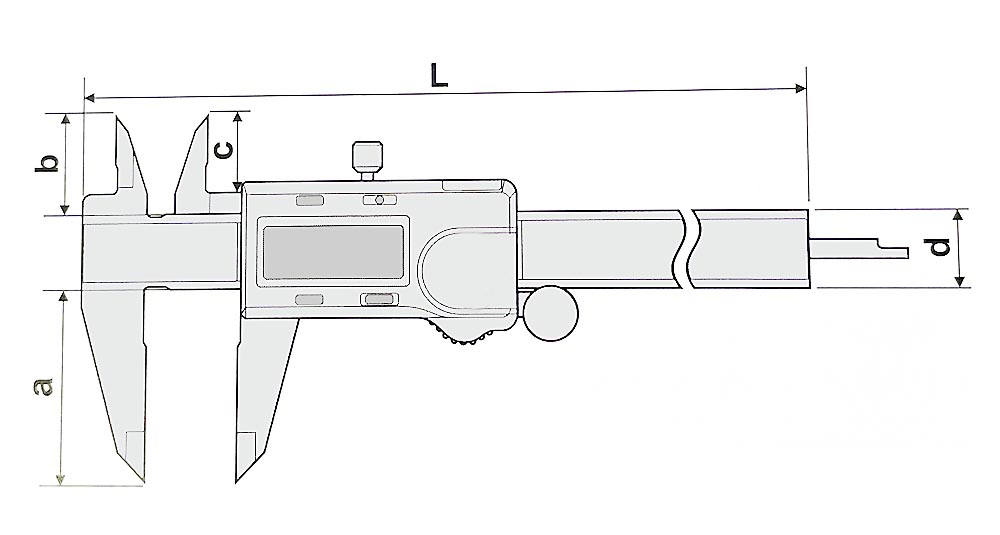

$Technical drawing Digital pocket caliper 0-150 mm with frac display incl. certificate$

$Technical drawing Digital pocket caliper 0-150 mm with frac display incl. certificate$

€105.90*

€126.02 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: K.216.173

Customs tariff number 9017 3000

European Article Number 4054469147079

Weight 0,2 kg

Stock: 5

Related links:

Request Item

Product information "Digital pocket caliper 300 mm with certificate DIN 862"

Digital pocket caliper 300 mm with certificate

- with fraction display
- made of stainless steel, hardened
- usable to 4-way measurement
- with on/off, zero andmm/inch/F button
- reading 0,01 mm, 0,0005" or 1/128"
- data output RS232C (RB2)
- accuracy 0,04 mm
- with certification
- in box/case

Range 300 mm

Accuracy:	0,03 mm
Calibriation certificate:	with
Data output:	RB 6
Range:	0 - 300 mm
Reading:	0,01 mm
Type:	digital, made of stainless steel, hardened, with fraction display

Technical Data

Messbereich mm Range mm	Genauigkeit mm Accuracy mm	a mm	b mm	d mm
300	0,04	60	24	16

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.

Accessories

USB interface "E" for digital measuring instruments with capacitiv system

USB interface for measuring instruments with capacitiv system - "E" english data format (decimal separator ".")- PC connection interface via USB - with connecting cable to the PC, length about 95 cm and connecting cable RB 6 to the measuring instrument, length about 100 cm - measuring value can be transfered directly with the USB interface to the PC and saved as text or excel table- data entry by enter key or foot switch ( connector Ø 3,5 mm)

€124.80*

Stock: 9

USB interface "D" for digital measuring instruments with capacitiv system

USB interface for measuring instruments with capacitiv system - "D" german data format (decimal separator ",")- PC connection interface via USB - with connecting cable to the PC, length about 95 cm and connecting cable RB 6 to the measuring instrument, length about 100 cm - measuring value can be transfered directly with the USB interface to the PC and saved as text or excel table- data entry by enter key or foot switch ( connector Ø 3,5 mm)

€124.80*

Stock: 4
