Digital pocket caliper 0-200 mm IP 54 DIN 862

Messwelt

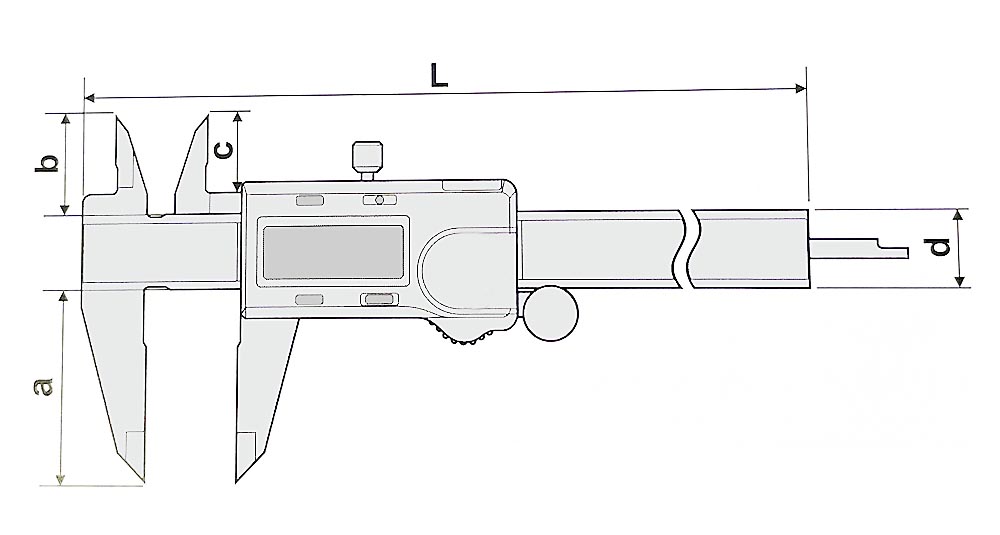

$Technical drawing Digital pocket caliper 0-150 mm with frac display incl. certificate$

€70.80*

€84.25 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 216.226

Customs tariff number 9017 3000

European Article Number 4054469158297

Weight 0,4 kg

Stock: 41

Related links:

Request Item

Product information "Digital pocket caliper 0-200 mm IP 54 DIN 862"

Digital caliper 0-200 mm range IP 54

- absolute system with 3 V, DIN 862
- scale with glass rail for precision sampling
- no speed limit when moving
- IP 54 protection
- made of stainless steel, 4- way measurement
- reading 0,01 mm or 0,0005"
- with ON/OFF, 0/ABS, mm/inch and origin buttens
- data output (RB 6)
- useable with or without roll
- in case/box

Range 0 - 200 mm

Accuracy:	0,02 mm
Data output:	RB 6
Protection class:	IP 54
Range:	0 - 200 mm
Reading:	0,01 mm
Type:	absolute system with 3 V, digital, made of stainless steel, hardened

Technical Data

Messbereich mm Range mm	Genauigkeit mm Accuracy mm	a mm	b mm	d mm
200	0,02	50	24	16

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.

Accessories

Depth measuring base 100 x 8,0 mm for caliper until 300 mm

Depth measuring base 100 x 8,0 mm for caliper - for caliper until 300 mm - made of stainless steel - hardened, ground and lappedBase (L x B): 100 x 8,0 mm

€11.22*

Stock: 39

USB interface "E" for digital measuring instruments with ABS-System

USB interface for measuring instruments with ABS-System - "E" english data format (decimal separator ".")- PC connection interface via USB - with connecting cable to the PC, length about 95 cm and connecting cable RB 6 to the measuring instrument, length about 100 cm - measuring value can be transfered directly with the USB interface to the PC and saved as text or excel table- data entry by enter key or foot switch ( connector Ø 3,5 mm)

€124.80*

Stock: 6

Bluetooth data transmission device for measuring instruments with RB 6 data output

Bluetooth data transmission device for measuring instruments - for digital measuring instruments with RB 6 data output- connection with PC with bluetooth device- small dimensions- 10 meter transmission distance- data transmission with sound acoustic confirmation Usable for Order-No.:216.225 - 216.227219.096 - 219.098301.021 - 301.035302.074 - 302.084312.210 - 312.222

€66.00*

Stock: 6

Depth measuring base 80 x 7,5 mm for caliper until 300 mm

Depth measuring base 80 x 7,5 mm for caliper - for caliper until 300 mm - made of stainless steel - hardened, ground and lappedBase (L x B): 80 x 7,5 mm

€9.72*

Stock: 277

Certification for caliper until range 200 mm

Certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard

€13.10*

Stock: -10

DAkkS certification for caliper until range 200 mm

DAkkS certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618

€20.60*

Stock: -2

USB interface "D" for digital measuring instruments with ABS-System

USB interface for measuring instruments with ABS-System - "D" german data format (decimal separator ",")- PC connection interface via USB - with connecting cable to the PC, length about 95 cm and connecting cable RB 6 to the measuring instrument, length about 100 cm - measuring value can be transfered directly with the USB interface to the PC and saved as text or excel table- data entry by enter key or foot switch ( connector Ø 3,5 mm)

€124.80*

Stock: 8
