Digital pocket caliper 300 mm IP 54 protection DIN 862

Messwelt

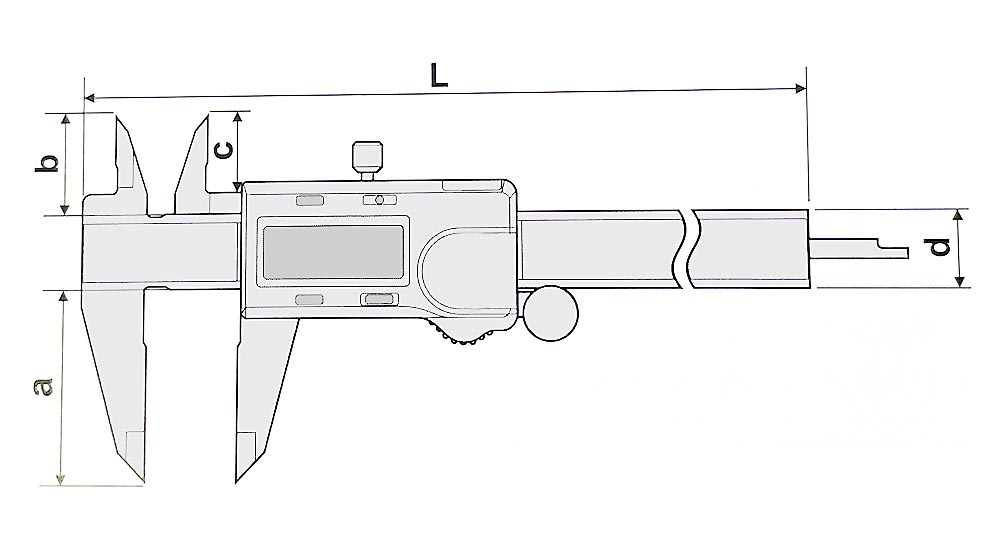

$Technical drawing Digital pocket caliper 0-150 mm with frac display incl. certificate$

€93.60*

€111.38 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 216.227

Customs tariff number 9017 3000

European Article Number 4054469158303

Weight 0,4 kg

Stock: 24

Related links:

Request Item

Product information "Digital pocket caliper 300 mm IP 54 protection DIN 862"

Digital pocket caliper 300 mm IP 54 protection

- absolute system with 3 V
- scale with glass rail for precision sampling
- no speed limit when moving
- IP 54 protection
- made of stainless steel, 4- way measurement
- reading 0,01 mm or 0,0005"
- with ON/OFF, 0/ABS, mm/inch and origin buttens
- data output (RB 6)
- useable with or without roll
- in case/box

Range 0 - 300 mm

Accuracy:	0,03 mm
Data output:	RB 6
Protection class:	IP 54
Range:	0 - 300 mm
Reading:	0,01 mm
Type:	absolute system with 3 V, digital, made of stainless steel, hardened

Technical Data

Messbereich mm Range mm	Genauigkeit mm Accuracy mm	a mm	b mm	d mm
300	0,03	60	26	17

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
