Digital micrometer head 0 - 25 mm DIN 863

Skip image gallery
Digital micrometer head 0 - 25 mm DIN 863

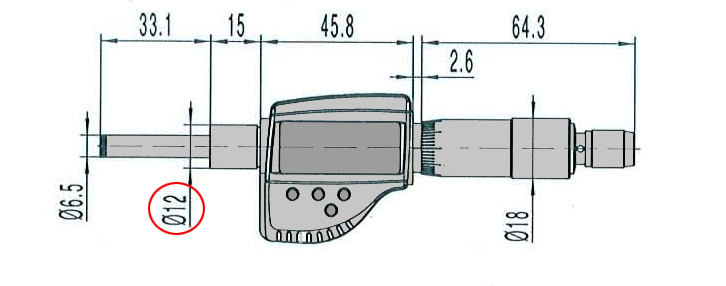

Technical drawing Digital micrometer head 0 - 25 mm DIN 863
Digital micrometer head 0 - 25 mm DIN 863
Technical drawing Digital micrometer head 0 - 25 mm DIN 863

€99.00*

€117.81 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 302.091.G
Customs tariff number 9017 3000
European Article Number 4054469114514
Weight 0,5 kg
Stock: 7

Related links:
Request Item

Product information "Digital micrometer head 0 - 25 mm DIN 863"

Digital micrometer head 0 - 25 mm

- with carbide measuring face
- spindle Ø 6,5 mm
- flat measuring face
- with ratchet
- shank 12 h7
- display with on/0, mm/inch, abs and hold button
- reading 0,001 mm
- accuracy 0,004 mm, DIN 863
- with data output RB 4

Technical Data

Messbereich mm
Range mm		 Messfläche
Meas. Face		 Genauigkeit  mm
Accuracy  mm
0 - 25 planparallel
flat		 0,004
