Digital pistol three point internal gauge 20 - 50 mm

Messwelt

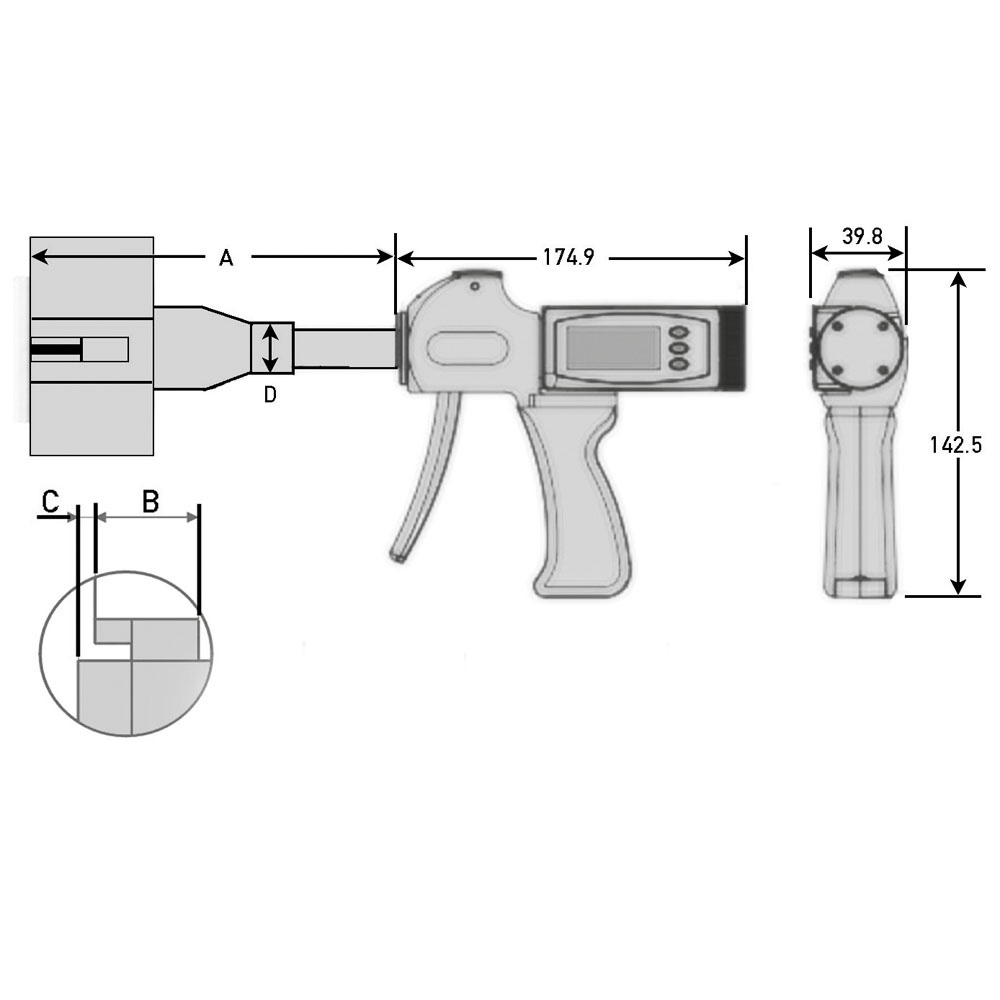

Drawing Digital pistol three point internal gauge 20 - 50 mm

€930.00*

€1,106.70 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 312.326.O

Customs tariff number 9017 3000

European Article Number 4054469178486

Weight 1,8 kg

Stock: 6

Related links:

Request Item

Product information "Digital pistol three point internal gauge 20 - 50 mm"

Digital pistol three point internal gauge

- 4 pieces/ set
- range 20 - 50 mm
- for blind hole
- display rotate 90°, with on/off/set, hold, mm/inch/Mode button
- with bluetooth data output
- in case/box

Attention:
Setting standard an extension are not included!

Accuracy:	0,005 mm
Data output:	Bluetooth
Range:	20 - 50 mm
Reading:	0,001 mm
Set:	4 pcs.
Type:	digital
usable for measuring of:	blind hole

Technical Data

Messbereich mm Range mm	Messköpfe Measuring heads	Teil-Messbereiche mm Part range mm	C mm	A mm	B mm	D mm	Ablesung mm Reading mm	*Genauigkeit mm Accuracy* mm**
20 - 50 mm	4	20 - 25 25 - 30 30 - 40 40 - 50	0,5	90 90 105 105	8,0 8,0 14,0 14,0	15,8 15,8 23,5 23,5	0,001	0,005
* Bei vollanliegenden Messflächen! * At full contact of the measuring faces!

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.

Accessories

Setting ring gauge Ø 25 mm DIN 2250 Form C

Setting ring gauge Ø 25 mm DIN 2250 C - hardened ground and lapped- DIN 2250 form C- accuracy DIN 286, JS 3 Size : Ø 25 mm

€30.30*

Stock: 4

Setting ring gauge Ø 40 mm DIN 2250 Form C

Setting ring gauge Ø 40 mm DIN 2250 C - hardened ground and lapped- DIN 2250 form C- accuracy DIN 286, JS 3 Size : Ø 40 mm

€45.60*

Stock: 15

Extension 152,4 x Ø 15,8 mm for three point internal micrometer

Extension length 152,4 mm Ø 23,5 mm for three point internal micrometer - for three point internal micrometer Art.-Nr. 312.230.PN - 312.242.PN, Art.-Nr. 312.283.PN - 312.289.PN, Art. -Nr. 312.274.PN- 312.277.PN und Art.-Nr. 312.324.O - 312.327.O - for measuring range 20 - 25 mm, 25 - 30 mm- length 152,4 mm, Ø 23,5 mm- thread M10

€32.52*

Stock: 15

Extension 152,4 x Ø 23,5 mm for three point internal micrometer

Extension length 152,4 mm Ø 23,5 mm for three point internal micrometer - for three point internal micrometer Art.-Nr. 312.230.PN - 312.242.PN, Art.-Nr. 312.283.PN - 312.289.PN, Art. -Nr. 312.274.PN- 312.277.PN und Art.-Nr. 312.324.O - 312.327.O - for measuring range 30 - 40 mm, 40 - 50 mm- length 152,4 mm, Ø 23,5 mm- thread M18

€40.62*

Stock: 36

Certificate pistol threepoint internal micrometer set 20 - 50 mm

Certificate pistol threepoint internal micrometer 20 - 50 range - certification for pistol threepoint internal micrometer set range 20 - 50 mm- the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618

€77.20*

Stock: 0
