3-point internal micrometer set 20 - 50 mm digital IP 65 DIN 863
€1,083.00*
Available, delivery time: 1-3 workdays
Product information "3-point internal micrometer set 20 - 50 mm digital IP 65 DIN 863"
Digital 3-point internal micrometer set 20 - 50 mm IP 65
- four pieces per set
- with setting rings 25 mm, 40 mm and extension L 152,4 x Ø 15,8
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- suitable for measuring blind holes
- in case/box
Range 20 - 50 mm
| Accuracy: | 0,005 mm |
|---|---|
| Data output: | RB 6 |
| Range: | 20 - 25 mm, 25 - 30 mm, 30 - 40 mm, 40 - 50 mm |
| Reading: | 0,001 mm |
| Set: | 4 pcs. |
| Type: | digital, IP 65 |
| usable for measuring of: | blind hole |

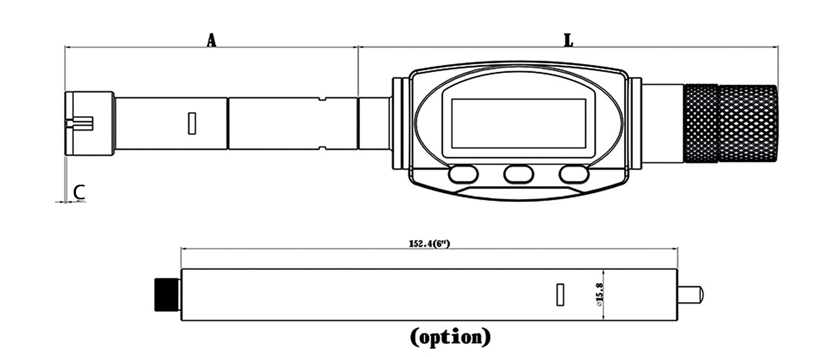

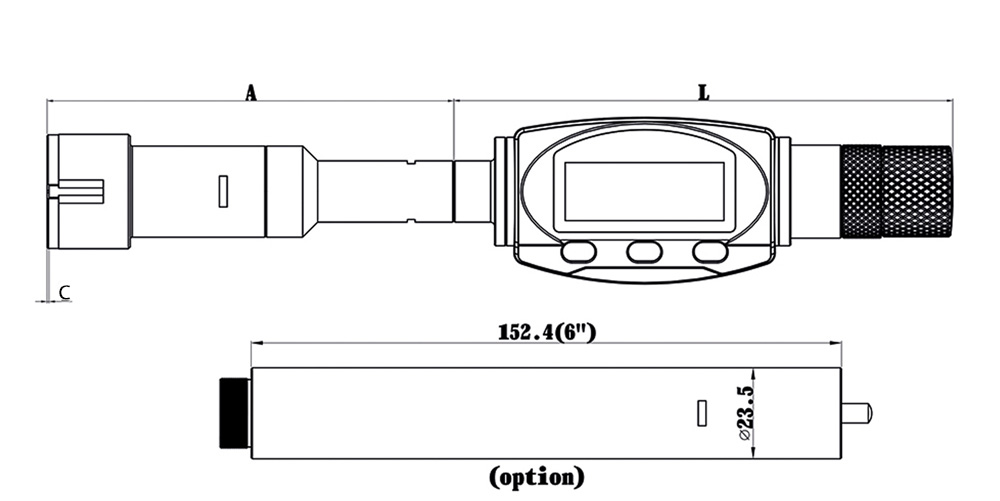

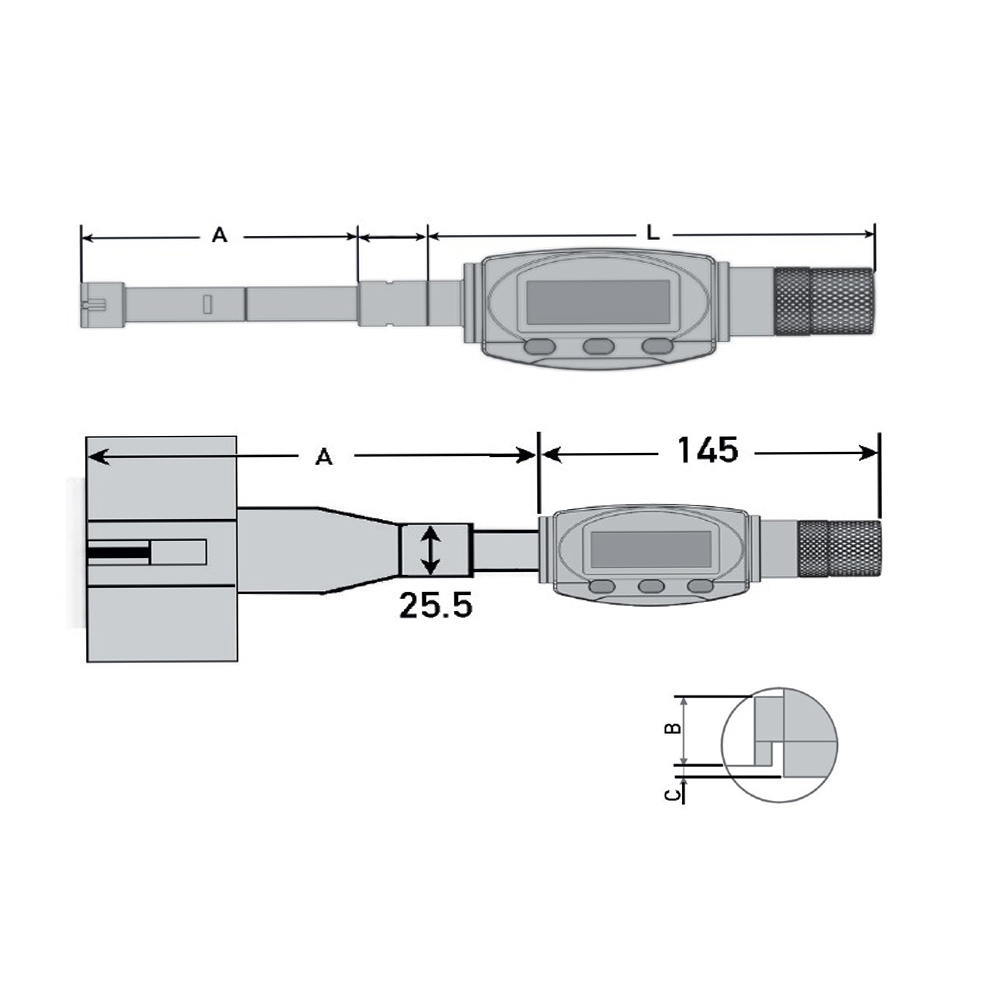

Technical Data
| Messbereich mm Range mm |
Einstellring mm Setting ring mm |
Verlängerung mm Extension mm |
C mm |
B mm |
A mm |
Ablesung mm Reading mm |
Genauigkeit* µm Accuracy* µm |
| 20 - 25 | 25 + 40 |
152,4 x Ø 15,8 |
0,5 | 8,0 | 90 | 0,001 | 0,005 |
| 25 - 30 | 0,5 | 8,0 | 90 | ||||
| 30 - 40 | 0,5 | 14,0 | 105 | ||||
| 40 - 50 | 0,5 | 14,0 | 105 | ||||
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification threepoint internal micrometer set until 50 mm - for analog and digital threepoint internal micrometer sets range 20 - 50 mm - for sets with 4 threepoint micrometers and 2 setting rings < 50 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Extension length 152,4 mm Ø 23,5 mm for three point internal micrometer - for three point internal micrometer Art.-Nr. 312.230.PN - 312.242.PN, Art.-Nr. 312.283.PN - 312.289.PN, Art. -Nr. 312.274.PN- 312.277.PN und Art.-Nr. 312.324.O - 312.327.O - for measuring range 20 - 25 mm, 25 - 30 mm- length 152,4 mm, Ø 23,5 mm- thread M10
Extension length 152,4 mm Ø 23,5 mm for three point internal micrometer - for three point internal micrometer Art.-Nr. 312.230.PN - 312.242.PN, Art.-Nr. 312.283.PN - 312.289.PN, Art. -Nr. 312.274.PN- 312.277.PN und Art.-Nr. 312.324.O - 312.327.O - for measuring range 30 - 40 mm, 40 - 50 mm- length 152,4 mm, Ø 23,5 mm- thread M18
Similar products

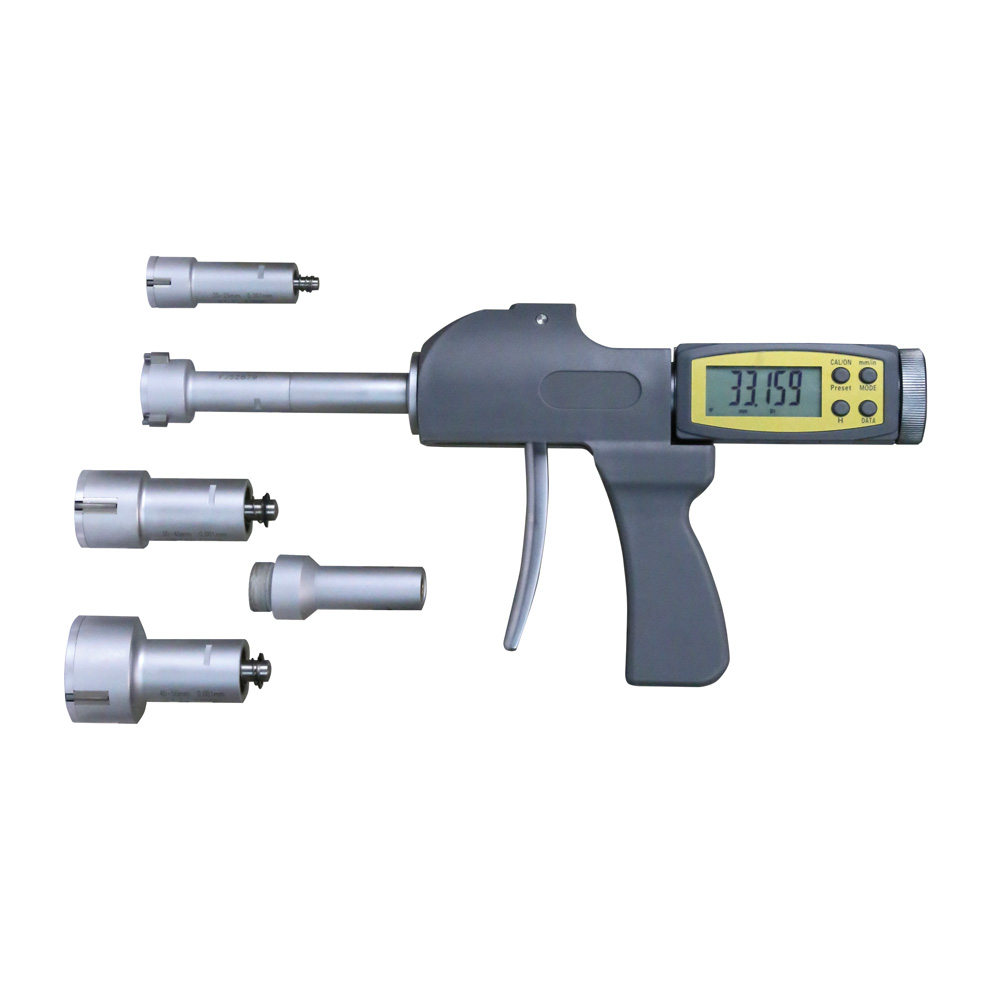

Digital pistol three point internal gauge - 4 pieces/ set- range 20 - 50 mm- for blind hole- display rotate 90°, with on/off/set, hold, mm/inch/Mode button- with bluetooth data output- in case/box Attention:Setting standard an extension are not included!
Digital three point internal micrometer 20 - 25 mm IP 65 - suitable for measuring blind holes- with carbide measuring faces, setting ring 25 mm and extension L 152,4 x Ø 15,8- Digital-Display with on/preset, mm/inch and hold button- water and dust protect (IP 65)- with data output RB 6- in case/box Range 20 - 25 mm

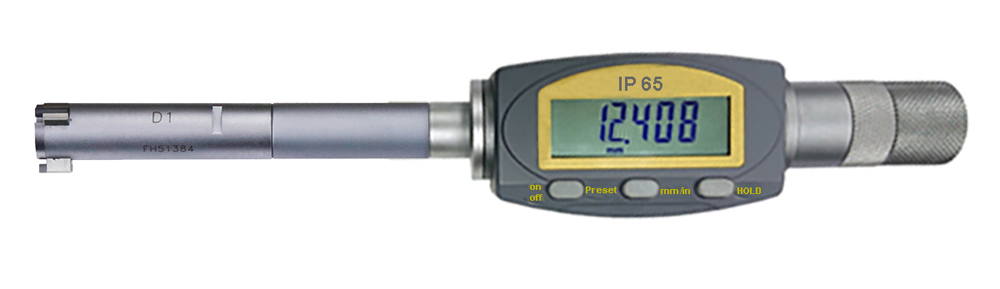

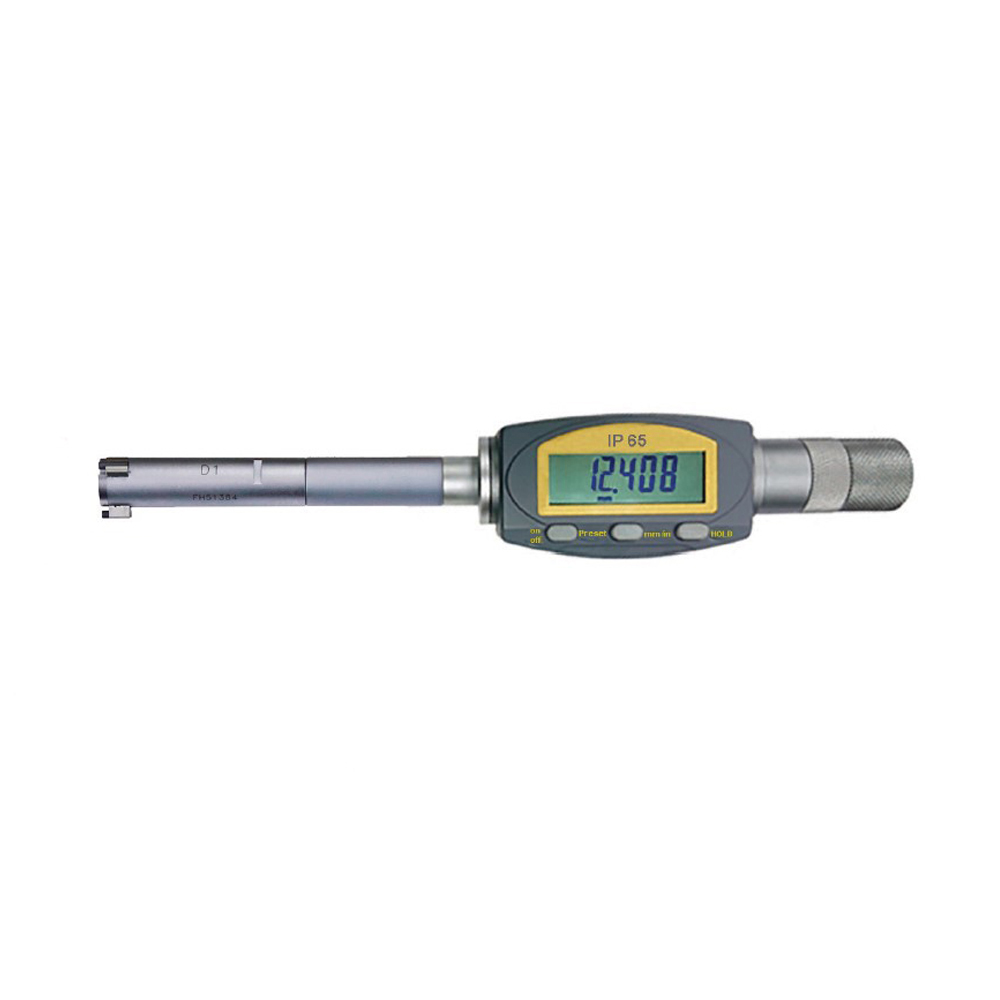

Digital three point internal micrometer 25 - 30 mm IP 65 - suitable for measuring blind holes- with carbide measuring faces, setting ring 25 mm and extension L 152,4 x Ø 15,8- Digital-Display with on/preset, mm/inch and hold button- water and dust protect (IP 65)- with data output RB 6- in case/box Range 25 - 30 mm
