Digital three point internal micrometer 25 - 30 mm IP 65 DIN 863
€303.00*
Available, delivery time: 1-3 workdays
Product information "Digital three point internal micrometer 25 - 30 mm IP 65 DIN 863"
Digital three point internal micrometer 25 - 30 mm IP 65
- suitable for measuring blind holes
- with carbide measuring faces, setting ring 25 mm and extension L 152,4 x Ø 15,8
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- in case/box
Range 25 - 30 mm
| Accuracy: | 0,005 mm |
|---|---|
| Data output: | RB 6 |
| Range: | 25 - 30 mm |
| Reading: | 0,001 mm |
| Type: | IP 65, digital |
| usable for measuring of: | blind hole |

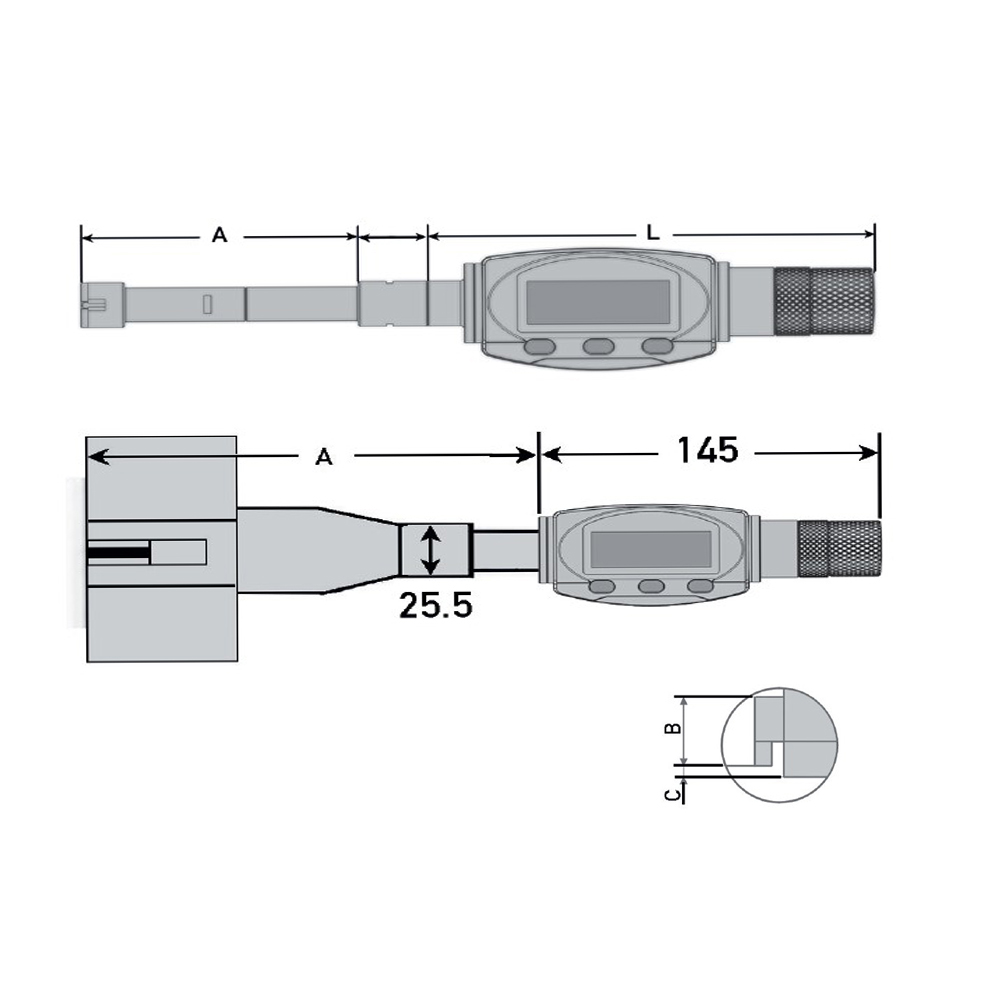

Technical Data
| Messbereich mm Range mm |
Einstellring mm Setting ring mm |
Verlängerung mm Extension mm |
C mm |
B mm |
A mm |
Ablesung mm Reading mm |
Genauigkeit* µm Accuracy* µm |
| 25 - 30 | 25 | 152,4 x Ø 15,8 | 0,5 | 8,0 | 90 | 0,001 | 0,005 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
