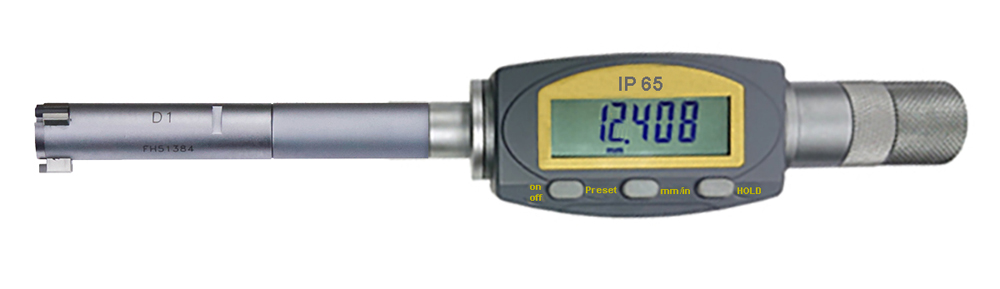

Digital three point internal micrometer 20 - 25 mm IP 65 DIN 863

Preview: Digital three point internal micrometer 20 - 25 mm IP 65 DIN 863 Preview: Technical drawing Digital three point internal micrometer 20 - 25 mm IP 65 DIN 863
Digital three point internal micrometer 20 - 25 mm IP 65 DIN 863

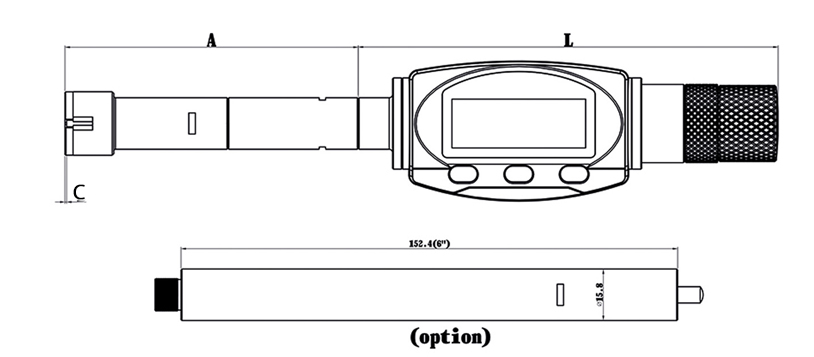

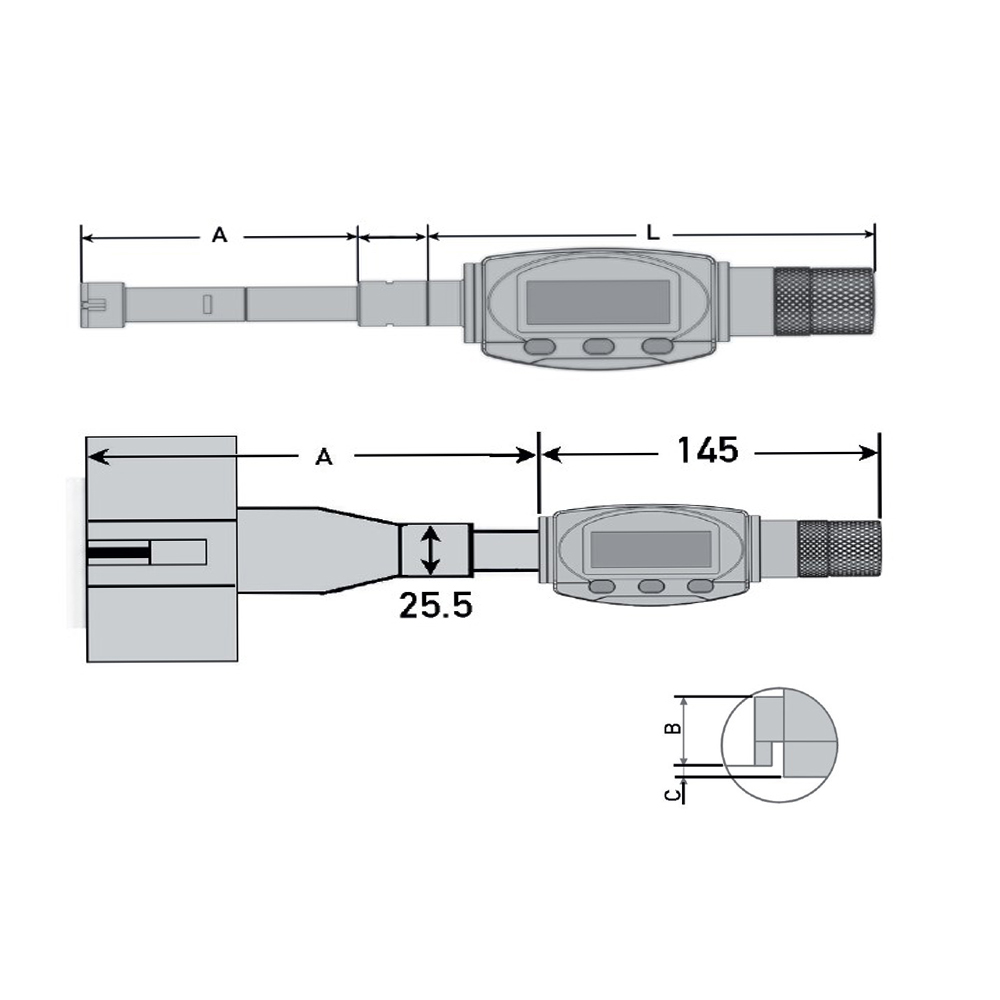

Technical drawing Digital three point internal micrometer 20 - 25 mm IP 65 DIN 863

€299.40 *
€356.29 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 312.235.PN
  • Customs tariff number: 9017 3000
  • European article number: 4054469179117
  • Weight: 1 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Digital three point internal micrometer 20 - 25 mm IP 65 - suitable for measuring blind... more
Close menu
Product information "Digital three point internal micrometer 20 - 25 mm IP 65 DIN 863"

Digital three point internal micrometer 20 - 25 mm IP 65

- suitable for measuring blind holes
- with carbide measuring faces, setting ring 25 mm and extension L 152,4 x Ø 15,8
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- in case/box

Range 20 - 25 mm

Range: 20 - 25 mm
Type: digital, IP 65
usable for measuring of: blind hole
Reading: 0,001 mm
Accuracy: 0,005 mm
Data output: RB 6
Related links to "Digital three point internal micrometer 20 - 25 mm IP 65 DIN 863"
Technical data
Messbereich mm Range mm Einstellring mm Setting ring mm... more
Zurück
Messbereich mm
Range mm		 Einstellring mm
Setting ring mm		 Verlängerung mm
Extension mm 		 A
mm		 C
mm		 L
mm		 Ablesung mm
Reading mm		 Genauigkeit* µm
Accuracy* µm
20 - 25 25 152,4 x Ø 15,8 90 0,5 128,8 0,001 0,005
* bei vollanliegenden Messflächen / at full contact of the measuring faces
Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Digital three point internal micrometer 20 - 25 mm IP 65 DIN 863"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

Accessories 2 Similar products Customers also bought Customers also viewed
Accessories 2
Certification for threepoint internal micrometer > 12 - 50 mm Certification for threepoint internal...
€38.70 *

Extension 152,4 x Ø 15,8 mm for three point internal micrometer Extension 152,4 x Ø 15,8 mm for three point...
€32.22 *
Stock: 28
Similar products

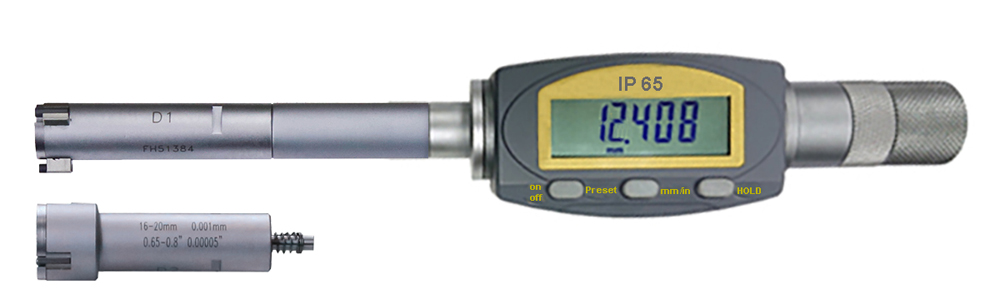

Digital three point internal micrometer 20 - 30 mm with two measuring heads IP 65 DIN 863 Digital three point internal micrometer 20 - 30...
€480.00 *
Stock: 2

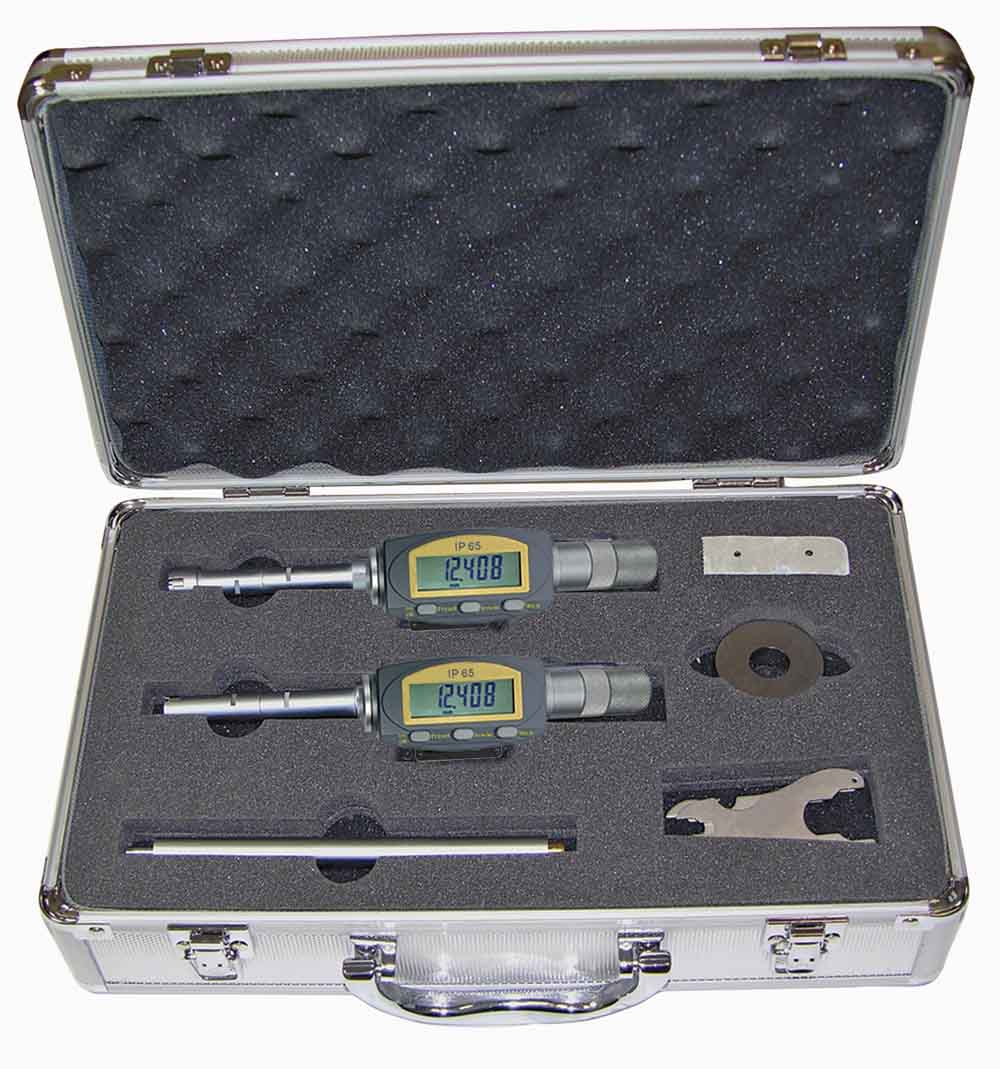

3-point internal micrometer set 20 - 50 mm digital IP 65 DIN 863 3-point internal micrometer set 20 - 50 mm...
