Digital three point internal micrometer 20 - 30 mm

Digital three point internal micrometer 20 - 30 mm with two measuring heads IP 65 DIN 863

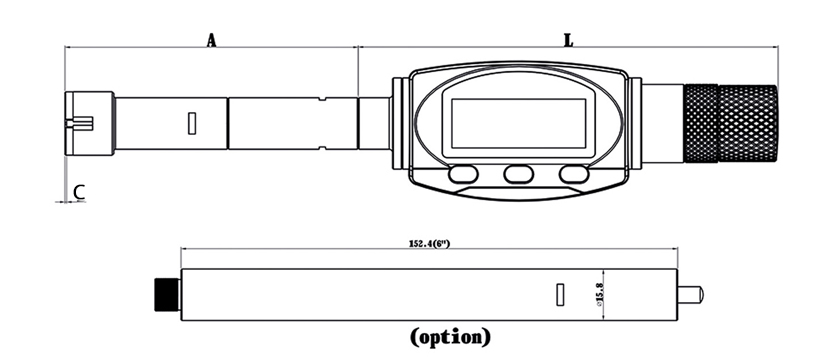

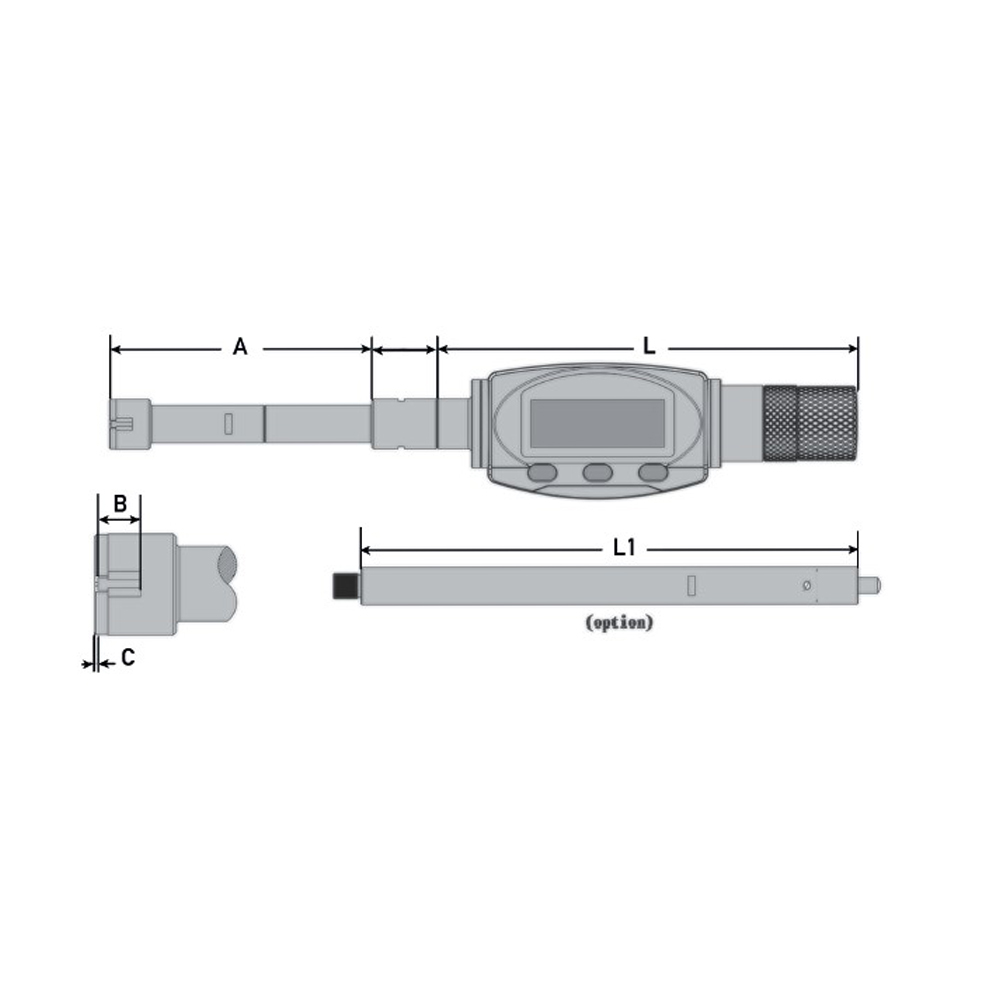

Technical drawing Digital three point internal micrometer 20 - 30 mm with two measuring heads IP 65 DIN 863

€480.00 *

€571.20 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 312.286.PN
Customs tariff number: 9017 3000
European article number: 4054469179278
Weight: 1,8 kg
In stock: 2

Digital three point internal micrometer 20 - 30 mm IP 65 - one digital display with two... more

Close menu

Product information "Digital three point internal micrometer 20 - 30 mm IP 65 DIN 863"

Digital three point internal micrometer 20 - 30 mm IP 65

- one digital display with two measuring heads
- with setting ring 25 mm and extension L 152,4 x Ø 15,8
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- suitable for measuring blind holes
- in case/box

Range 20 - 30 mm

Range:	20 - 25 mm, 25 - 30 mm
Type:	digital, IP 65
usable for measuring of:	blind hole
Set:	2 pcs.
Reading:	0,001 mm
Accuracy:	0,005 mm
Data output:	RB 6

Related links to "Digital three point internal micrometer 20 - 30 mm IP 65 DIN 863"

Messbereich mm Range mm Einstellring mm Setting ring mm... more

Zurück

Messbereich mm Range mm	Einstellring mm Setting ring mm	Verlängerung mm Extension mm	A mm	C mm	L mm	Ablesung mm Reading mm	*Genauigkeit µm Accuracy* µm**
20 - 25	25	152,4 x Ø 15,8	90	0,5	128,8	0,001	0,005
25 - 30	25	152,4 x Ø 15,8	90	0,5	128,8	0,001	0,005
