Thread micrometer analogue 125 - 150 mm
€189.00*
Available, delivery time: 1-3 workdays
Product information "Thread micrometer analogue 125 - 150 mm"
Thread micrometer 125 - 150 mm
- non-rotating spindle
- for screw inserts Ø = 5 mm
- with setting standard (125 x 60°)
- analogue, reading 0,01 mm
- with friction ratchet
- in case/box
- delivery without thread inserts
Range 125 - 150 mm
| Accuracy: | 0,012 mm |
|---|---|
| Range: | 125 - 150 mm |
| Reading: | 0,01 mm |
| Type: | analogue, Thread micrometer, with ratchet friction timble |
Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |

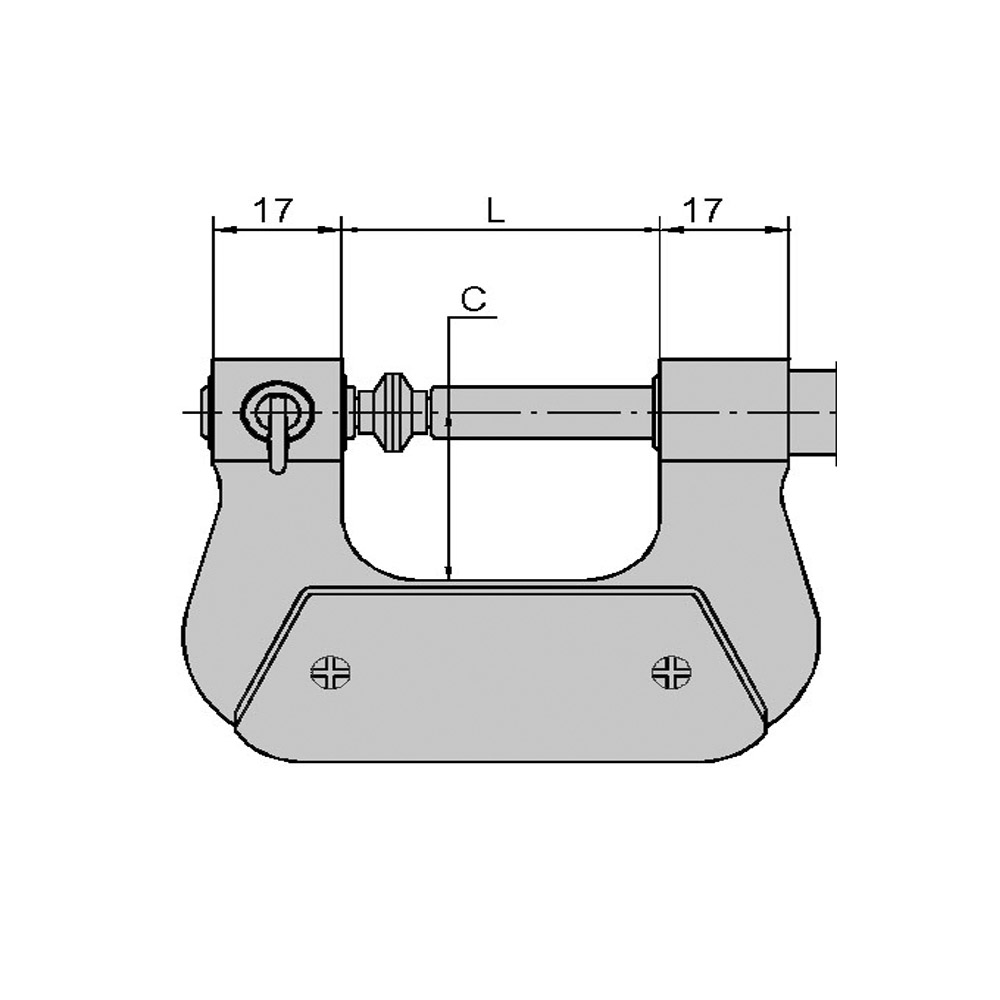

C mm | L mm | Einstellmaß mm Standard mm |
| 125 - 150 | 0,012 | 82 | 168 | 125 x 60° |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
