Thread micrometer analogue 175 - 200 mm

Messwelt

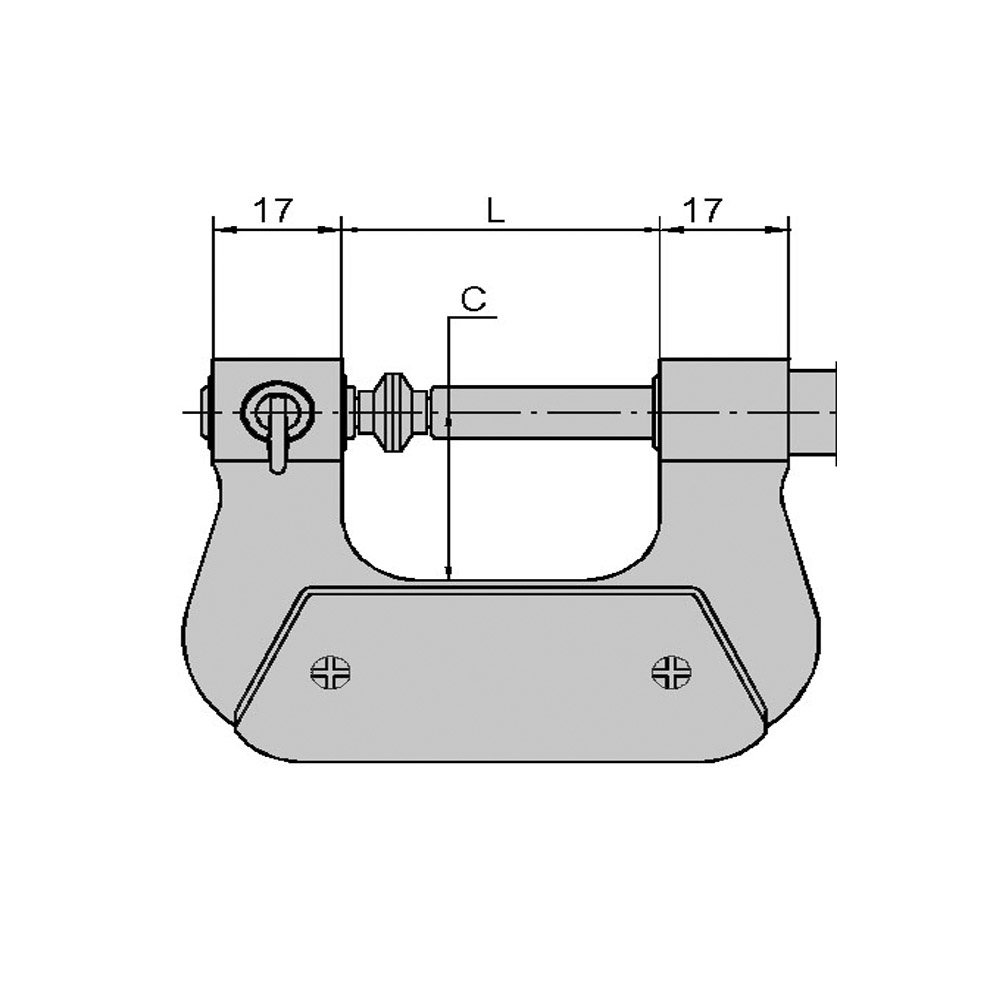

Drawing Digital thread micrometer 0 - 25 mm with ratchet

€207.00*

€246.33 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 309.098

Customs tariff number 9017 3000

European Article Number 4054469118307

Weight 1,7 kg

Stock: 5

Related links:

Request Item

Product information "Thread micrometer analogue 175 - 200 mm"

Thread micrometer 175 - 200 mm

- non-rotating spindle
- for screw inserts Ø = 5 mm
- with setting standard (175 x 60°)
- analogue, reading 0,01 mm
- with friction ratchet
- in case/box
- delivery without thread inserts

Range 175 - 200 mm

Accuracy:	0,014 mm
Range:	175 - 200 mm
Reading:	0,01 mm
Type:	Thread micrometer, analogue, with ratchet friction timble

Technical Data

Messbereich mm Range mm	Genauigkeit mm Accuracy mm	C mm	L mm	Einstellmaß mm Standard mm
175 - 200	0,014	107	209	175 x 60°

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.

Accessories

Thread inserts 14 - 10 TPI angle 55°

Thread inserts 14 - 10 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 14 - 10

€17.64*

Stock: 4

Thread inserts 10 - 7 TPI angle 55°

Thread inserts 10 - 7 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 10 - 7

€17.64*

Stock: 9

Thread inserts set 60 - 3,5 TPI angle 55°

Thread inserts set 60 - 3,5 TPI 55° - set, 10 pairs (Order-No. 309.098.0 - 309.098.9) - Whitworth thread inserts, shank 5 mm Size TPI (Threads Per Inch): 60 - 3,5

€169.80*

Stock: 5

Thread inserts 5,5 - 7,0 mm metric angle 60°

Thread inserts 5,5 - 7,0 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 5,5 - 7,0

€17.82*

Stock: 13

Thread inserts 1,0 - 1,75 mm metric angle 60°

Thread inserts 1,0 - 1,75 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 1,0 - 1,75

€17.82*

Stock: 12

Thread inserts 2,0 - 3,0 mm metric angle 60°

Thread inserts 2,0 - 3,0 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 2,0 - 3,0

€17.82*

Stock: 6

Thread inserts set 0,4 - 7,0 mm metric angle 60°

Thread inserts set 0,4 - 7,0 mm metric - set, 6 pairs (Order-No. 309.090.1 - 309.090.6) - metric thread inserts, angle 60°, shank 5 mm Size mm: 0,4 - 7,0

€92.40*

Stock: 1

Thread inserts 60 - 48 TPI angle 55°

Thread inserts 60 - 48 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 60 - 48

€17.64*

Stock: 7

Thread inserts 48 - 40 TPI angle 55°

Thread inserts 48 - 40 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 48 - 40

€17.64*

Stock: 3

Thread inserts 40 - 32 TPI angle 55°

Thread inserts 40 - 32 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 40 - 32

€17.64*

Stock: 5

Thread inserts 32 - 24 TPI angle 55°

Thread inserts 32 - 24 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 32 - 24

€17.64*

Stock: 4

Thread inserts 24 - 18 TPI angle 55°

Thread inserts 24 - 18 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 24 - 18

€17.64*

Stock: 4

Thread inserts 18 - 14 TPI angle 55°

Thread inserts 18 - 14 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 18 - 14

€17.64*

Stock: 4

Thread inserts 7 - 4,5 TPI angle 55°

Thread inserts 7 - 4,5 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 7 - 4,5

€17.64*

Stock: 11

Thread inserts 4,5 - 3,5 TPI angle 55°

Thread inserts 4,5 - 3,5 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 4,5 - 3,5

€17.64*

Stock: 8

Thread inserts 0,4 - 0,5 mm metric angle 60°

Thread inserts 0,4 - 0,5 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 0,4 - 0,5

€17.82*

Stock: 4

Thread inserts 0,6 - 0,9 mm metric angle 60°

Thread inserts 0,6 - 0,9 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 0,6 - 0,9

€17.82*

Stock: 1

Thread inserts 3,5 - 5,0 mm metric angle 60°

Thread inserts 3,5 - 5,0 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 3,5 - 5,0

€17.82*

Stock: 2

Certification for thread micrometer range > 100 - 200 mm

Certification thread micrometer range > 100 - 200 mm - for analog and digital thread micrometer range >100 - 200 mm- the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard

€52.80*

Stock: 0
