Digital thread micrometer 0 - 25 mm with ratchet
€177.00*
Available, delivery time: 1-3 workdays
Product information "Digital thread micrometer 0 - 25 mm with ratchet"
Digital thread micrometer 0 - 25 mm
- non-rotating spindle
- for screw inserts Ø = 5 mm
- with ratchet
- display with on/off, abs/inc, unit and set button
- reading 0,001 mm or 0,00005"
- with data output RB 4.1
- in case/box
- delivery without thread inserts
Range 0 - 25 mm
| Accuracy: | 0,008 mm |
|---|---|
| Data output: | RB 4.1 |
| Range: | 0 - 25 mm |
| Reading: | 0,001 mm |
| Type: | digital, Thread micrometer, with ratchet |

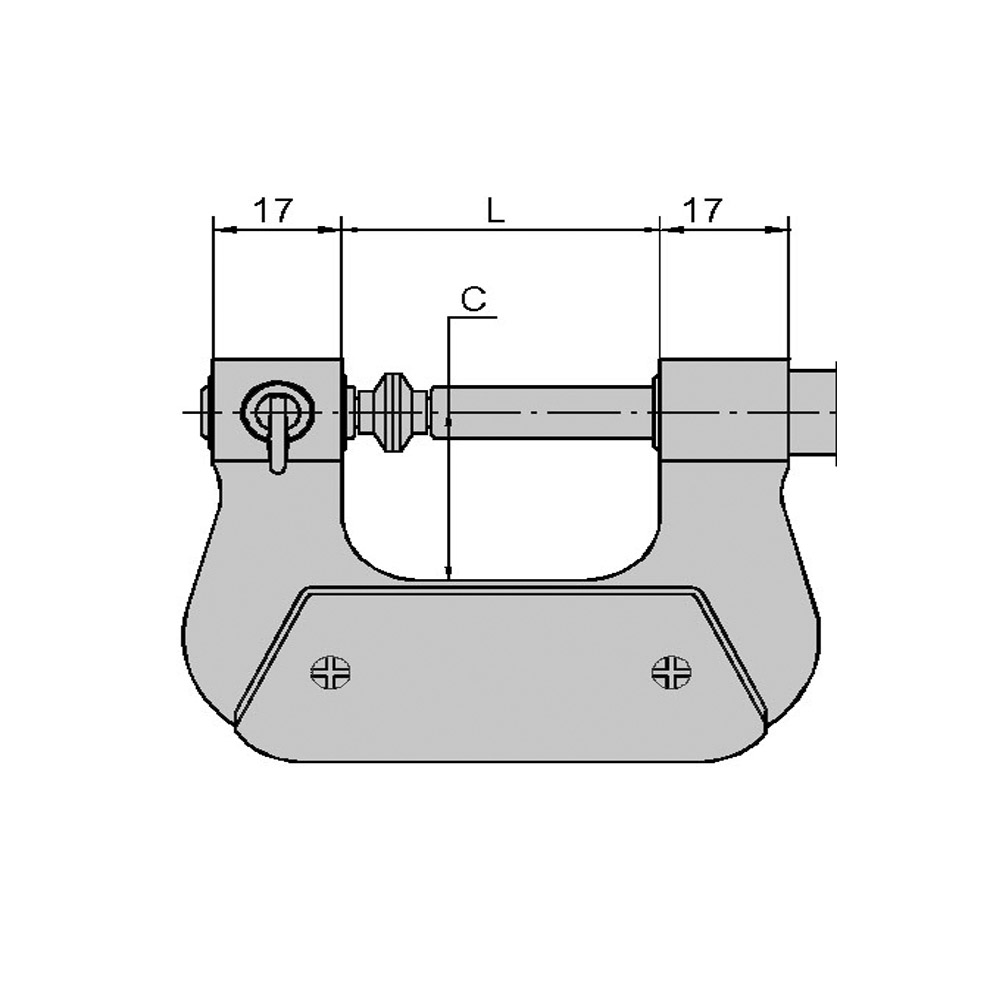

Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |
C mm | L mm | Einstellmaß mm Standard mm |
| 0 - 25 | 0,008 | 26 | 42 | - |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Thread inserts 14 - 10 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 14 - 10
Thread inserts 10 - 7 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 10 - 7
Thread inserts set 60 - 3,5 TPI 55° - set, 10 pairs (Order-No. 309.098.0 - 309.098.9) - Whitworth thread inserts, shank 5 mm Size TPI (Threads Per Inch): 60 - 3,5
Thread inserts 5,5 - 7,0 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 5,5 - 7,0
Thread inserts 1,0 - 1,75 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 1,0 - 1,75
Thread inserts 2,0 - 3,0 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 2,0 - 3,0
Thread inserts set 0,4 - 7,0 mm metric - set, 6 pairs (Order-No. 309.090.1 - 309.090.6) - metric thread inserts, angle 60°, shank 5 mm Size mm: 0,4 - 7,0
Thread inserts 60 - 48 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 60 - 48
Thread inserts 48 - 40 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 48 - 40
Thread inserts 40 - 32 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 40 - 32
Thread inserts 32 - 24 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 32 - 24
Thread inserts 24 - 18 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 24 - 18
Thread inserts 18 - 14 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 18 - 14
Thread inserts 7 - 4,5 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 7 - 4,5
Thread inserts 4,5 - 3,5 TPI 55° - Whitworth thread inserts, shank 5 mm - angle 55°, delivery pairwise Size TPI (Threads Per Inch): 4,5 - 3,5
Thread inserts 0,4 - 0,5 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 0,4 - 0,5
Thread inserts 0,6 - 0,9 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 0,6 - 0,9
Thread inserts 3,5 - 5,0 mm metric - metric thread inserts, angle 60°, shank 5 mm - delivery pairwise Size mm: 3,5 - 5,0
Certification thread micrometer until range 25 mm - for analog and digital thread micrometer until range 25 mm- the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
