Measuring insert with flat measuring faces 2 x 0,4 mm for groove measurement

Skip image gallery
Measuring insert with flat measuring faces 2 x 0,4 mm for groove measurement
Technical drawing Measuring insert with flat measuring faces 10 x 1,5 mm for groove measurement
Measuring insert with flat measuring faces 10 x 1,5 mm for groove measurement
Measuring insert with flat measuring faces 2 x 0,4 mm for groove measurement
Technical drawing Measuring insert with flat measuring faces 10 x 1,5 mm for groove measurement
Measuring insert with flat measuring faces 10 x 1,5 mm for groove measurement

€26.34*

€31.34 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 240.212
Customs tariff number 9017 3000
European Article Number 4054469113098
Weight 0,04 kg
Stock: 8

Related links:
Request Item

Product information "Measuring insert with flat measuring faces 2 x 0,4 mm for groove measurement"

Measuring insert with flat measuring faces 2 x 0,4 mm

- with flat measuring faces for groove measurement
- specially for digital universal caliper Art.-Nr. 240.201-240.204
- made of stainless steel
- delivery pairwise

Range inside: 7 - X
Range outside: 9 - X

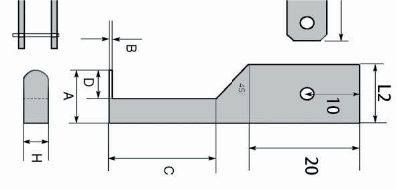

Technical Data

Innen mm
Inside mm		 Außen mm
Outside mm		 A mm B mm C mm D mm L2 mm Lmm
7 - X 9 - X 3,5 0,4 16 2 8 43

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
