Measuring insert with flat measuring faces 10 x 1,5 mm for groove measurement

Messwelt

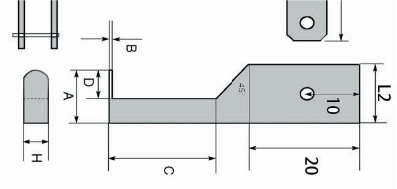

Technical drawing Measuring insert with flat measuring faces 10 x 1,5 mm for groove measurement

€39.54*

€47.05 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 240.215

Customs tariff number 9017 3000

European Article Number 4054469113128

Weight 0,1 kg

Stock: 16

Related links:

Request Item

Product information "Measuring insert with flat measuring faces 10 x 1,5 mm for groove measurement"

Measuring insert with flat measuring faces 10 x 1,5 mm

- with flat measuring faces for groove measurement
- specially for digital universal caliper Art.-Nr. 240.201-240.204
- made of stainless steel
- delivery pairwise

Range inside: 44 - X
Range outside: 0 - X

Technical Data

Innen mm Inside mm	Außen mm Outside mm	A mm	B mm	C mm	D mm	L2 mm	Lmm
44 - X	0 - X	22	1,5	80	10	12	100

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
